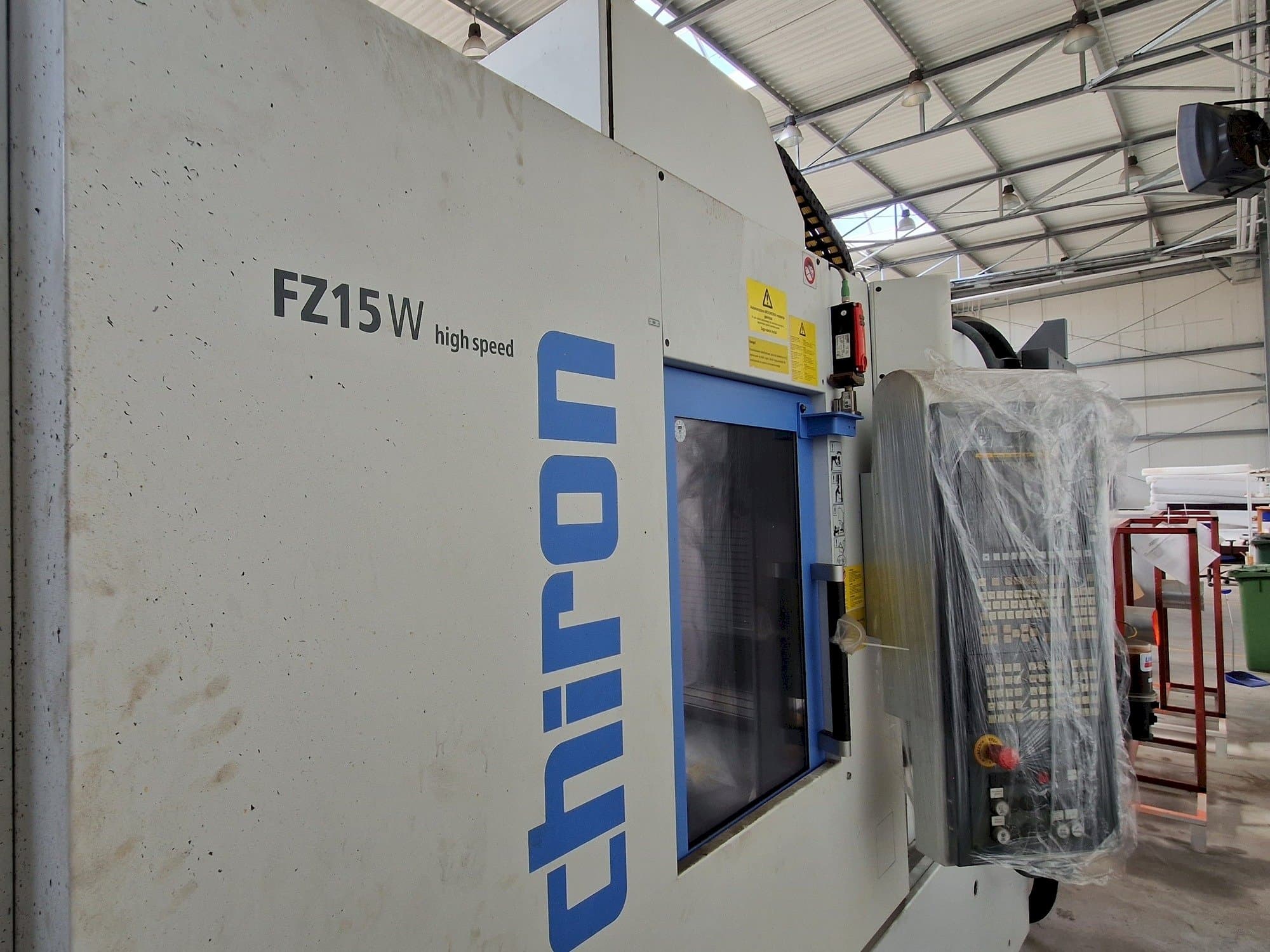

Left side view of CHIRON FZ15 W HS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHIRON FZ15 W HS

Photo Gallery

CHIRON - FZ15 W HSPL-MIL-CHI-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHIRON FZ15 W HS Vertical Machining Center

Show in original language

This CHIRON FZ15 W HS Vertical Machining Center was manufactured in the year 2019 in Germany and has only 28 working hours. It is equipped with a FANUC 31i-B5 control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: CHIRON
year: 2019
MODEL: FZ15 W HS
production hours: 28
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON FZ15 W HS

General Data

Machine weight: 8000 kg

Control Unit

Brand: FANUC
Model: 31i-B5

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 15 kw
Number of axis: 5

Movement

X-AXIS Movement: 550 mm
X-AXIS Rapid traverse: 75 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 75 m/min
Z-AXIS Movement: 425 mm
Z-AXIS Rapid traverse: 75 m/min

Table

Outer length: 2660 mm
Outer width: 400 mm
Max distance between vertical spindle and table: 240 mm
Table load: 300 kg

Tools

Number of stations: 20
Max tool diameter: 175 mm
Max tool length: 300 mm
Type of tool holder: HSK-A 63 DIN 69893

Media

Main electronic connection: 400V / 50Hz
Power consumption: 16 kva

Additional Information

Machine Benefits

Technical Machine Benefits

Workpiece changing device: 0 / 180°
Single spindle headstock
Spindle torque max: 95 nm
5 axis path control / 10. 4” color screen
Single lamp for 3 signals
Flashing gun
Oil free maintenance unit
Cooling system
Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
