➤ Used CMZ TTL-66-66-T1Y-T2Y Lathe For Sale | gindumac.com

Show in original language

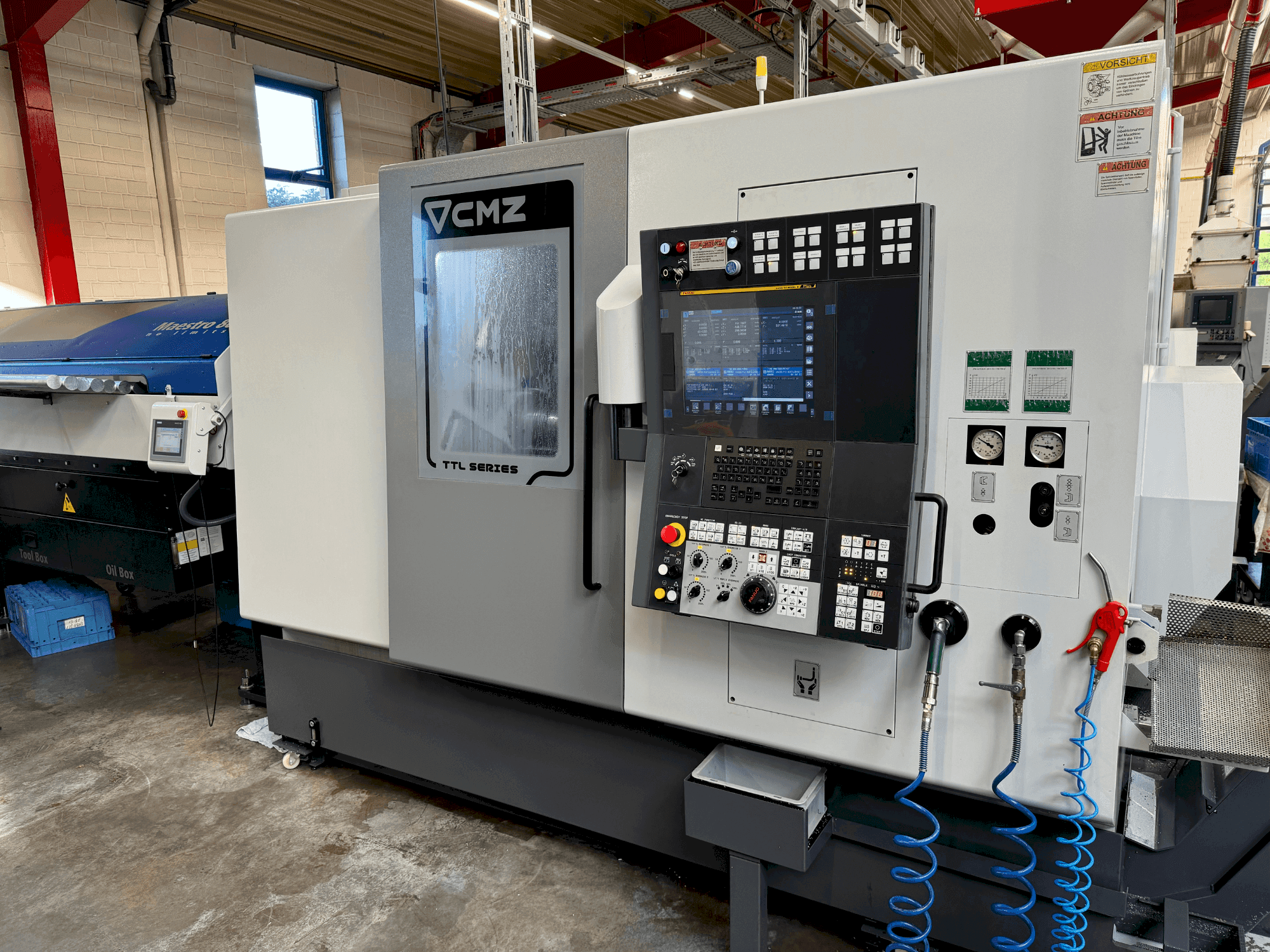

This 3-axis CMZ TTL-66-66-T1Y-T2Y lathe was manufactured in 2022. It features a maximum rod diameter of 66mm, turning diameter up to 220mm, and main spindle power of 35Kw. The machine includes a 70 bar high-pressure system with a filter system and an additional tank. A second identical machine is also available from 2022. For more information about this lathe, please reach out to us.

Overview

brand: CMZ
year: 2022
MODEL: TTL-66-66-T1Y-T2Y
application type: Turning
Location: Germany
machine type: Multi-Spindle Turning Machine

Technical Information - CMZ TTL-66-66-T1Y-T2Y

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 35 kW
Number of axis: 9

Additional Information

Additional equipment

Machine language: German / Machine manuals available for download in pdf format / G codes type A in Fanuc control / LPS for left spindle
Reduction tube for left spindle / 3 jaw power chuck SMW-Autoblock BB-D 210 Ø66 for left spindle with one set of soft jaws / Collet chuck Hainbuch AXFIX 65 (mini) 10794/0003 for left spindle
Changing device Hainbuch diam. 65 / LPS system in right spindle / Tailstock on the right spindle (long version) for moving tailstock center CM 3 (not included in the option) / clamping pressure for right spindle; selectable via M function
3 jaw power chuck SMW-Autoblok BBD 175 Ø56 for right spindle with one set of soft jaws / Collet chuck Hainbuch AXFIX 65 (mini) 10794/0003 for right-hand spindle / Tool presetter (tool presetter) / Lateral chip conveyor (standard version)
Coolant system consisting of two coolant pumps up to 70 bar, one for each turret, independently adjustable to 70-60-50-40-30-10 bar, mounted on an additional tank of 330 liters, as well as a filter system of 10µm.
Coolant washing nozzle / Machine status light / Tool life monitoring (tool life management) / Tool load monitoring
Programmable, automatic parts catcher (pneumatic) / The workpiece remover is equipped with a collecting tray that opens and closes pneumatically to remove the workpiece.
Coolant supply through right-hand spindle
Optional: Cucchi Giovanni Typ DB EVO70 loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
