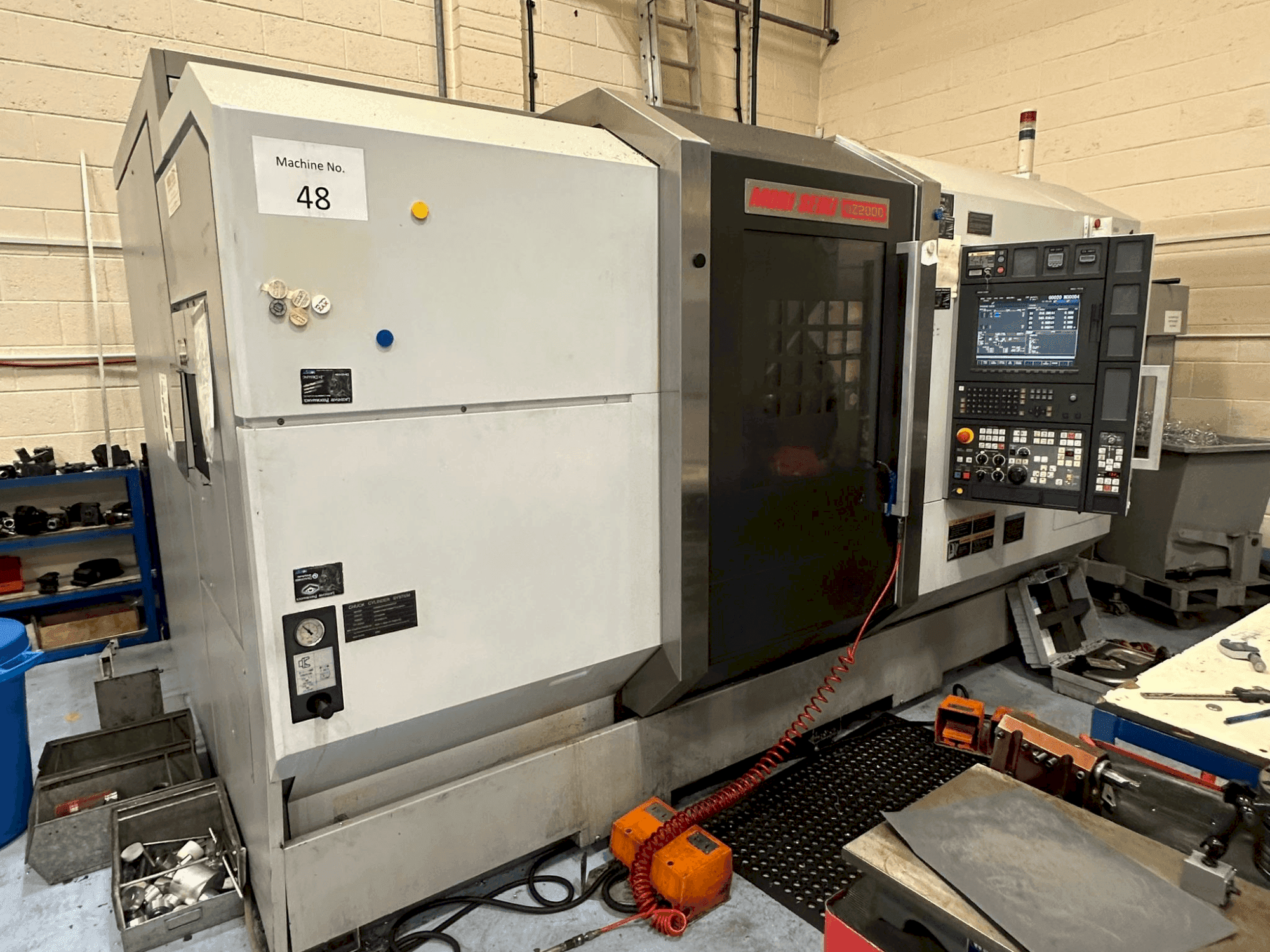

MORI SEIKI - NZ2000ES-TUR-MOR-2008-00003

Additional equipment

• - Automatic Conversational Programming System: Mapps 4
• - Automatic Effort Control and Tool Consumption Monitoring
• - Oil Cooler for Both Spindles
• - Double Pedal for Chuck Opening and Closing
• - Interface for Bar Feeder Installation
• - Automatic Rear Part Catcher (Special Clamp for Long Parts)
• - Side Chip Conveyor (Hinged Type)
• - Communication Ports: USB, PCMCIA Card, RS-232
• - Includes Electrical Transformer, Documentation, Parts List, Electrical Schematics, Programming, and Operation Manual

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - C-axis resolution: 0. 001°
  • - Maximum swing diameter: 320 mm // maximum bar diameter: 65 mm
  • - Two overlapping turrets // both turrets with 16 stations each, all motorized // possibility of setting up to 32 tools per turret
  • - Maximum distance between main spindle and sub-spindle: 1130 mm
  • - Sub-spindle speed: 5000 rpm // live tool speed: 6000 rpm
  • - Spindle size: a2-6
  • - Cutting torque: 340 nm
  • - Milling motor power: 7. 5 kw
  • - Turning length: 810 mm
  • - Maximum bar diameter: 65 mm
