DAEWOO ACE V-35

Photo Gallery

DAEWOO - ACE V-35EE-MIL-DAE-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

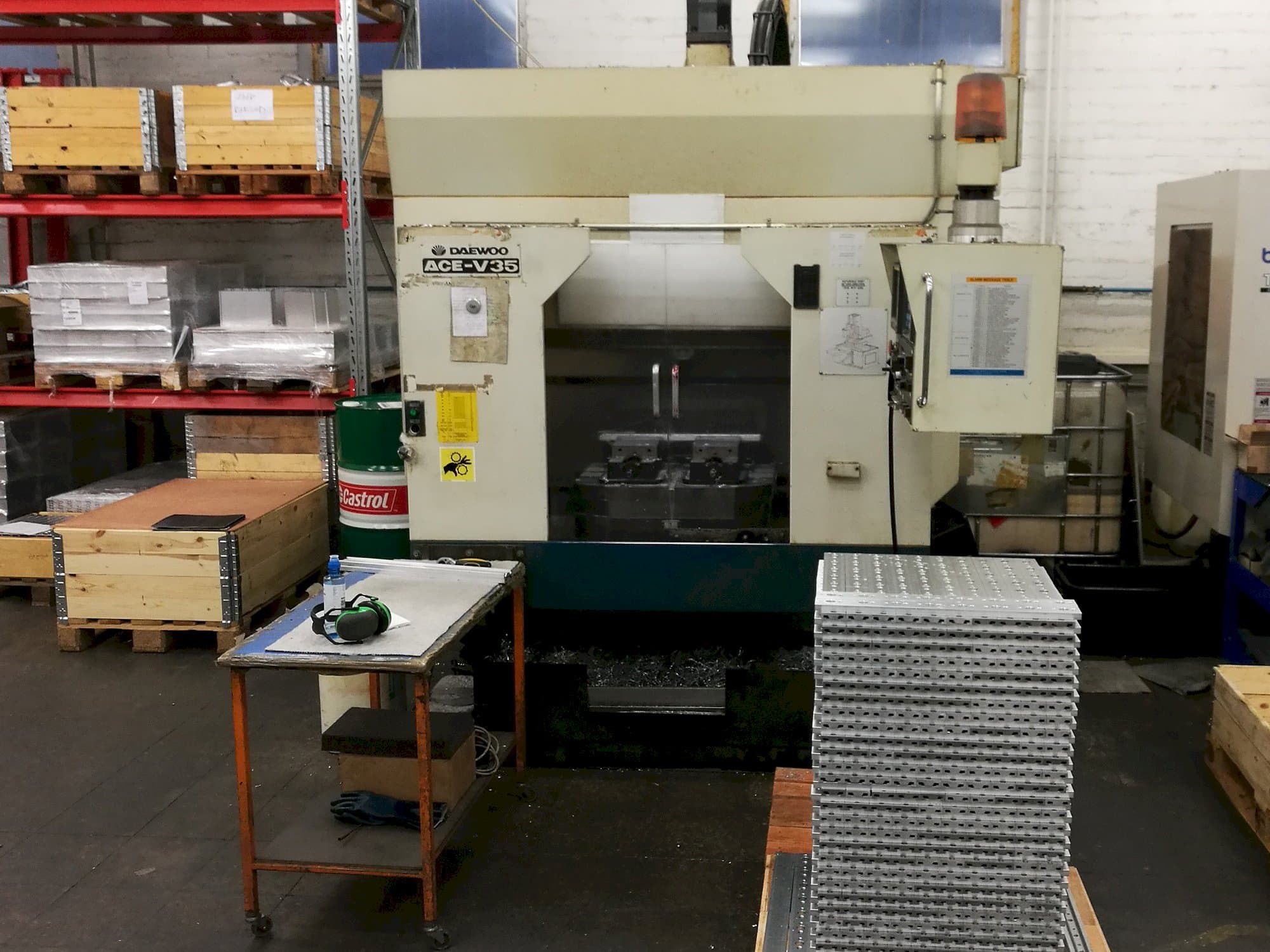

DAEWOO ACE V-35 Vertical Machining Center

Show in original language

This DAEWOO ACE V-35 Vertical Machining Center was built in 1995 in South Korea and has a production history of 6757 hours. Operated through a FANUC Series O-M Control unit, this versatile machine has mainly worked with aluminium and plastic during the past. It has a spindle speed range of 60-6000 rpm and a motor capacity of 70-7000 rpm. 18 tool holders are included within the price. Must be noted that 2 solenoids need to be replaced.

Overview

brand: DAEWOO
year: 1995
MODEL: ACE V-35
production hours: 6757
application type: Milling
Location: Estonia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DAEWOO ACE V-35

General Data

Measurements width: 2200 mm
Measurements depth: 3550 mm
Measurements height: 2900 mm
Machine weight: 5500 kg

Control Unit

Model: Series O-M
CNC main language: English
Brand: FANUC

Main drive

Spindle speed range: 60-6000 rpm 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 460 + 110 mm

Workpiece

Workpiece weight: 300 kg

Media

Main electronic connection: 220 V / 60 Hz
Power consumption: 60 A

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
