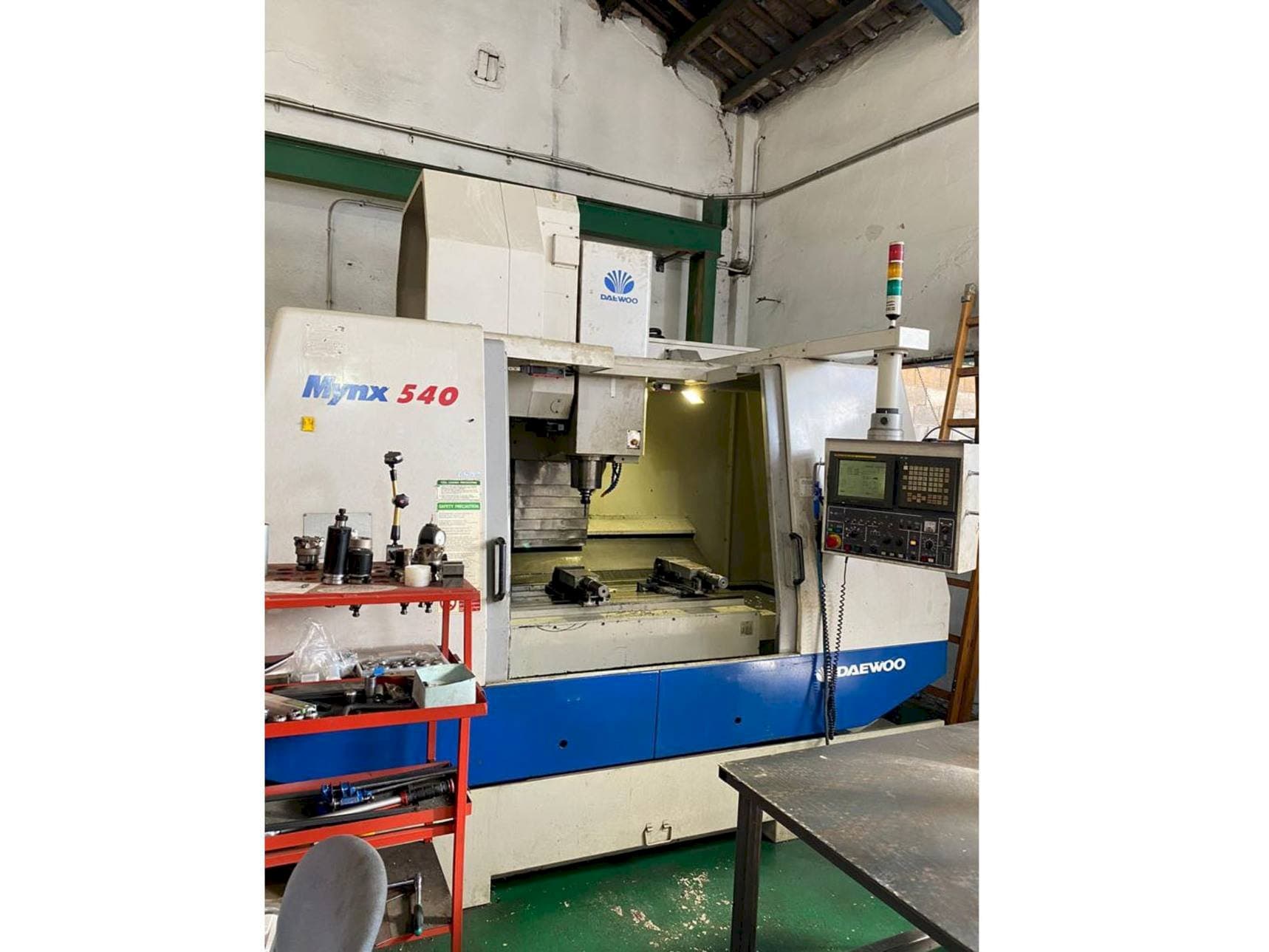

Front view of DAEWOO Mynx 540 machine
Front view of DAEWOO Mynx 540 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DAEWOO - Mynx 540ES-MIL-DAE-2002-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DAEWOO Mynx 540 Vertical Machining Center was manufactured in 2002. Equipped with a Fanuc 21 iM digital Control unit. This machine can operate with a spindle speed range 40 - 8000 rpm. The machining center has 3 axes, but includes a Nikken rotary table, with this rotary table has 4 axes. It has been overhauled in the last few months, it has replaced the tool change encoder and the 3 coolant pumps and it has changed the bed turcite and the grinding of the bed.

Overview

  • brand: DAEWOO
  • year: 2002
  • MODEL: Mynx 540
  • production hours: 52504
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: FANUC

Technical Information - DAEWOO Mynx 540

Control Unit

  • Model: 21 iM digital
  • Brand: FANUC

Main drive

  • Number of spindles: 1
  • Spindle speed range: 40 - 8000 1/MIN
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1020 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 625 mm

Workpiece

  • Workpiece weight: 800 Kg

Table

  • Outer length: 1200 mm
  • Outer width: 500 mm
  • Number of tslots: 5

Tools

  • Slots in storage: 30+1
  • Max weight: 8 Kg
  • Max tool length: 180 mm
  • Type of tool holder: BT 40

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Nikken 4º axis

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X = 1020
        • - Internal cooling (20 bar)
        • - 4ºaxis
      • Qualitative Machine Benefits:
        • - Change of turcite of bench
        • - Bench grinding and scraping
        • - Head straps change
        • - Tool changer encoder change
        • - Repair and replacement of the 3 coolant pumps
        • - Replaced high pressure coolant pump
        • - Preloaded spindles
        • - New greasers and greasing system
