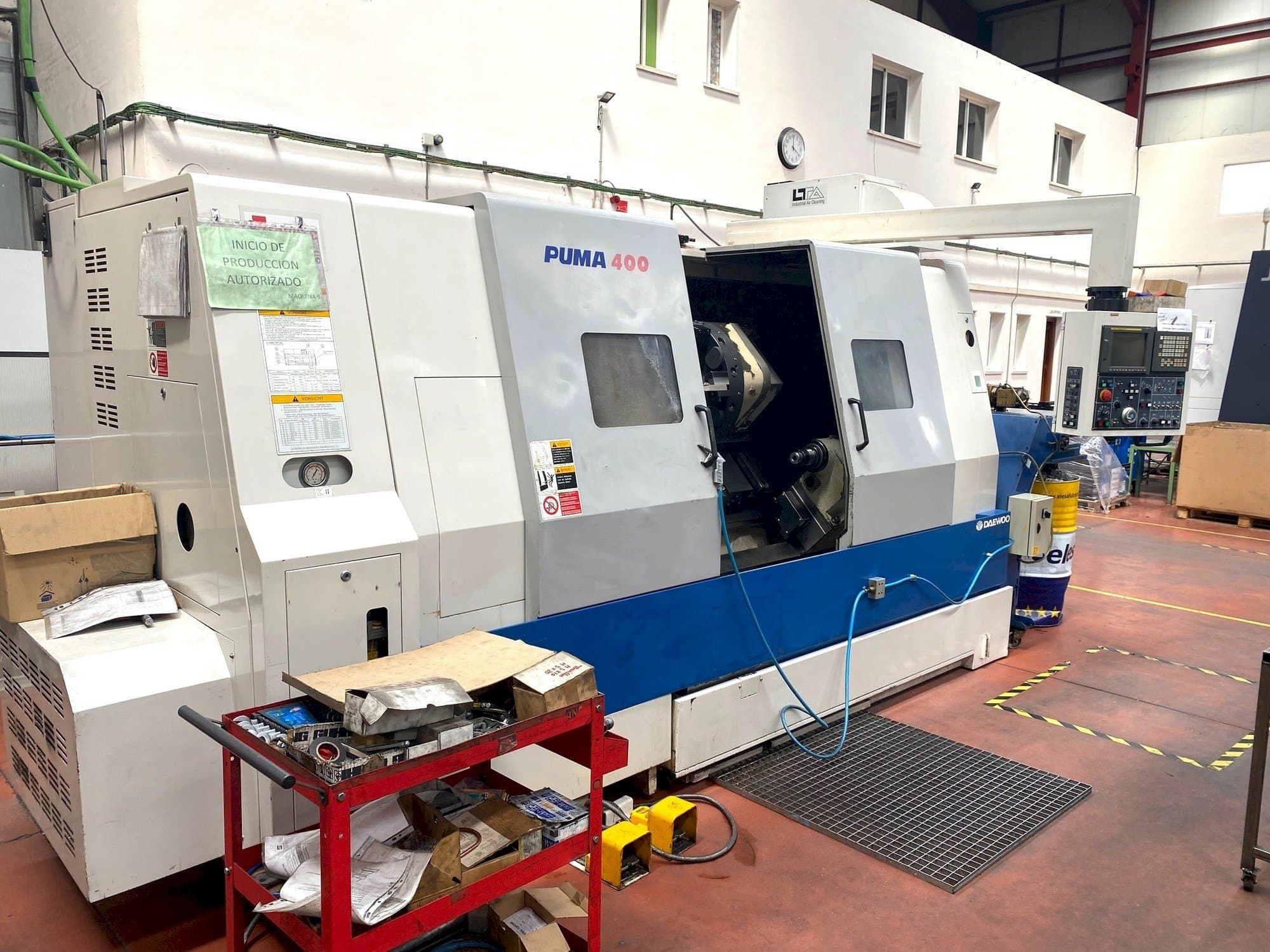

This DAEWOO PUMA 400 Lathe was built in the year 2002. It is operated through a FANUC Series 18i-T control unit. This 2 axis machine incorporates a spindle speed up to 2000 rpm and a turning length 1050 mm. It includes an hydraulic bi-directional turret and a platter opening and closing pedal. This machine is in good condition.

Overview

brand: DAEWOO
year: 2002
MODEL: PUMA 400
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO PUMA 400

General Data

Measurements width: 4216 MM
Measurements depth: 2387 MM
Measurements height: 2260 MM
Machine weight: 9750 KG

Control Unit

Model: Series 18i-T
Brand: FANUC

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 26 KW
Number of axis: 2

Workpiece

Workpiece drm: 560 MM
Workpiece x: 362 MM
Workpiece z: 1105 MM

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional equipment

- Platter opening and closing pedal
- Hydraulic bi-directional turret

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter max. : 560 mm
- - Turning length max. : 1050 mm
- - Distance between centers: 117 mm
- - Turning diameter max. : 480 mm
- - Turning diameter over bed: 700 mm
- - Plate diameter: 362 mm
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
