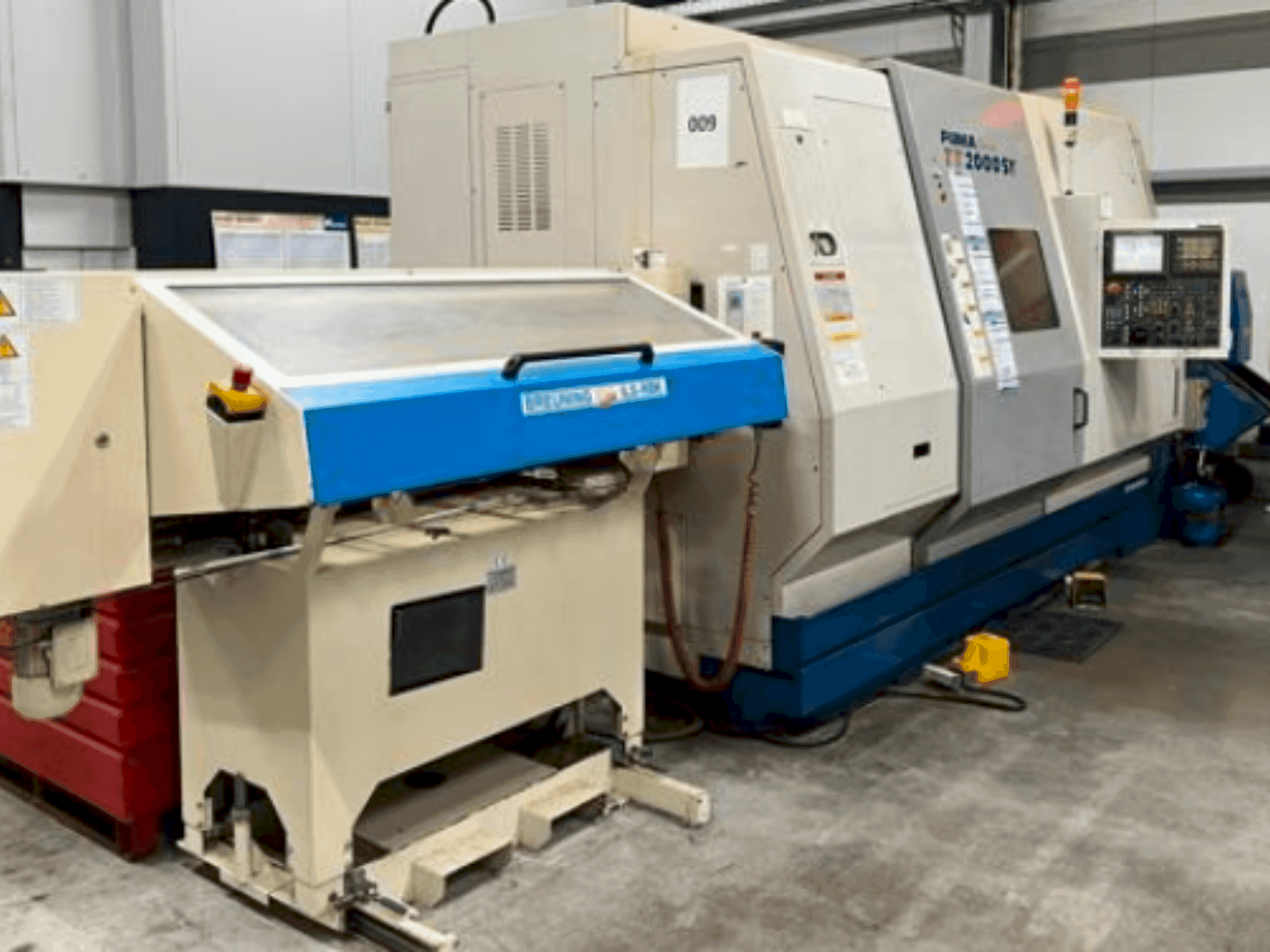

DAEWOO - PUMA TT 2000 SYDE-TUR-DAE-2005-00001

Additional equipment

• - Measuring Probe: Tool Measuring Probe
• - Automatic Bar Loader: ILS-RBK10016 L 2265 mm, W 1116 mm, Approx. 490 kg
• - Bar Loader Max. Material Length/Diameter: 1600 mm/5-65 mm
• - Magazine Short Bar Feed with Servo Drive
• - Main and Counter Spindle with Power Chuck D = 250
• - Enclosed Work Area Enclosure According to Accident Prevention Regulations
• - Memory Card Input Socket, RS 232 Socket
• - Tool Load Monitoring, Bed Flushing
• - Workpiece Air Blow-off Function
• - Automatic Tool Measuring Probe // Driven Tools on Both Revolvers

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Chuck size (both spindles): 250 mm
  • - Chuck force (both spindles): hydraulic 5-40 bar
  • - Max. Turning diameter: approx. 390 mm / approx. 315 mm
  • - Max. Workpiece length: 740 mm
  • - Max. Bar diameter: 65 mm
  • - Total power requirement: 75 kva / 11 kw with transformer
  • - Regular maintenance has been performed

Extra information

• - Additional equipment Coolant System, Chip Conveyor, Automatic Parts Catcher with Conveyor Belt, Many Accessories Technical Documents and Installation Plan Available Tools Tool Turret: BTM65 Live Tools: Yes Tool Load Monitoring: Yes Tool Holder Diameter: 40 mm Motor for Live Tools: 7.5 kW Collet Size for Rotary Tools: ER32 (D=3-20 mm) Max. Rotary Tool Speed: 4000 rpm
