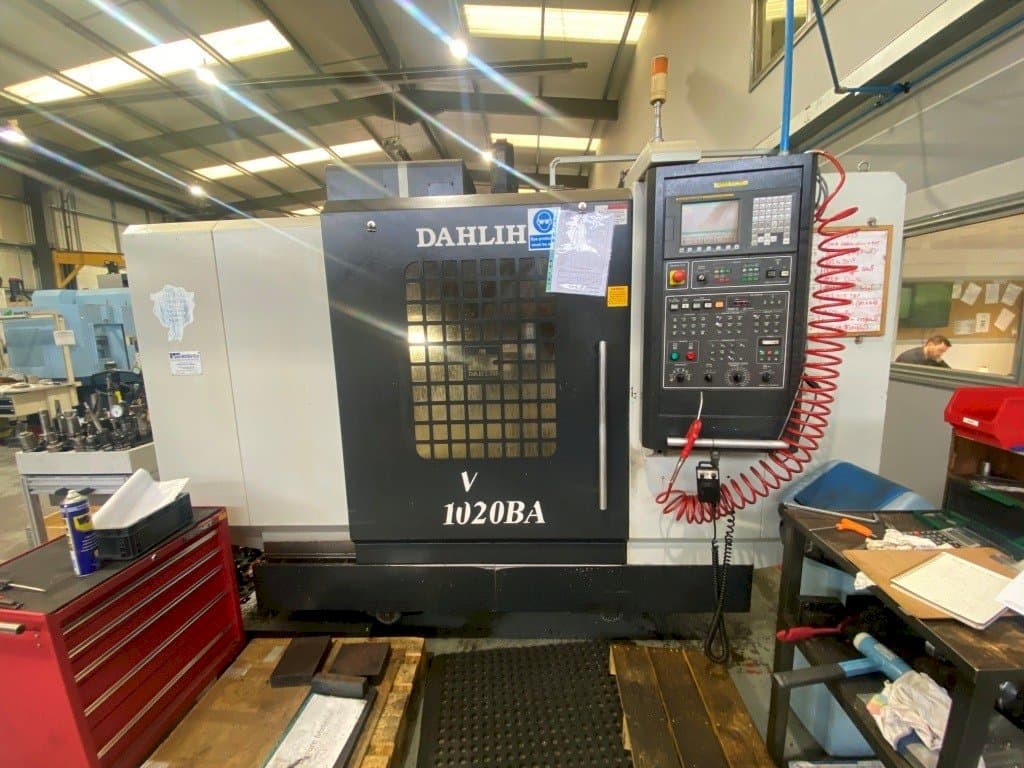

Front view of DAH LIH MCV 1020 BA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DAH LIH MCV 1020 BA

Photo Gallery

DAH LIH - MCV 1020 BAIE-MIL-DAH-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Dah Lih MCV 1020 BA Vertical Machining center

Show in original language

This Dah Lih MCV 1020 BA Vertical Machining center was manufactured in the year 2007 in Taiwan. It is equipped with a Fanuc Oi-MC control unit and has 4 axis. The machine has a spindle speed of 8000 rpm, is in very good condition and well maintained.

Overview

brand: DAH LIH
year: 2007
MODEL: MCV 1020 BA
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DAH LIH MCV 1020 BA

General Data

Measurements width: 3260 mm
Measurements depth: 3060 mm
Measurements height: 2665 mm
Machine weight: 6010 kg

Control Unit

Model: Oi-MC
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 560 mm
A-AXIS Movement: 360 mm

Table

Outer length: 1300 mm
Outer width: 660 mm
TSlots size: 5

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 127 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Main electronic connection: 380 V

Additional Information

Additional equipment

4th Axis with Chuck
