DAH LIH PT128 Universal machining center

Show in original language

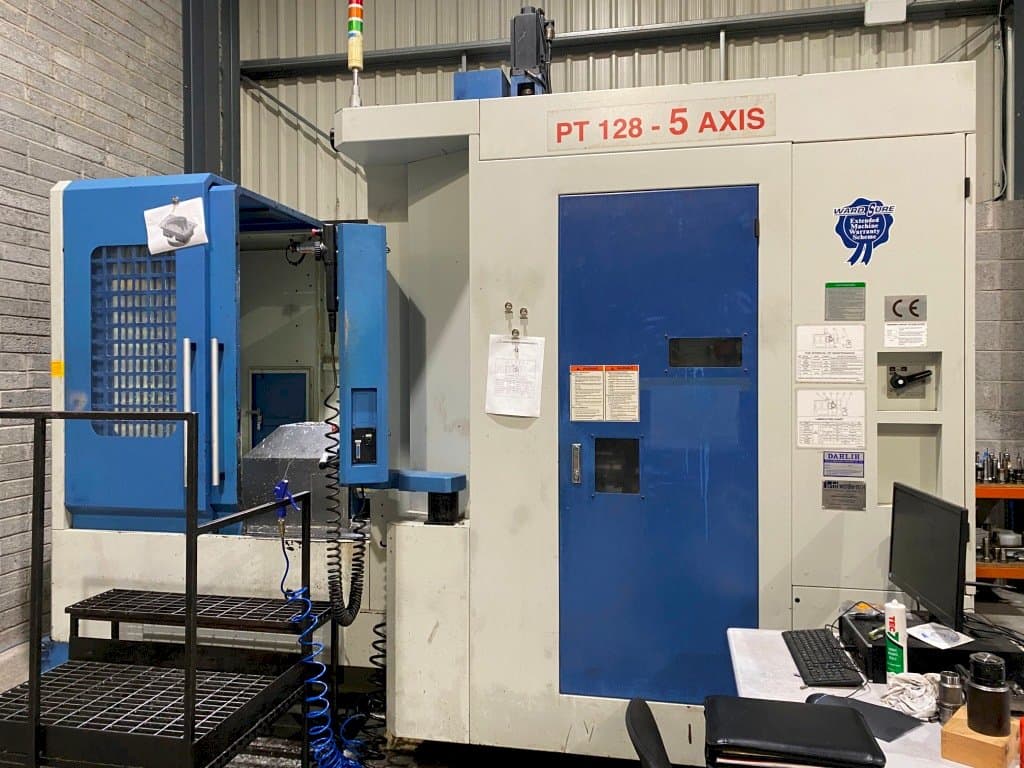

This DAH LIH PT128 Universal machining center was built in Taiwan in 2007. It is operated through a Heidenhain TNC 530 control unit. This 5 axis machine has a spindle speed up to 20000 rpm. Includes a selection of tool holders, MPG and a spindle chiller. It is in very good condition.

Overview

brand: DAH LIH
year: 2007
MODEL: PT128
application type: Milling
Location: Ireland
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DAH LIH PT128

General Data

Measurements width: 3830 mm
Measurements depth: 2935 mm
Measurements height: 3500 mm
Machine weight: 13500 KG

Control Unit

Model: TNC 530
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Tool taper: HSK 63A
Number of axis: 5

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 510 mm
A-AXIS Movement: +110 to -110 Deg
C-AXIS Movement: 360 Deg

Workpiece

Workpiece x: 1200 mm
Workpiece y: 800 mm
Workpiece z: 510 mm
Workpiece weight: 1600 KG

Table

Outer length: 1350 mm
Outer width: 800 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 40
Max weight: 7 KG
Max tool diameter: 135 mm
Max tool length: 300 mm
Type of tool holder: HSK63A

Media

Main electronic connection: 400V
Power consumption: 55 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Selection of Tool Holders
MPG
Spindle Chiller

Machine Benefits

Qualitative Machine Benefits

Machine in very good condition

Technical Machine Benefits

Simultaneous axis operation
40 place atc
X,y,z coolant through ballscrews
X,y,z linear guide ways
X,y,z linear scales

Machine History

Industries

Pump industry

End product

Pump parts

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
