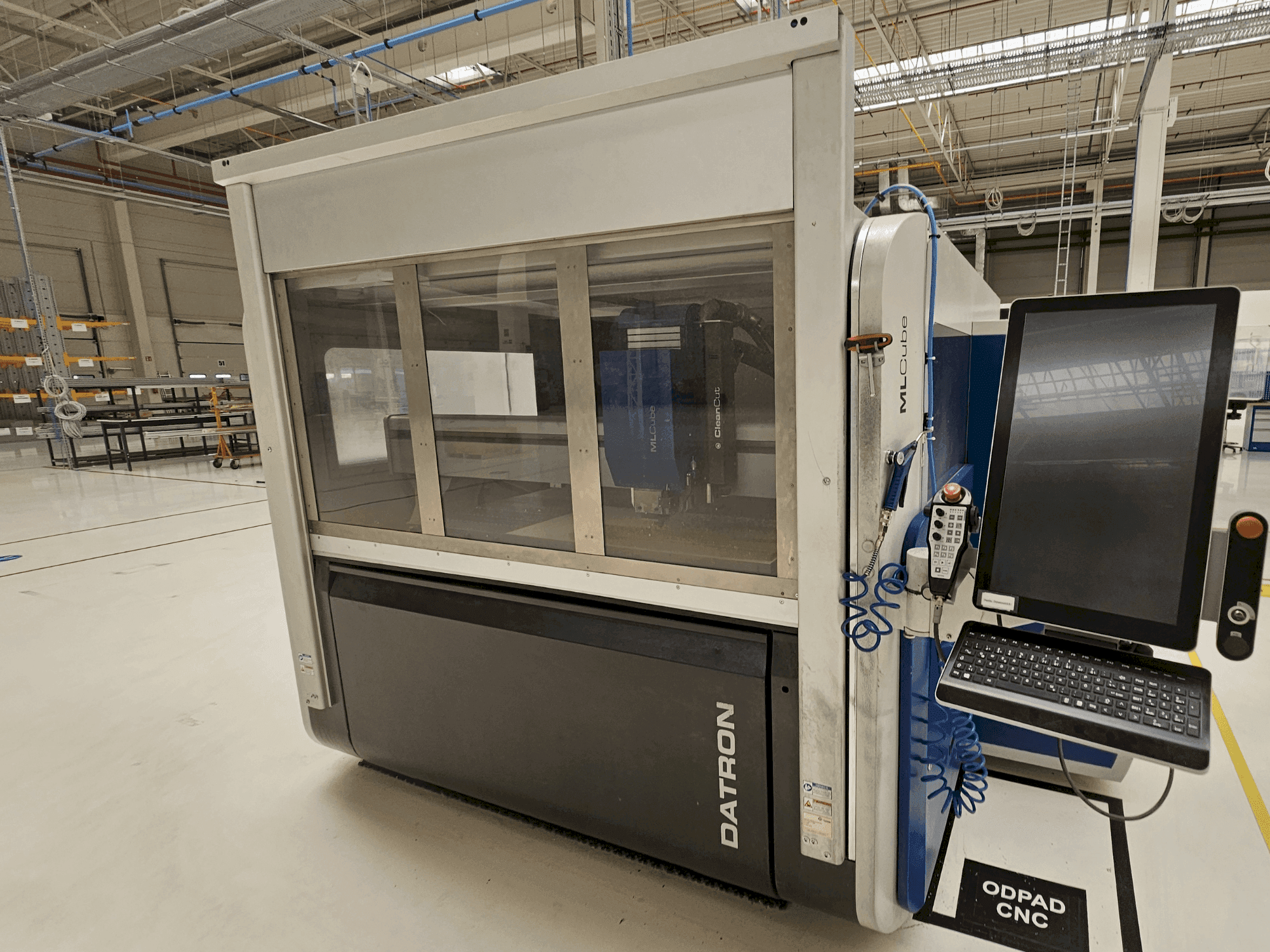

Datron - MLCube B LSPL-MIL-DAT-2019-00001

Additional equipment

• - Aluminum filtration unit
• - Options included: Automatic front door / Control DATRON next+ / CNC hand-held control unit 810-2
• - DATRON next Camera-Feature / DATRON next - Option package: Universal / HF spindle 4.0 kW, HSK-E25
• - Minimum-quantity cooling lubrication / Spray unit, 4 Nozzles / DATRON ToolAssist 143-fold
• - DATRON Tool length probe / Clamping set Tribos SVP-2 / Collet HSK-E25 - 12 pieces
• - High-precision probe Z TP-R / Vacuum distributor 6-fold Pro/ Vacuum pump, 250 cbm/h / Vacuum plate with meander-formed slots / DATRON CleanCut MLCube

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Brushless servo drives with absolute encoders
  • - Ball-screw spindles for each axis
  • - Minimum-quantity lubrication system
  • - Feed rate: up to 20 m/min
  • - Positioning feed: up to 20 m/min
  • - Tool magazine capacity: 78 tools // tool changer: hsk-e25
  • - Control system: datron next
  • - User-friendly hand-held unit
  • - With tool hanger: 1020 mm in y
  • - Portal passage: 200 mm

Extra information

• - Table Solid concrete polymer table with steel base Extremely rigid portal structure with double-sided Y drive and hidden guides Tapered Seat Integrated in the Table: Yes
