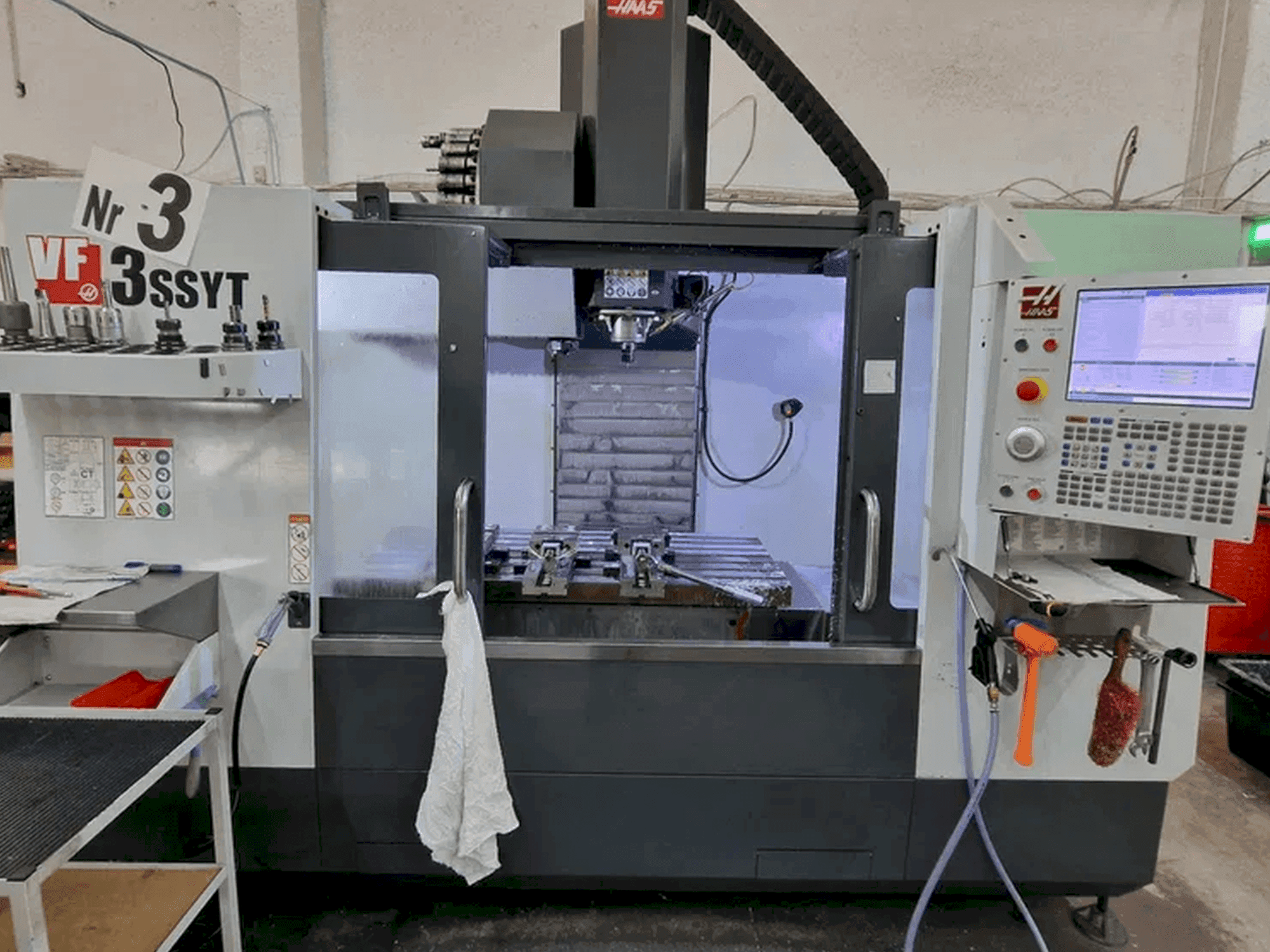

This 3-axis HAAS VF-3 SSYT was manufactured in 2019. Ideal for precision machining, this vertical machining center offers robust construction and high-speed capabilities. If you are looking to get high-quality milling capabilities, consider the HAAS VF-3 SSYT machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2019
MODEL: VF-3 SSYT
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-3 SSYT

Control Unit

Brand: HAAS
Model: NGC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 KW
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1372 mm
Outer width: 610 mm
Min distance between vertical spindle and table: 107 mm
Max distance between vertical spindle and table: 742 mm
Table load: 794 kg

Media

Chip conveyor: Yes

Additional equipment

- CNC control HAAS (NGC version), compatible with Fanuc
- ISO40 spindle taper, CT type
- HSM – High-Speed Machining
- Minimum quantity lubrication system (MQL)Minimum quantity lubrication system (MQL)
- Wireless probing system (includes SO, MACRO, COORD, and VPS)Wireless probing system (includes SO, MACRO, COORD, and VPS)
- Additional 25μm filtration system
- Through-spindle coolant (TSC) – high-pressure pump (21 bar, 22 l/min)
- Fourth and Fifth-axis drive and wiring

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 122. 0 nm @ 2000 rpmmaximum torque: 122. 0 nm @ 2000 rpmmaximum torque: 122. 0 nm @ 2000 rpm
- - Drive type: inline direct-drive
- - Tool changer: type: smtc 30+1 toolstool changer: type: smtc 30+1 tools

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
