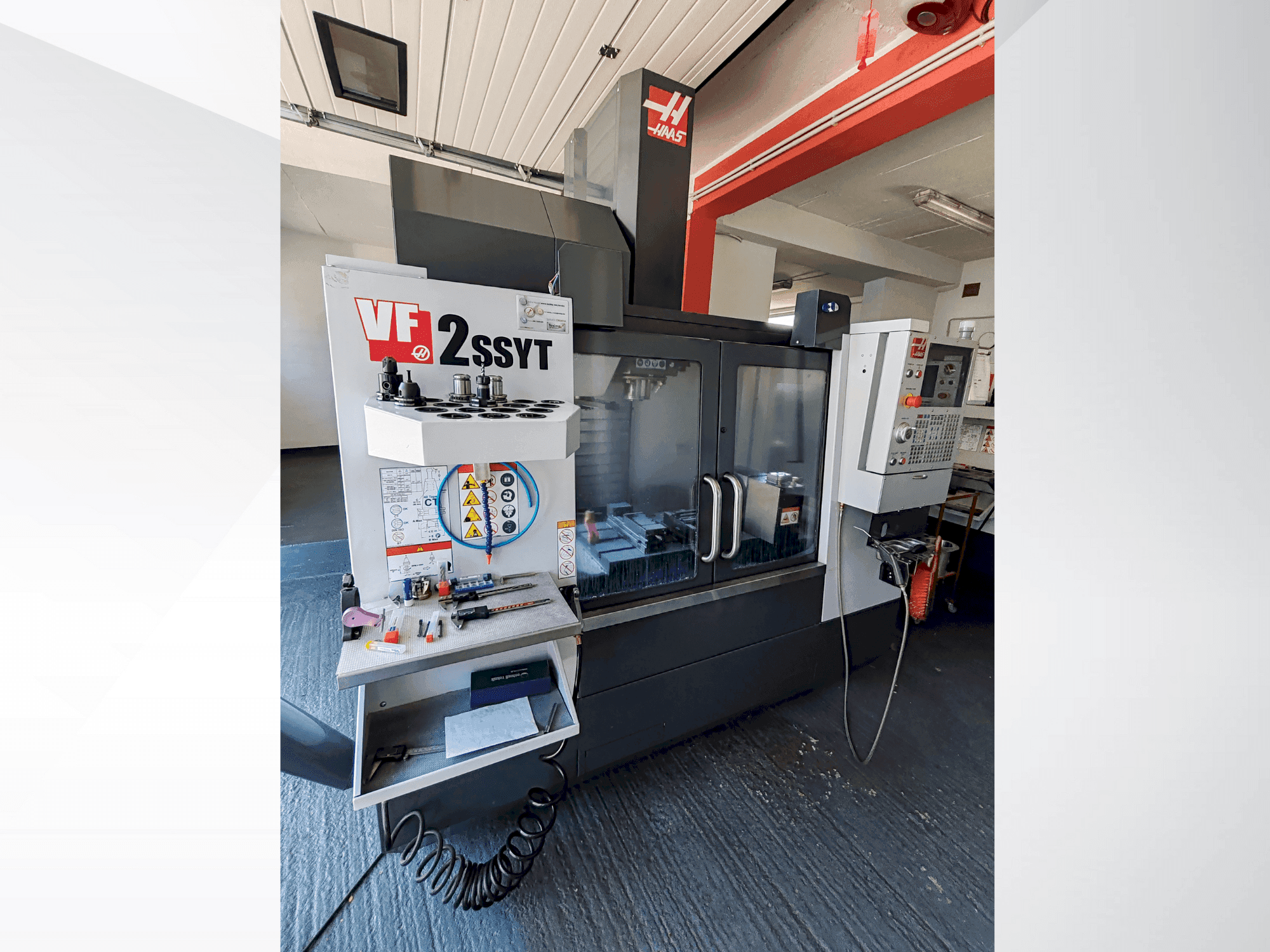

HAAS - VF 2 SS YTHR-MIL-HAA-2020-00001

Additional equipment

• - Type: Side-Mount (SMTC)/ Capacity: 30+1/ Max Tool Diameter (full): 64 mm/ Max Tool Diameter (adjacent empty): 127 mm/ Max Tool Length: 279 mm /Max Tool Weight: 5.0 kg
• - Tool-to-Tool (avg): 1.80 s/ Chip-to-Chip (avg): 2.40 s
• - Included: HRT210

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Torque: 122 nm at 2000 rpm
  • - Drive system: inline direct-drive
  • - Taper: bt40 / ct40 / hsk-a63
  • - Lubrication: air/oil injection/cooling: liquid-cooled
  • - Max cutting feedrate: 21. 2 m/min / rapids on x, y, z-axis: 35. 6 m/min
  • - Coolant tank capacity: 208 l / through-spindle coolant pressure: 21 bar / through-tool air blast: yes / chip auger: yes / chip tray filter kit: yes / window air blast: yes / coolant pump: multi-stage
  • - Air consumption: 113 l/min at 6. 9 bar / minimum air pressure: 5. 5 bar / air hose connection: 3/8 in
  • - Standard interface: ethernet and wifi / control memory: 1 gb / remote monitoring: haasconnect / high-speed machining: included / advanced tool management: included /media display (m130): included / power failure detection: included /safe run function: included / rigid tapping: included

Payment Terms

• Payment in advance

• Asset Financing
