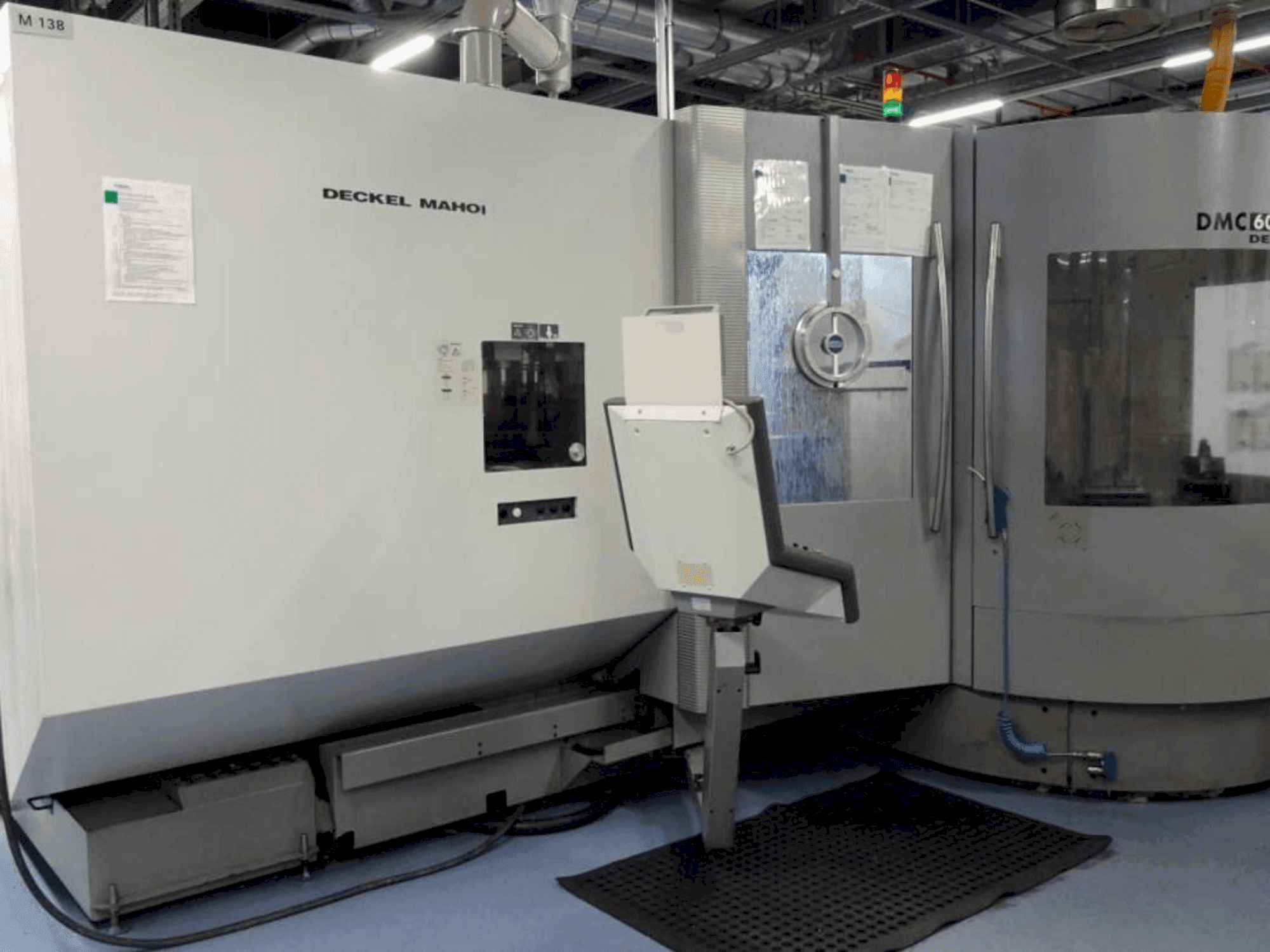

Front view of DECKEL DMC 60 T RS3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL DMC 60 T RS3

Photo Gallery

DECKEL - DMC 60 T RS3DE-MIL-DEC-2006-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL DMC 60 T RS3 For sale | gindumac.com

Show in original language

This 5-axis DECKEL DMC 60 T RS3 was manufactured in 2006. It features a HEIDENHAIN ITNC 530 control unit, a spindle speed range up to 18000 1/min, and a robust tool magazine with 180 tools HSK63. The machine dimensions are 5700 mm in width, 6500 mm in depth, and 2400 mm in height, weighing 9800 kg. Ideal for complex machining tasks, the DECKEL DMC 60 T RS3 machine we have for sale. Contact us for more information.

Overview

brand: DECKEL
year: 2006
MODEL: DMC 60 T RS3
production hours: 63996
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL DMC 60 T RS3

General Data

Measurements width: 6500 mm
Measurements depth: 5700 mm
Measurements height: 2400 mm
Machine weight: 9800 kg

Control Unit

Model: ITNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 rpm 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 780 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 560 mm

Tools

Number of index: 180

Media

Power consumption: 64.2 kW

Additional equipment

- Tool magazine with 180 tools (HSK63)
- Tool monitoring (external)
- Coolant tank with 980 liters volume

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tapper size: hsk 63a - din69893
- - Control model: itnc 530
- - Ikz (yes/no): yes, 40 bar
- - Tool places: 180
- - Pallet dimensions: 500 x 630 mm
- - Recommendations: manual / technical documentation available
Qualitative Machine Benefits:
- - All maintenance has been performed according to the manufacturer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
