DECKEL FP 4-60

Photo Gallery

DECKEL - FP 4-60DE-MIL-DEC-1993-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

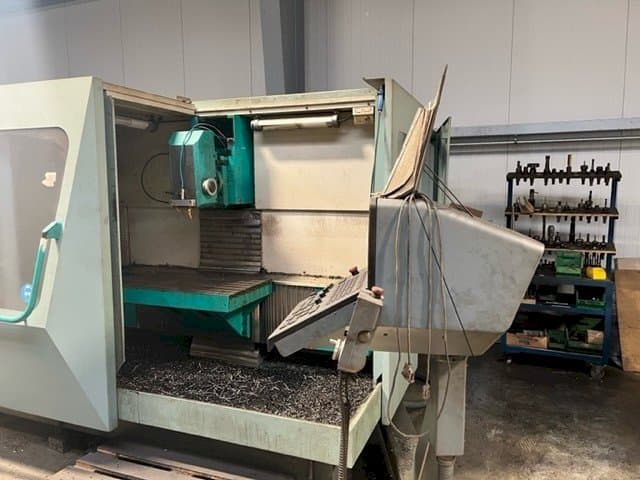

Deckel FP 4-60 Vertical Machining center

Show in original language

This Deckel FP 4-60 Vertical Machining Center was manufactured in the year 1993 in Germany. It is equipped with a Deckel Dialog 12 control unit and has 3 axis. The machine has a spindle speed of 31,5 - 5000 rpm.

Overview

brand: DECKEL
year: 1993
MODEL: FP 4-60
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - DECKEL FP 4-60

General Data

Measurements width: 3100 mm
Measurements depth: 2400 mm
Measurements height: 2200 mm
Machine weight: 4300 kg

Control Unit

Model: Dialog 12

Main drive

Spindle speed range: 31,5 - 5000 1/MIN
Spindle motor power: 10 kW
Tool taper: SK 40 / DIN 69871-A
Number of axis: 3

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
