DECKEL FP2A

Photo Gallery

DECKEL - FP2ADE-MIL-DEC-1989-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL FP2A For Sale | gindumac.com

Show in original language

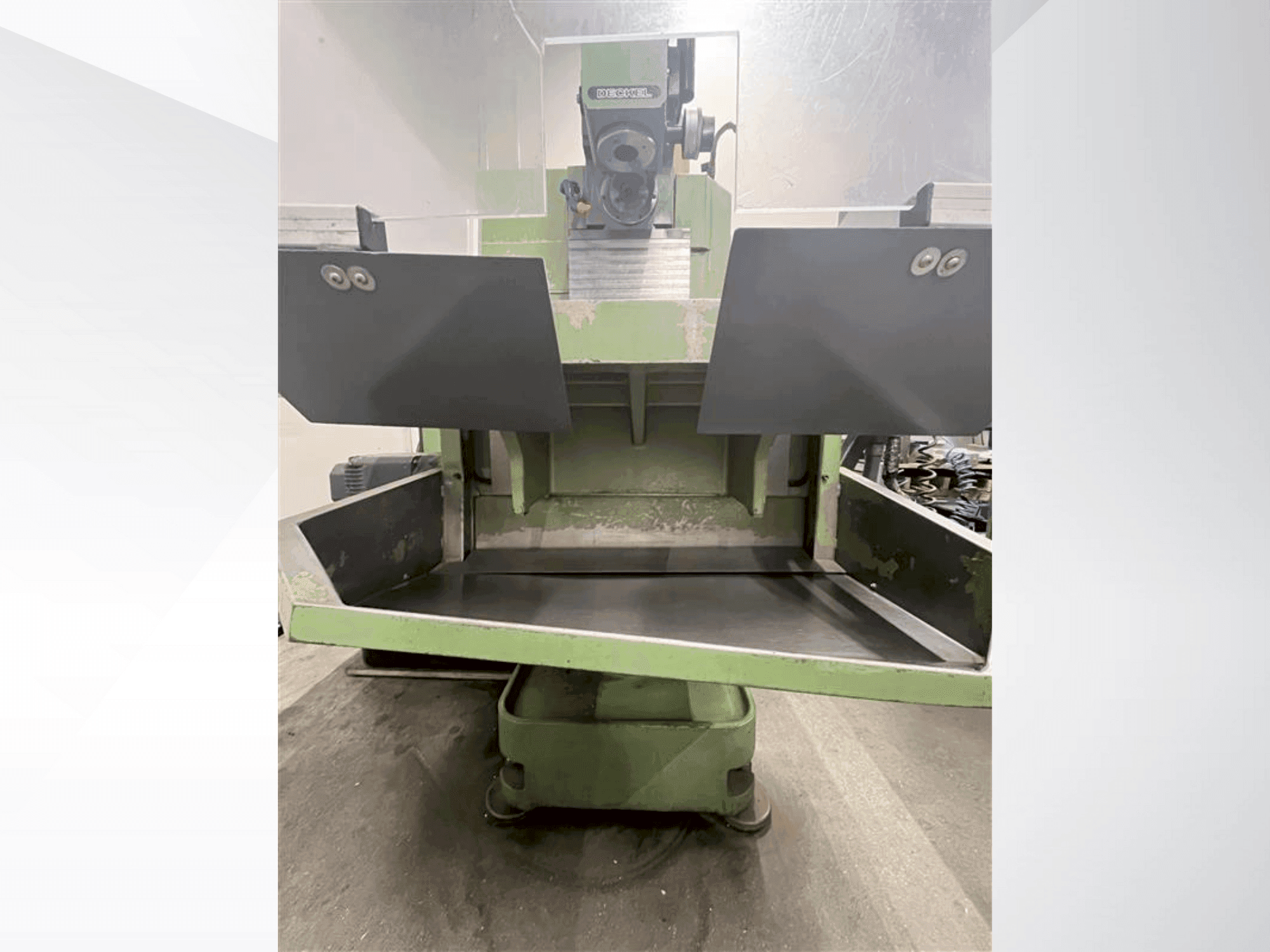

This 3-axis DECKEL FP2A CNC milling machine was manufactured in 1989. It features a control system with Dialog 4/Contour 3, a vertical milling head, and a quill stroke of 80mm. The machine supports a feed drive range of 2 to 3600 mm/min and a rapid traverse of 4000 mm/min. With a table surface of 390x620 mm and a maximum load of 250 kg, this machine offers robust capabilities for precise milling tasks. For more information about this CNC milling machine, please reach out to us.

Overview

brand: DECKEL
year: 1989
MODEL: FP2A
application type: Milling
Location: Germany
machine type: CNC Milling Machine

Technical Information - DECKEL FP2A

General Data

Machine weight: 130 kg

Control Unit

Model: Contour 3

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 300 MM
Y-AXIS Movement: 300 MM
Z-AXIS Movement: 340 MM

Additional equipment

- 2x universal probe
- 2x collet chuck / 1x collet set 2-22mm
- 1x drill chuck
- 9x milling cutter holder
- Various chucks
- Max. clearance height between vertical milling spindle / table surface: 470 mm
- Max. clearance height between vertical milling spindle / table surface: 470 mm
- Machine book I / Machine book I / Control manual I / Contour 3 programming manual

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vertical milling head with sliding headstock 50 mm
- - Quill stroke vertical 80 mm
- - Direct path measurement triggering 0. 001 mm
- - 4th axis 0. 001°
- - Feed drive metric 2... 3600 mm/min
- - Rapid traverse metric 4000 mm/min
- - Table surface: 390 x 620 mm / t slots number: 6, width: 14 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
