➤ Used DECKEL FP4A - Milling Machine For Sale

Show in original language

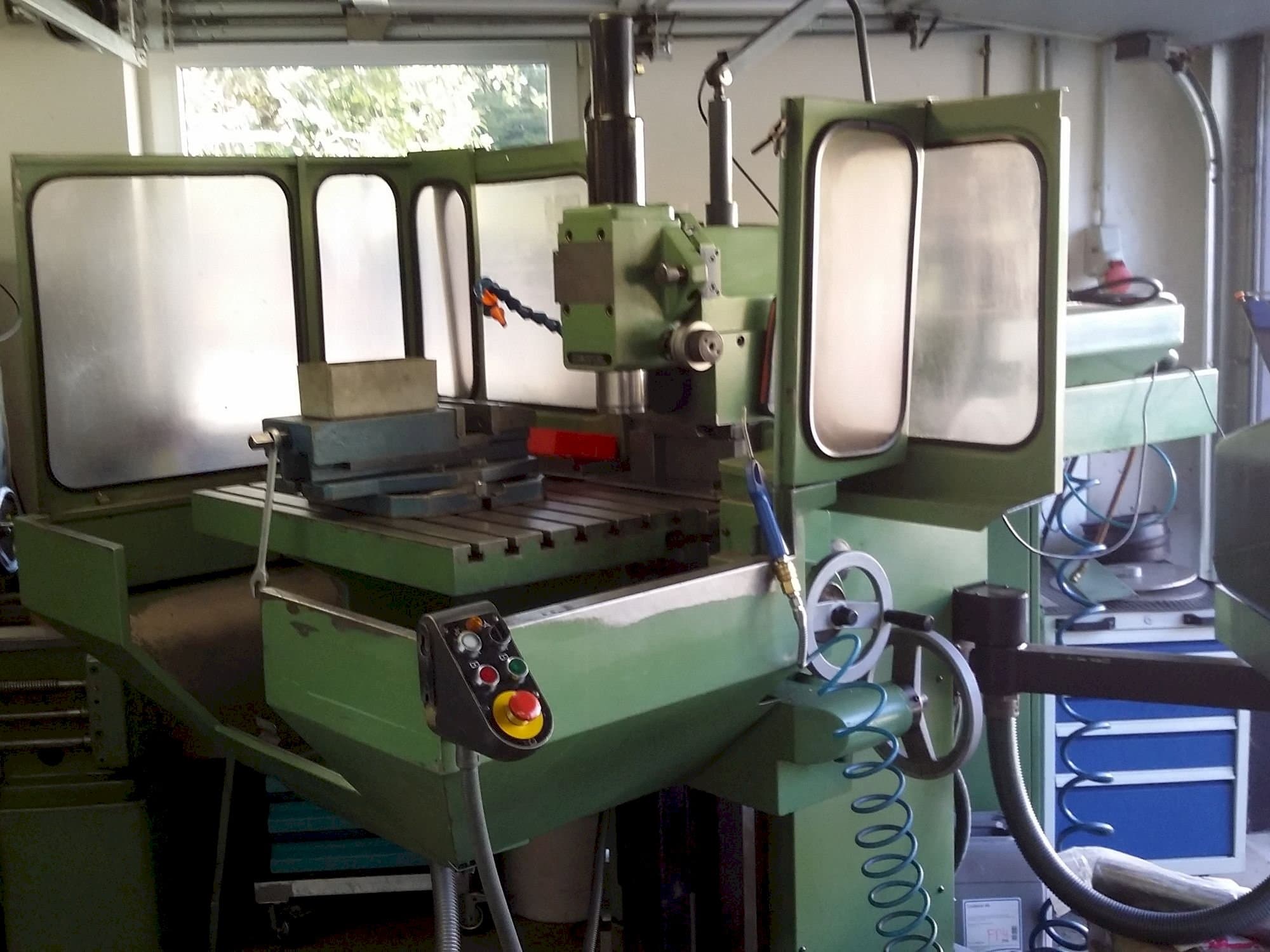

This DECKEL FP4A Milling Machine from 1984 was made in Germany. It is equipped with a Grundig Electronic Control unit. This machine counts with a spindle speed up to 3150 rpm. It includes 1 set of collets for tool clamping, a program memory expansion via external computer, a wiring diagram, and a spare parts diagram.

Overview

brand: DECKEL
year: 1984
MODEL: FP4A
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - DECKEL FP4A

Control Unit

Model: Electronic

Main drive

Spindle speed range: 63 - 3150 rpm 1/MIN

Workpiece

Workpiece drm: 80 mm
Workpiece x: 485 mm
Workpiece y: 385 mm
Workpiece z: 380 mm
Workpiece weight: 600 kg

Table

Distance between: 63 mm

Tools

Type of tool holder: SK 40

Additional equipment

- External memory expansion
- Wiring diagram
- Spare parts diagram
- 1 set of collets for tool clamping
- Program memory expansion via external computer
- Operating instructions machine
- Operating instructions control
- Programming instructions

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Length measuring system x-axis renewed in 2014
- - Sliding vertical milling head with extendable spindle
- - Counter bearing for long milling mandrels
- - Power-operated tool clamps horizontal and vertical
- - Automatic speed change gearbox
- - Automatic clamping in x-, y-, z-axis
- - Automatic central lubrication
- - Collision protection clutch in z- and y-axis
- - Coolant device
- - Direct distance measurement
