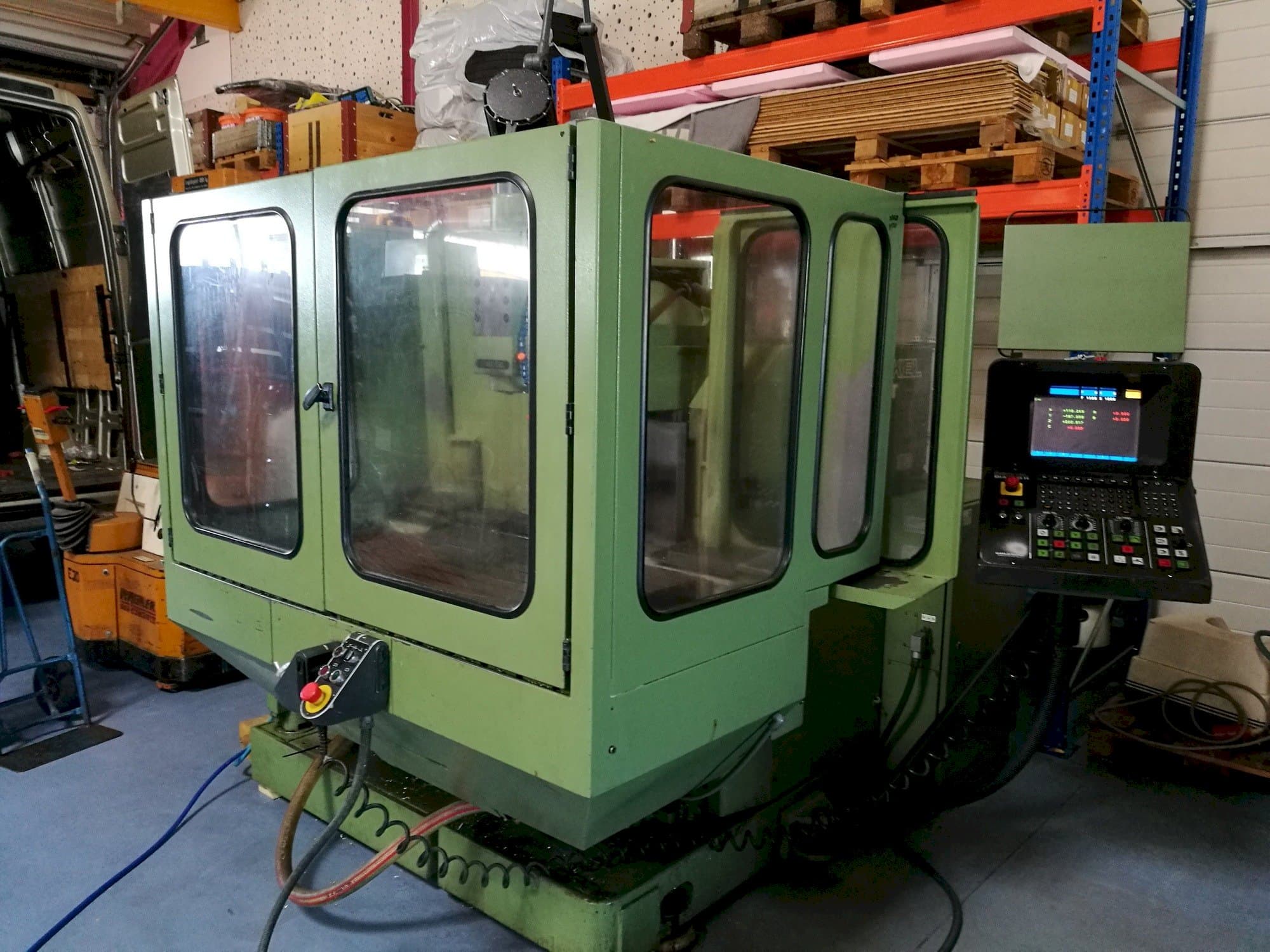

Front view of DECKEL FP4AT machine
Front view of DECKEL FP4AT machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DECKEL - FP4ATAT-MIL-DEC-1989-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DECKEL FP4AT Milling Machine was produced in 1989 in Germany and has been operative for 22967 hours. Operated through a Deckel Dialog 11 Control unit, this versatile machine can work with a spindle speed up to 40-4000 rpm. It presents excellent conditions, as it has been treated and cleaned properly.

Overview

  • brand: DECKEL
  • year: 1989
  • MODEL: FP4AT
  • production hours: 22967
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre

Technical Information - DECKEL FP4AT

General Data

  • Measurements width: 4400 mm
  • Measurements depth: 4300 mm
  • Measurements height: 1800 mm
  • Machine weight: 3150 kg

Control Unit

  • Model: Dialog 11
  • CNC main language: German
  • CNC language customizable: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 40-4000 rpm 1/MIN

Movement

  • X-AXIS Movement: 560 mm
  • Y-AXIS Movement: 500 mm
  • Z-AXIS Movement: 450 mm

Tools

  • Slots in storage: 20
  • Max weight: 6 kg
  • Max tool diameter: 80/100 mm
  • Max tool length: 300 mm
  • Type of tool holder: SK40 Din 69871

Media

  • Main electronic connection: 380 V
  • Power consumption: 17 kVA
  • Internal cooling: Yes

    Additional Information

    Additional equipment

    • 35 toolholders
    • clamping devices

    Machine History

    End product

    Mould parts

    Material type

    Steel, plastics, copper, aluminum

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
