DECKEL MAHO DMC 60T

Show in original language

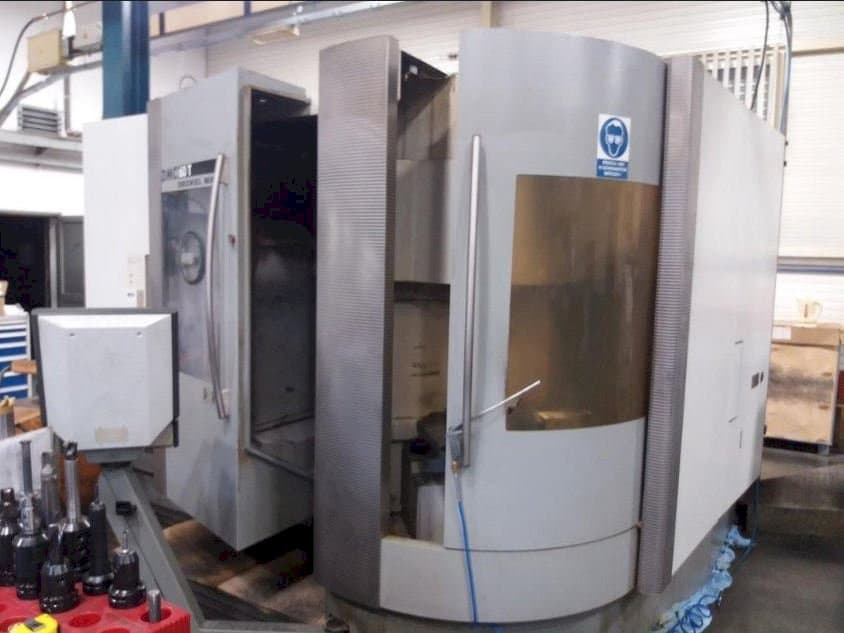

This DECKEL MAHO DMC 60T Horizontal Machining Center was made in Germany in the year 2003. It has a total production record of 49138 hours. This 5 axis machine is operated through a HEIDENHAIN iTNC530 control unit. It works with a spindle speed up to 12000 rpm and a compressed air pressure 6 bar. This machine replaced its spindle in 2020 and is in very good condition.

Overview

brand: DECKEL MAHO
year: 2003
MODEL: DMC 60T
production hours: 49138
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 60T

General Data

Measurements width: 3400 mm
Measurements depth: 3300 mm
Measurements height: 2600 mm
Machine weight: 9610 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 780 mm
X-AXIS Working Feed: 15000 mm/min
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 15000 mm/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Working Feed: 15000 mm/min
Z-AXIS Rapid traverse: 50 m/min

Table

Outer length: 500 mm
Outer width: 630 mm

Tools

Slots in storage: 60
Type of tool holder: sk 40

Media

Power consumption: 64 kva
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B axis (head) -120 degrees/+30 degrees
- - Compressed air pressure 6 bar
- - Lan connection
Qualitative Machine Benefits:
- - Very good working condition
- - 2020 - new spindle installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
