DECKEL MAHO DMU 50M vertical machine center

Show in original language

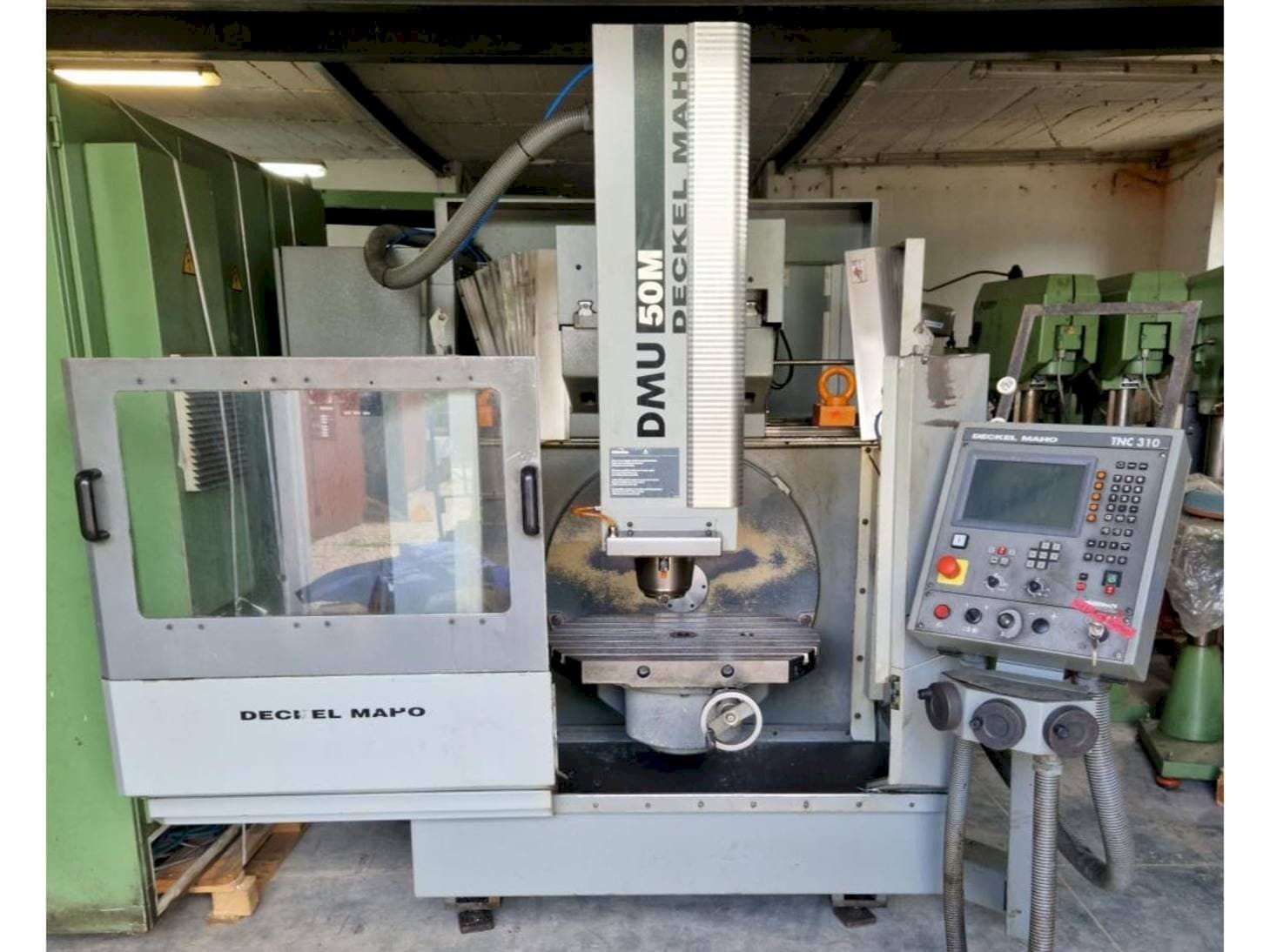

This DECKEL MAHO DMU 50M vertical machine center was made in the year 2001 in Germany. It is equipped with a Heidenhain TNC 310 CNC control unit. The machine has a spindle speed of 20 - 4500 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMU 50M
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50M

General Data

Measurements width: 1783 mm
Measurements depth: 1647 mm
Measurements height: 2534 mm
Machine weight: 3000 kg

Control Unit

Model: TNC 310 CNC
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 4500 1/MIN
Spindle motor power: (100%/40% ED): 9/13 kW

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque (100%/40%): 57/82 nm
- - Tool holder taper: sk 40 din 69871
- - Rotation: 360°
- - Tilting: -10°/+95°
- - Feed speed: 5,000 mm/min
- - High-speed x/y/z: 5 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
