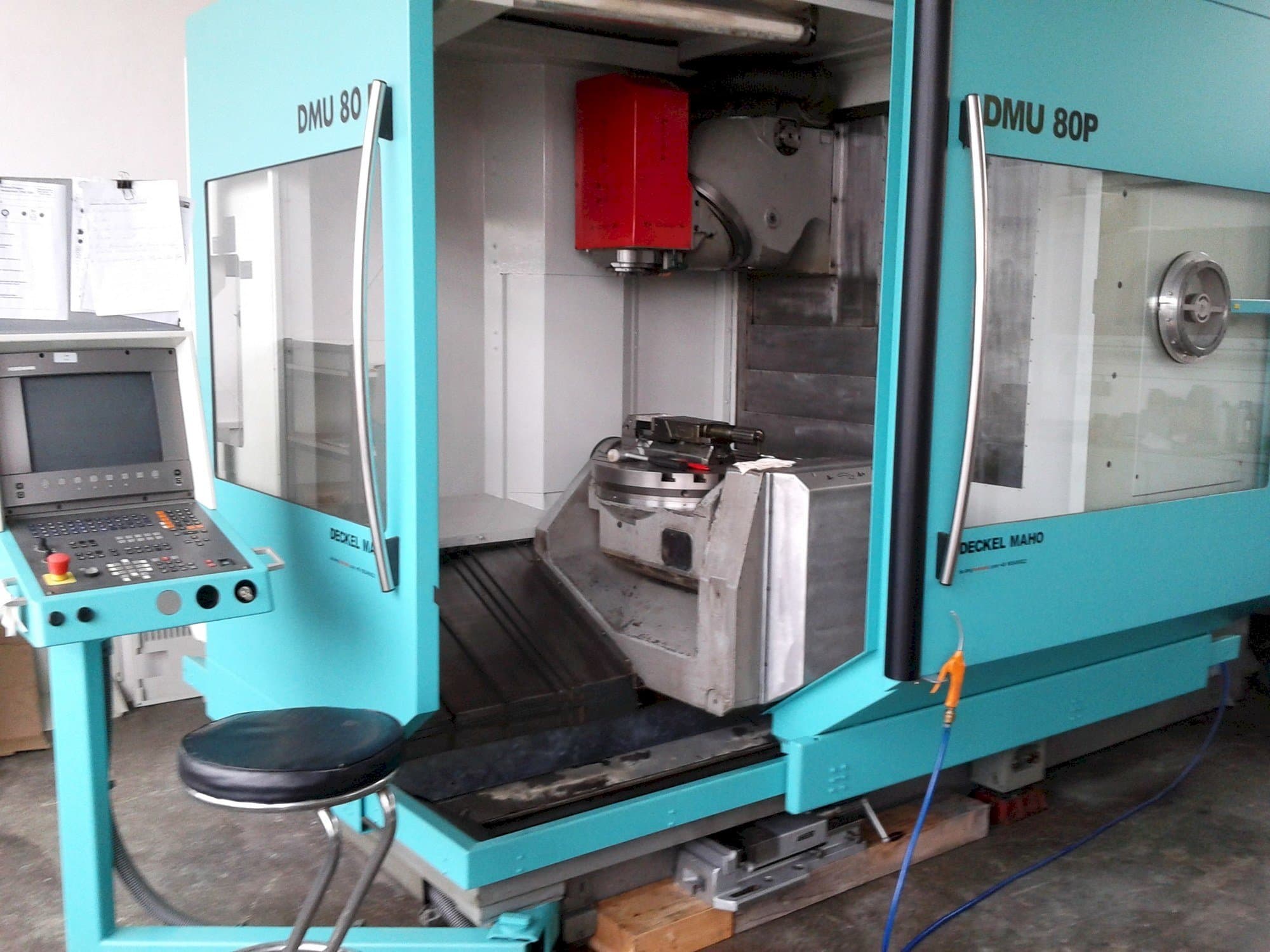

DECKEL MAHO DMU 80P Universal Machining Center

Show in original language

This DECKEL MAHO DMU 80P Universal Machining Center was built in the year 1999 and has been working for 56145 hours, from which 27389 are spindle hours. This machine is in a very good condition and can be tested under power. Its table, as well as the tool clamps, were overhauled and got a Heidenhain LE426PB swap computer with a fast SSD hard disk. The Siemens Simodrive LT-Module Interface 108A Type: 6SN1123-1AA00-0LA1 has been exchanged. Also, the spindle encoder has been exchanged. The zero position must be adjusted once a day. The side window has a crack but this does not affect functionality. Many tool holders are converted to IK. Aluminium cover strips has been renewed on the side. Inside and outside include a new spindle cover, and new inscriptions received. New switch on button green. The control panel has got handles. Valve hoses partly renewed. Hydraulic pump sound insulated. New LED tube light.

Overview

brand: DECKEL MAHO
year: 1999
MODEL: DMU 80P
production hours: 27389
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 80P

Control Unit

Model: TNC430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 600 mm
A-AXIS Movement: 45° MM
B-AXIS Movement: Horizontal/Vertical MM
C-AXIS Movement: 360° MM

Tools

Max weight: 630 kg
Type of tool holder: SK50

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 50 tool holders
- Tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electronic handwheel
- - 5 water jets and 5 air jets
- - Spindle with internal cooling and tool magazine 30x
- - Tlc software version: gr472. 01r
- - Nc software version: 280476-29
- - Coolant tank 600 litres
- - Coolant pressure 20-40 bars
Qualitative Machine Benefits:
- - Air pressure controller with filter
- - New led tube light
- - Hydraulic pump sound insulated
- - Valve hoses partly renewed
- - New switch on button green. The control panel has got handles
- - Inside and outside incl. Spindle cover new painted and new inscriptions received
- - Aluminium cover strips has been renewed on the side
- - Many tool holders converted to ik

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
