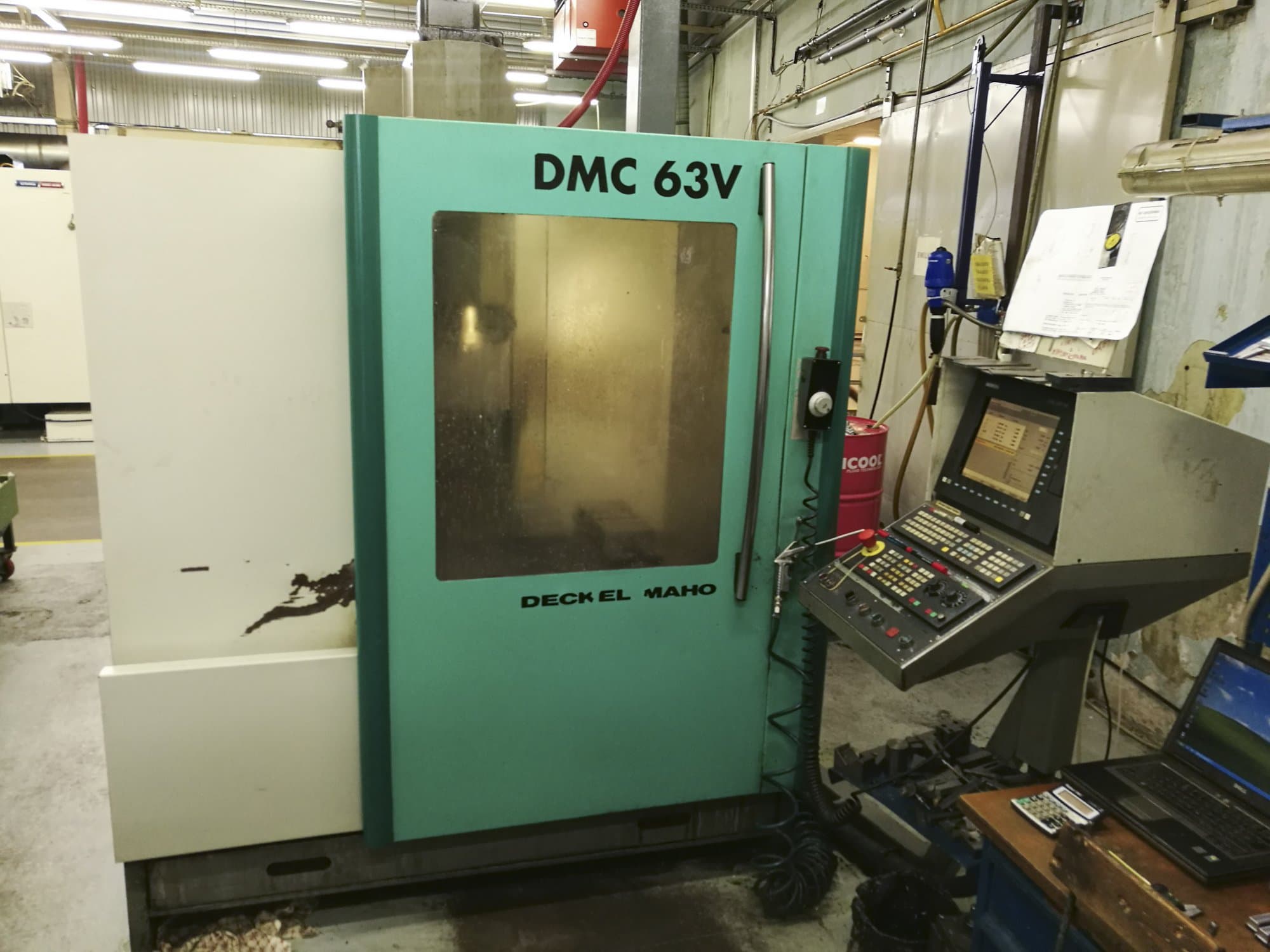

Deckel Maho Gildemeister DMC 63 V Vertical Machining Center

Show in original language

This DMG DMC 63 V Vertical Machining Center from 2001 was manufactured in Germany and has a working record of 32683 production hours. This machine is operated through a SIEMENS SINUMERIK 810D Control unit and has mainly worked with steel during the past.

Overview

brand: DMG
year: 2001
MODEL: DMC 63 V
production hours: 32683
application type: Milling
Location: Lithuania
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG DMC 63 V

General Data

Measurements width: 1860 mm
Measurements depth: 2410 mm
Measurements height: 2630 mm
Machine weight: 4500 kg

Control Unit

Model: SINUMERIK 810D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 800 mm
Workpiece y: 500 mm
Workpiece weight: 500 kg

Table

Outer length: 800 mm
Outer width: 500 mm

Tools

Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 24 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
