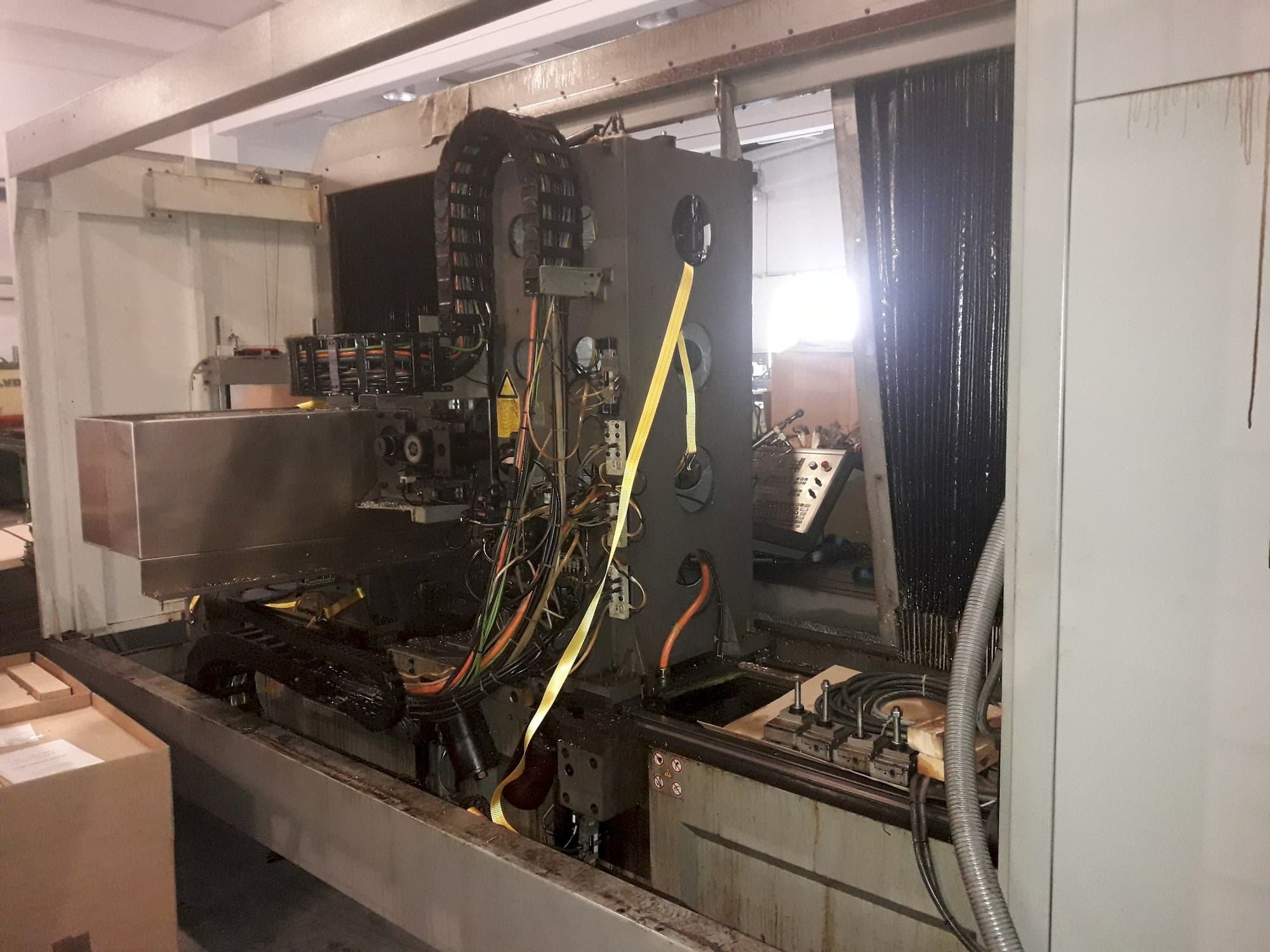

DMG DMF 220 linear Vertical Machining Center

Show in original language

This DMG DMF 220 linear Vertical Machining Center was manufactured in the year 2005 in Germany and has 82418 production hours, of which 36455 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit and has 4 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: DMG
year: 2005
MODEL: DMF 220 linear
production hours: 82418
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMF 220 linear

General Data

Measurements width: 4474 mm
Measurements depth: 3600 mm
Measurements height: 2700 mm
Machine weight: 12500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 2200 kg

Table

Outer length: 2600 mm
Outer width: 600 mm
TSlots size: 6
Distance between: 100 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle motor power 25/35 kw (40/100%)
- - Work feedrates (x, y, z) 20. 000 mm/min
- - Rapid feedrates 50m/min
- - High pressure cooling through spindle
- - 4th axis rotary table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
