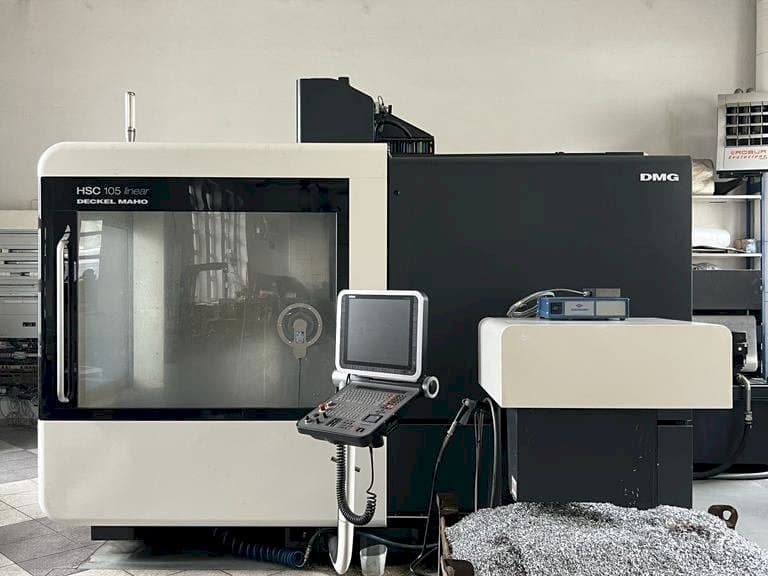

Front view of DMG HSC 105 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG HSC 105 linear

Photo Gallery

DMG - HSC 105 linearCZ-MIL-DMG-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG HSC 105 linear Vertical Machining center

Show in original language

This DMG HSC 105 linear Vertical Machining center was manufactured in the year 2012 in Germany. It is equipped with a Heidenhain iTNC 530 and has 5 axis. The machine has a spindle speed of 28000 rpm, is in good condition and well maintained.

Overview

brand: DMG
year: 2012
MODEL: HSC 105 linear
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG HSC 105 linear

General Data

Measurements width: 3866 mm
Measurements depth: 2935 mm
Measurements height: 3180 mm
Machine weight: 13700 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 28000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 560 mm

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 950 mm

Tools

Slots in storage: 120
Type of tool holder: HSK-A 63

Media

Power consumption: 80 kVa
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 degrees
- - B axis +10 degrees/-110 degrees
- - Table diameter 950 mm
- - Feedrate 90 m/min.
- - Rapid feedrate 90 m/min.
- - Spindle motor power (40/100%) 55/43. 5 kw
- - Spindle motor torque max. 47. 8 nm (40% dc)
- - Through spindle coolant 40 bar with paper type filter
- - 3d quickset
- - Tool laser probe renishaw, infrared probe pp60 optical
Qualitative Machine Benefits:
- - Very good condition!
- - Demo machine bought as new in 2015
- - Only used in small -scale/one-piece part production
- - 2023 - new spindle installed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
