DMG MORI CLX 350

Photo Gallery

DMG MORI - CLX 350GB-TUR-DMG-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

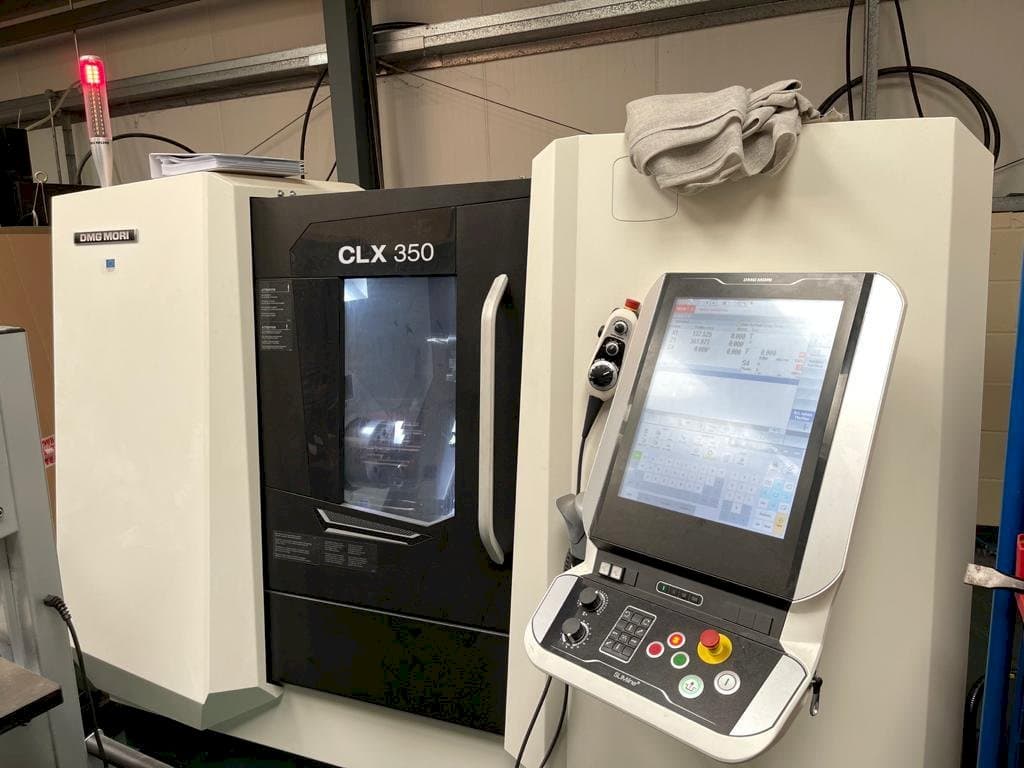

DMG MORI CLX 350 Lathe

Show in original language

This DMG MORI CLX 350 Lathe was built in Poland in the year 2018. This 2 axis machine has been working for only 1639 hours. It is equipped with a Siemens DMG MORI SLIMLINE control unit. This machine can perform with a spindle speed up to 5000 rpm. It is in very good working condition.

Overview

brand: DMG MORI
year: 2018
MODEL: CLX 350
production hours: 1639
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CLX 350

General Data

Measurements width: 3400 mm
Measurements depth: 2271 mm
Measurements height: 2208 mm
Machine weight: 4200 kg

Control Unit

Model: DMG MORI SLIMLINE
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle motor power: 16.5/11 kW
Number of axis: 2

Movement

X-AXIS Movement: 242,5 mm
X-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 540 mm
Z-AXIS Rapid traverse: 36 m/min

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 30

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 580 mm
- - Swing over the cross-slide 360 mm
- - Max. Cutting diameter 320 mm
- - Bar capacity 51 mm
- - Chuck size 200 mm
- - Tailstock body travel 550 mm
- - Tailstock taper mt #4
- - Tool setter, swarf conveyor, coolant
Qualitative Machine Benefits:
- - Very good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
