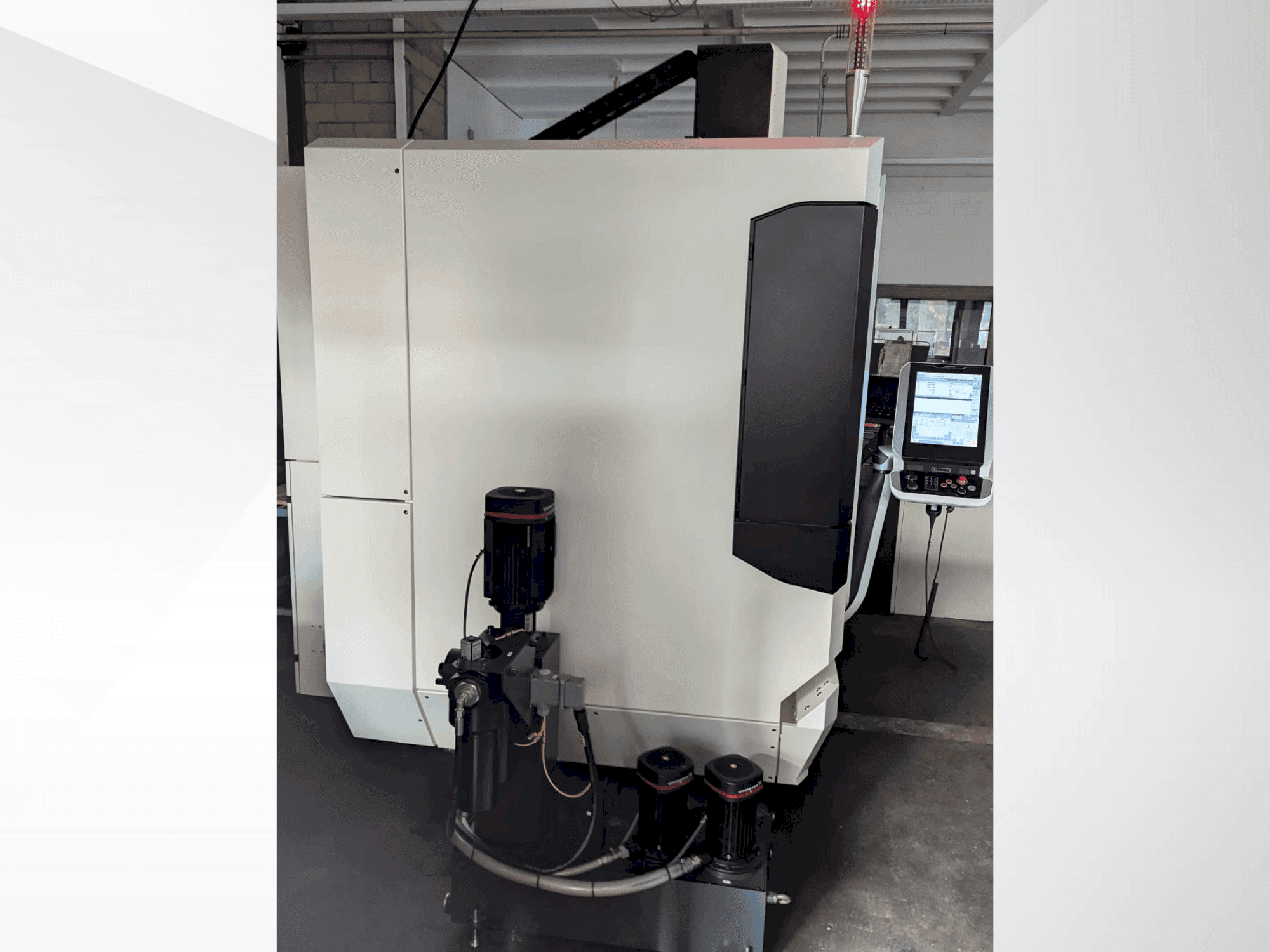

DMG MORI CMX 50U

Photo Gallery

DMG MORI - CMX 50UDE-MIL-DMG-2023-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CMX 50U For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI CMX 50U was manufactured in 2023, featuring a swivel rotary table with digital drives and a table size of D 630x500 mm. It boasts a spindle speed range of 20 to 12,000 rpm and a main drive power of 13/9 kW. The tool magazine holds 30 tools and includes a double gripper for tool changing. Equipped with DMG MORI SLIMline® Multi-Touch Control and an internal coolant supply of 20 bar. Contact us for further details regarding this universal machining centre.

Overview

brand: DMG MORI
year: 2023
MODEL: CMX 50U
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CMX 50U

Control Unit

Brand: SIEMENS
Model: DMG MORI SLIMline® Multi-Touch Control

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 13/9 kW (40/100% duty cycle)
Tool taper: SK 40

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: Swivel range (-5° to +110°) MM
C-AXIS Movement: 360° MM

Table

Outer length: 630 mm
Outer width: 500 mm

Media

Chip conveyor: Yes

Additional equipment

- Swivel rotary table with digital drives
- Coolant spray gun
- External electronic handwheel
- Cabin roof
- 4-color signal lamp
- Double cartridge filter for coolant
- RotoClear

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Direct path measuring system for x, y, z axes
- - Sealing air for measuring systems
- - Dmg mori iotconnector
- - Rapid traverse (linear axes): 30 m/min
- - Tool clamping: according to din 69872
- - Double gripper for tool changing
- - Internal coolant supply: 20 bar
- - Bed and atc flushing via m-function
- - 139 spindle hours

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
