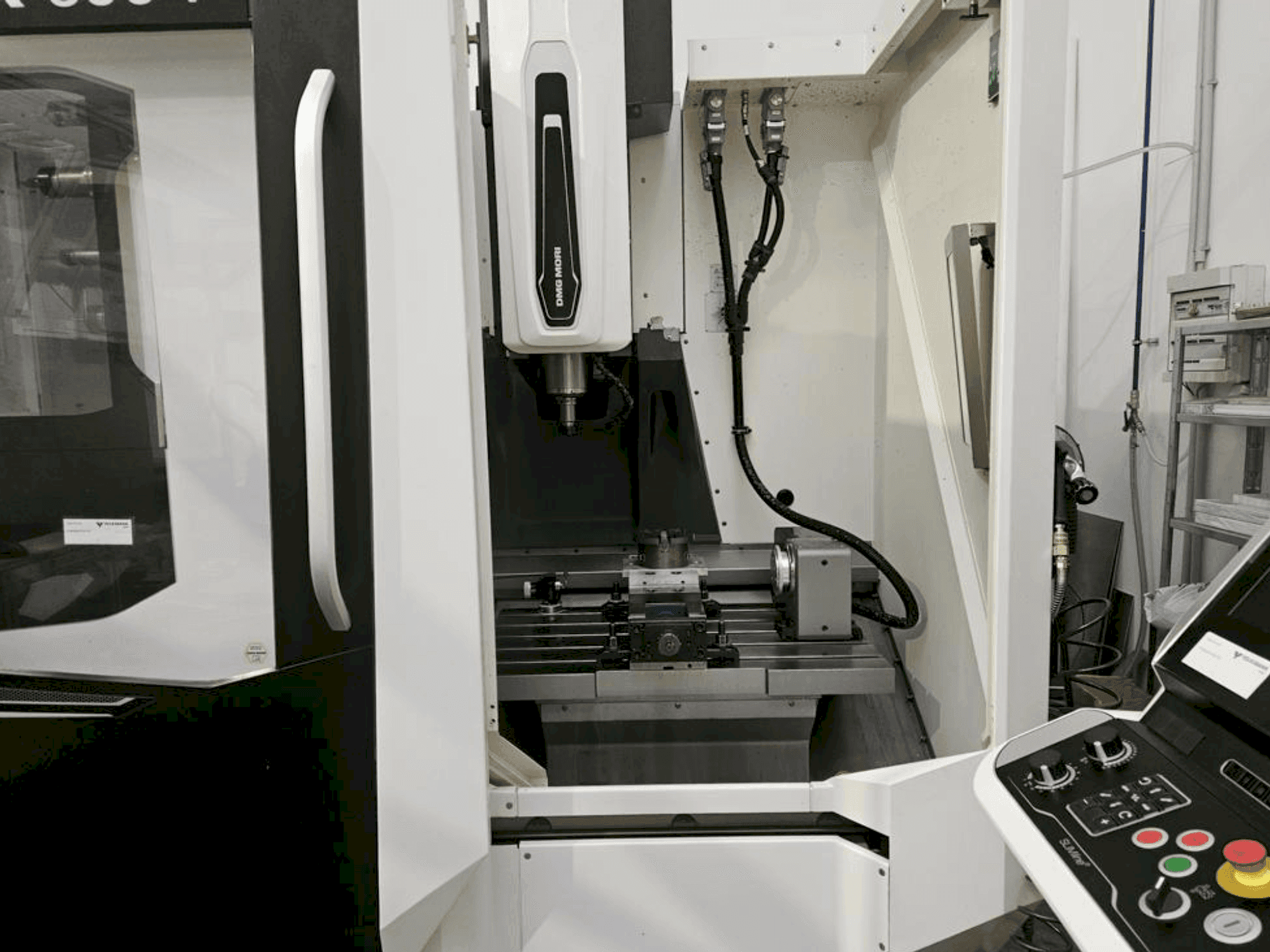

Front view of DMG MORI CMX 600 V machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI CMX 600 V

Photo Gallery

DMG MORI - CMX 600 VAT-MIL-DMG-2022-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI CMX 600 V Vertical Machining Centre

Show in original language

This DMG MORI CMX 600 V Vertical Machining Centre was manufactured in 2022. It has 4 axes with a NC rotary table (4th axis) from Lehmann with indirect measuring system. The table size is 900 x 560 mm. The machining centre is equipped with a DMG MORI SLIMline® Control based on Siemens and a direct measurement system in X/Y/Z. As extras it comes with chip conveyor (scraper belt, tank capacity: 200l) and a Renishaw touch probe kit for Siemens. See tech specs overview as PDF (DE) attached.

Overview

brand: DMG MORI
year: 2022
MODEL: CMX 600 V
production hours: 3071
application type: Milling
Location: Austria
machine type: Vertical Machining Centre

Technical Information - DMG MORI CMX 600 V

General Data

Measurements width: 2859 MM
Measurements depth: 3490 MM
Measurements height: 2985 MM
Machine weight: approx. 5000 kg

Control Unit

Model: SLIMline (SIEMENS)
Interface: Multi-Touch Control 19"

Main drive

Spindle speed range: 20 - 12000 1/MIN
Spindle motor power: 13/9 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 900 mm
Outer width: 560 mm

Tools

Number of stations: 30
Type of tool holder: SK 40

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Chip conveyor (scraper belt) // Tank capacity: 200l (left) // Chip Tray
Coolant spray gun
Signal lamp 4-color
Renishaw touch probe kit for SIEMENS control (PP40 touch probe with optical signal transmission)
Tool magazine with 30 tools with double gripper

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
