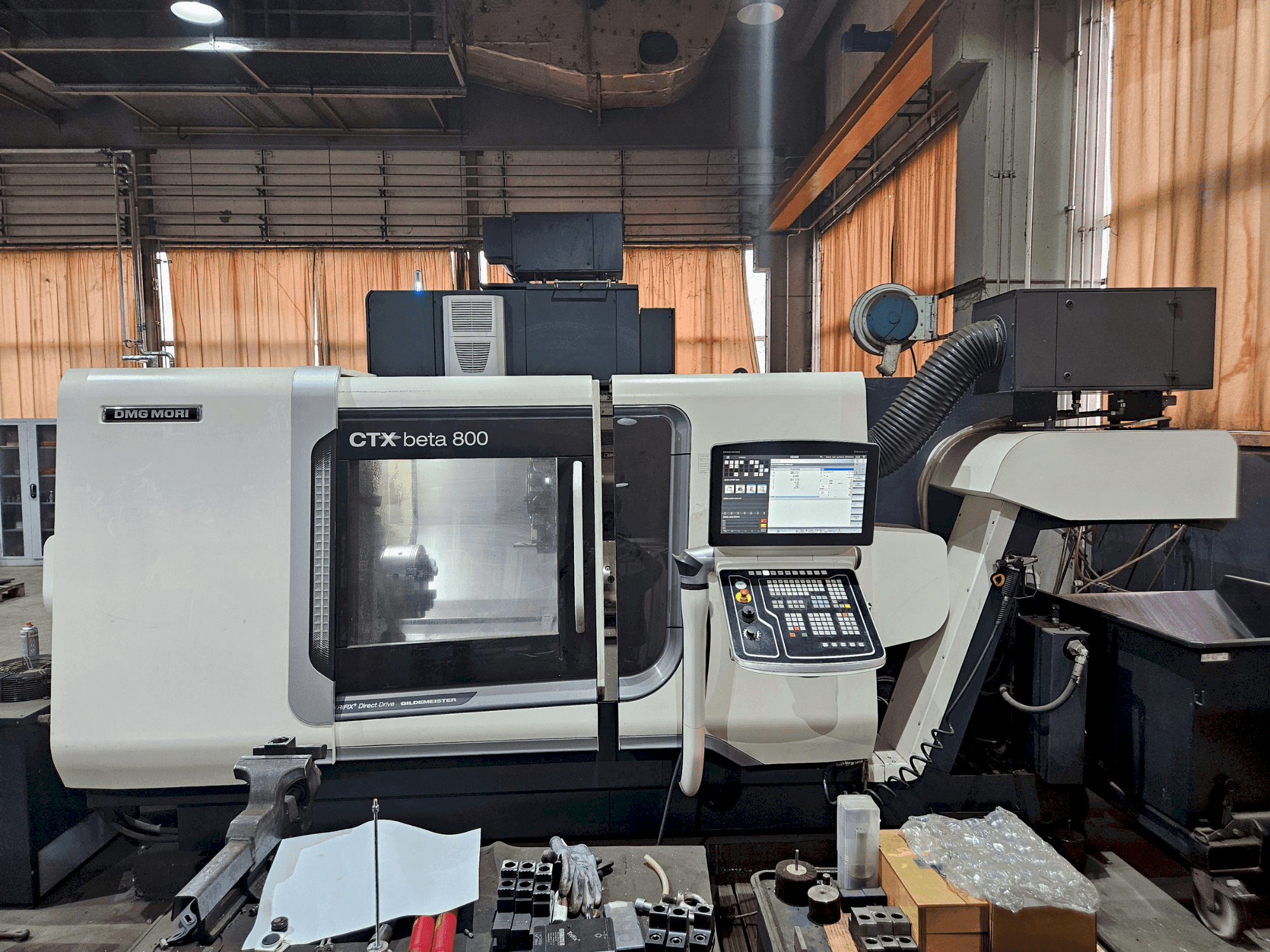

Front view of DMG MORI CTX beta 800 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI CTX beta 800

Photo Gallery

DMG MORI - CTX beta 800DE-MIL-DMG-2017-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CTX beta 800 For Sale | gindumac.com

Show in original language

This 5-axis DMG MORI CTX beta 800 mill-turn centre was manufactured in 2017. It features a Siemens 840D sl Operate control, a partial hollow clamp diameter of 104mm, counter spindle, y-axis, and a chip conveyor in hinged belt design. If you are looking to get high quality turning and milling capabilities consider the DMG MORI CTX beta 800 machine we have for sale. Contact us for more information about this machine.

Overview

brand: DMG MORI
year: 2017
MODEL: CTX beta 800
production hours: 4439
application type: Milling
Location: Germany
machine type: Mill-Turn Centre
control unit brand: SIEMENS

Technical Information - DMG MORI CTX beta 800

Control Unit

Brand: SIEMENS
Model: 840D sl Operate

Main drive

Spindle speed range: 20-4000 min-1 1/MIN

Media

Chip conveyor: Yes

Additional equipment

- Reinforced coolant pump 12 bar, 23l/min /Coolant supply / Coolant spray gun / Coolant through spindle
- 1x 3-jaw chuck THW PLUS 315-105 for main spindle / 1x 3-jaw chuck THW PLUS 315-105 for counter spindle
- Tailstock
- Chip conveyor in hinged belt design
- C-axis and spindle brake
- 12-position disc turret Sauter
- Drawtube inner diameter 104x848mm deep
- Hinged belt chip conveyor incl. coolant tank
- Double sound filter with filter elements
- Mechanical oil mist separator 600 m³/h, filter class H13

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Partial hollow clamp diameter 104mm
- - Torque 600/700 nm (100/40% ed)
- - Turning length 800mm
- - Vdi40
- - Cross slide with y-axis, stroke +- 60mm
- - 12-position star turret
- - Reinforced coolant pump 12bar, 23l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
