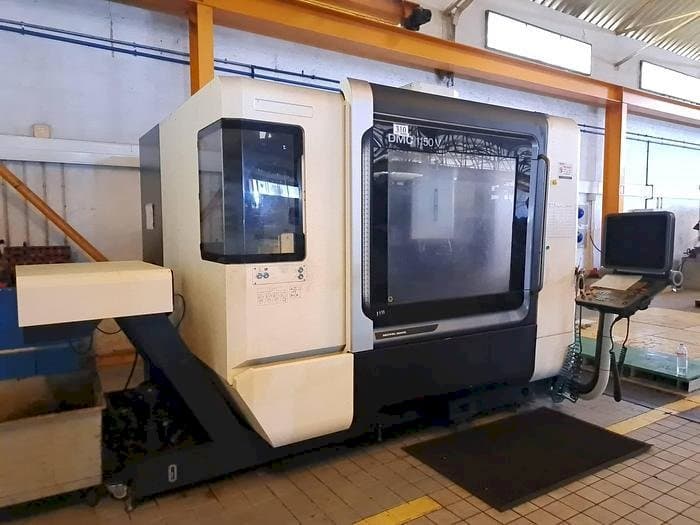

Front view of DMG MORI DMC 1150V machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMC 1150V

Photo Gallery

DMG MORI - DMC 1150VPT-MIL-DMG-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI DMC 1150V Vertical Machining center

Show in original language

This DMG MORI DMC 1150V Vertical Machining center was manufactured in the year 2015 in Germany. It is equipped with a HEIDENHAIN TNC 640 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm and operates with SK40.

Overview

brand: DMG MORI
year: 2015
MODEL: DMC 1150V
production hours: 17424
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 1150V

General Data

Machine weight: 8800 kg

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 14.5 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 1150 MM
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 1400 mm
Outer width: 750 mm
Table load: 1500 kg

Tools

Slots in storage: 20
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque 121 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
