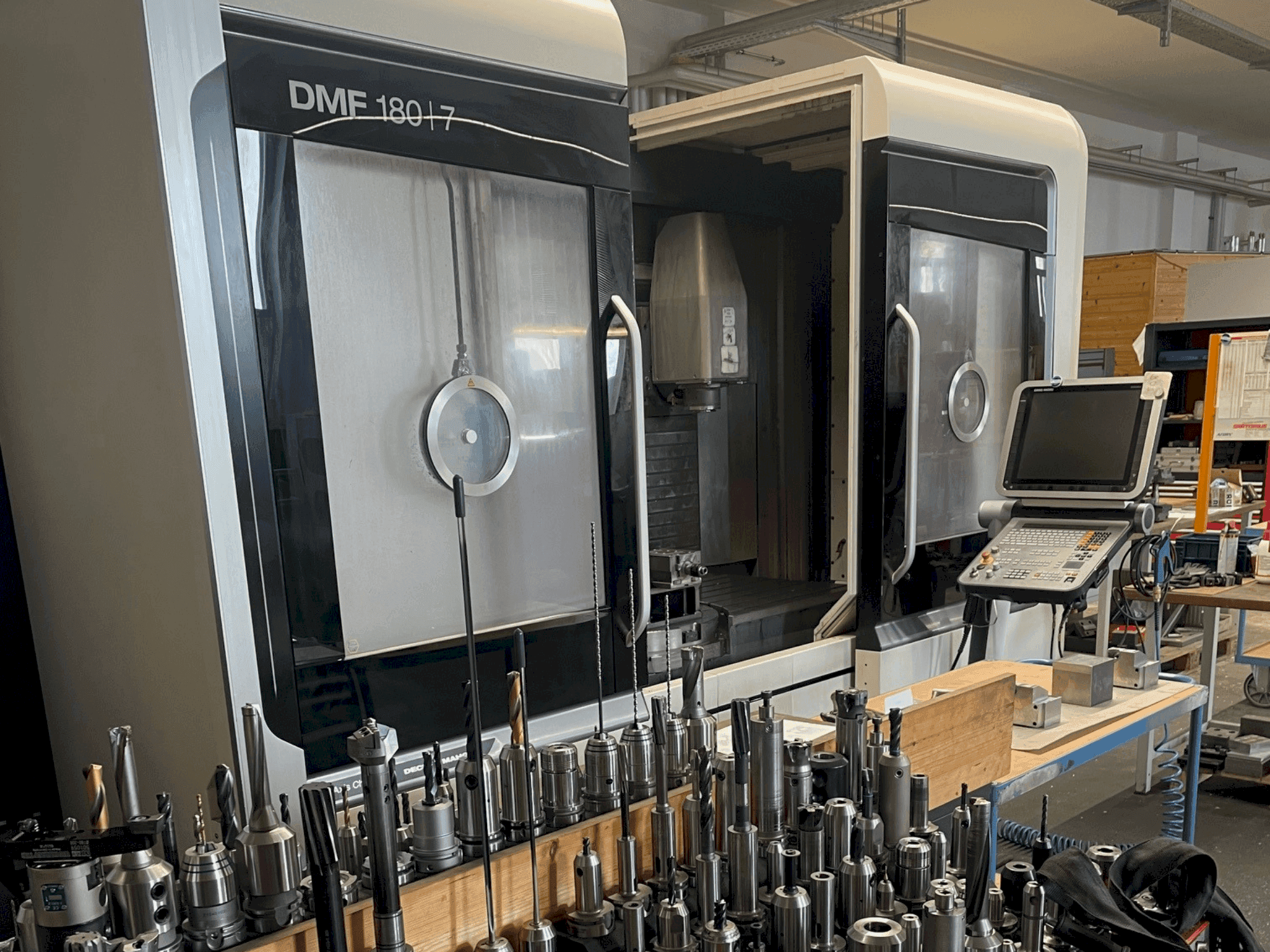

DMG MORI - DMF 180/7DE-MIL-DMG-2018-00004

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 60-fold tool changer
  • - Internal cooling
  • - Air cooling
  • - 3d probe
  • - New spindle installed a year ago, ran in 1 shift operation
  • - Hsk 63 cone type

Extra information

• - Machine still under power// DMF 180|7 Traveling Column Milling Machine/ New DMG MORI design X = 1800 mm, Y = 700 mm, Z = 700 mm/ Rapid traverse 40 m/min, acceleration 4 m/s* NC swivel milling head (8-axis)/ Fixed table 2100 x 700 mm Full cabin, coolant reservoir Direct position measuring systems Chip conveyor (scraper belt) Heidenhain TNC 640 3D control system ERGOline® Control user interface. 19* Screen speedMASTER® HSK-A63 motor spindle/ Spindle speed 20 - 15,000 rpm Power 21 kW / 16 kW Torque 111 Nm / 85 Nm (40 / 100% duty cycle)/ Fixed table with integrated rotary table 750 mm diameter - centrally located (cannot be used with a partition)/ Maximum load weight 500 kg/ 60-position tool magazine HSK-A63/ Chain magazine with double gripper (different from standard)/ Internal coolant supply/ 40 bar / 600 | With paper belt filter including two rotating viewing windows and sealing air for linear measuring systems/ Rotary feedthrough for spindle/ Flushing gun for chip flushing/ Blown air through the spindle center, selectable via M function, treated air with a low oil content/ Infrared measuring probe TS649 DMG/ Operating mode 4/ Process monitoring in production/ Electronic handwheel

Payment Terms

• Payment in advance

• Asset Financing
