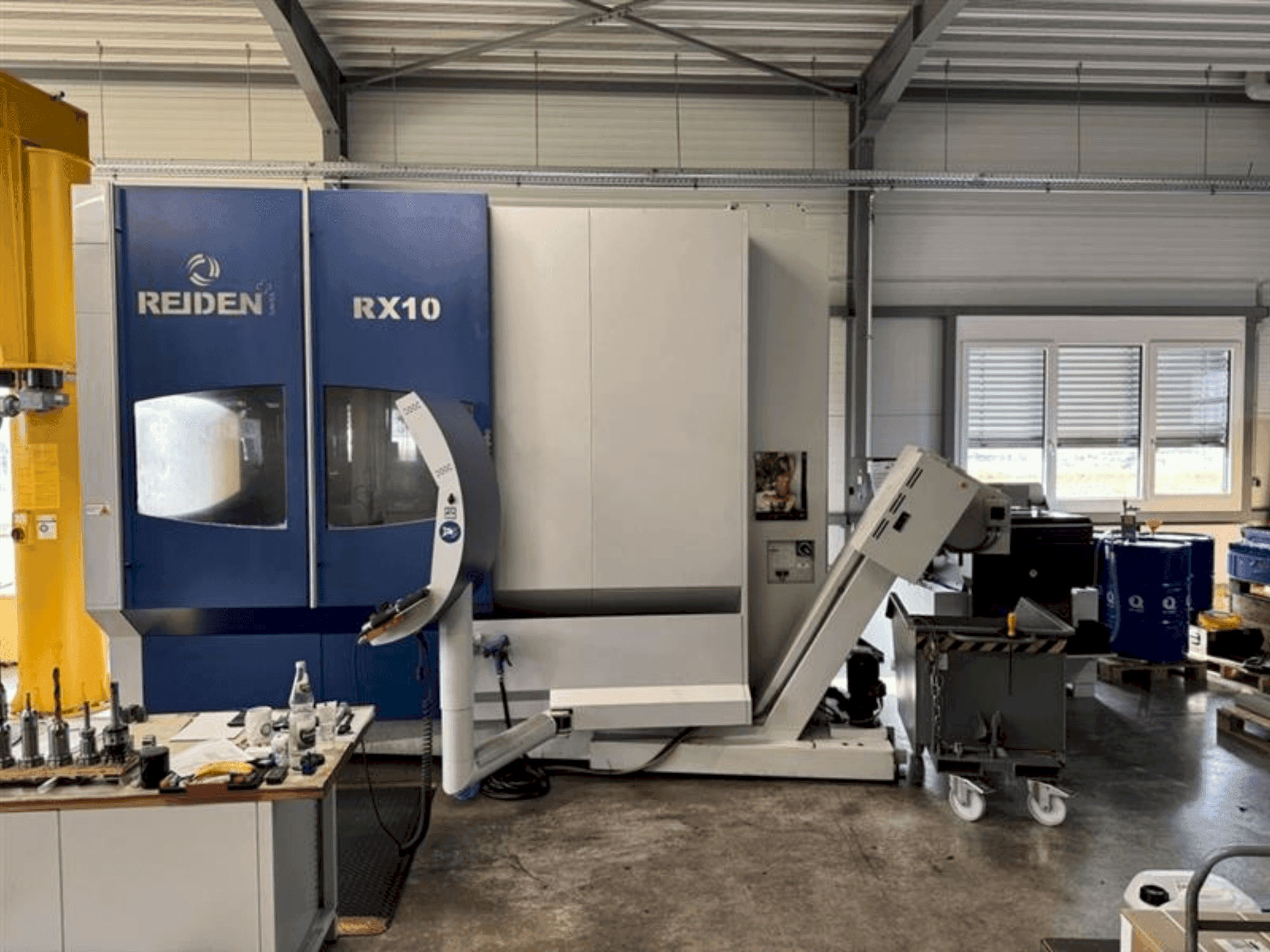

Reiden - RX10 5XDE-OTH-REI-2019-00001

Additional equipment

• - Chip Transport: Scraper belt chip conveyor (ejection height: 1100 mm)
• - Protective systems: Full-space protective cladding with angled door and quick-access door
• - Laminated glass viewing windows

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Torque: 105 nm (100 % ed), 135 nm (40 % ed), 155 nm (25 % ed)
  • - Nc rotary table: Ø 1000 × 800 mm with t-slots (18h7 / 100 mm)
  • - Drive: preloaded screw
  • - Oscillating circuit: Ø 1350 mm
  • - Tool changer: rack magazine with 85 places
  • - 5-fold tool loading station
  • - Dialog control panel
  • - Blum tc60 wireless touch probe (incl. Kinematicsopt and calibration ball)
  • - Trs2 tool breakage detection (for tools from Ø 2 mm)

Extra information

• - Measuring Systems: Direct path measuring systems (HEIDENHAIN) with sealing air connection Micro-Epsilon “Spindle Growth System” (thermal spindle compensation) HEIDENHAIN software options: AFC, ACC, DNC option, DXF converter The machine received a complete update last month, with a latest generation milling head featuring electronic temperature monitoring. Media Coolant Supply: Internal coolant supply (80 bar, 20 l/min) with paper band filter and fine filter (40 µm) Air blast through the center of the spindle (selectable via M function) Oil and emulsion mist extraction (1800 m³/h suction power) Control Unit Control: HEIDENHAIN TNC 640 Swiveling control panel with two 19" monitors HEIDENHAIN HR510 handwheel 3 potentiometers (feed rate, rapid traverse, speed) 3-color status light HEIDENHAIN DCM (collision monitoring)
