- ➤ Used DMG MORI Gildemeister CTX 1250 TC | Turn-Mill

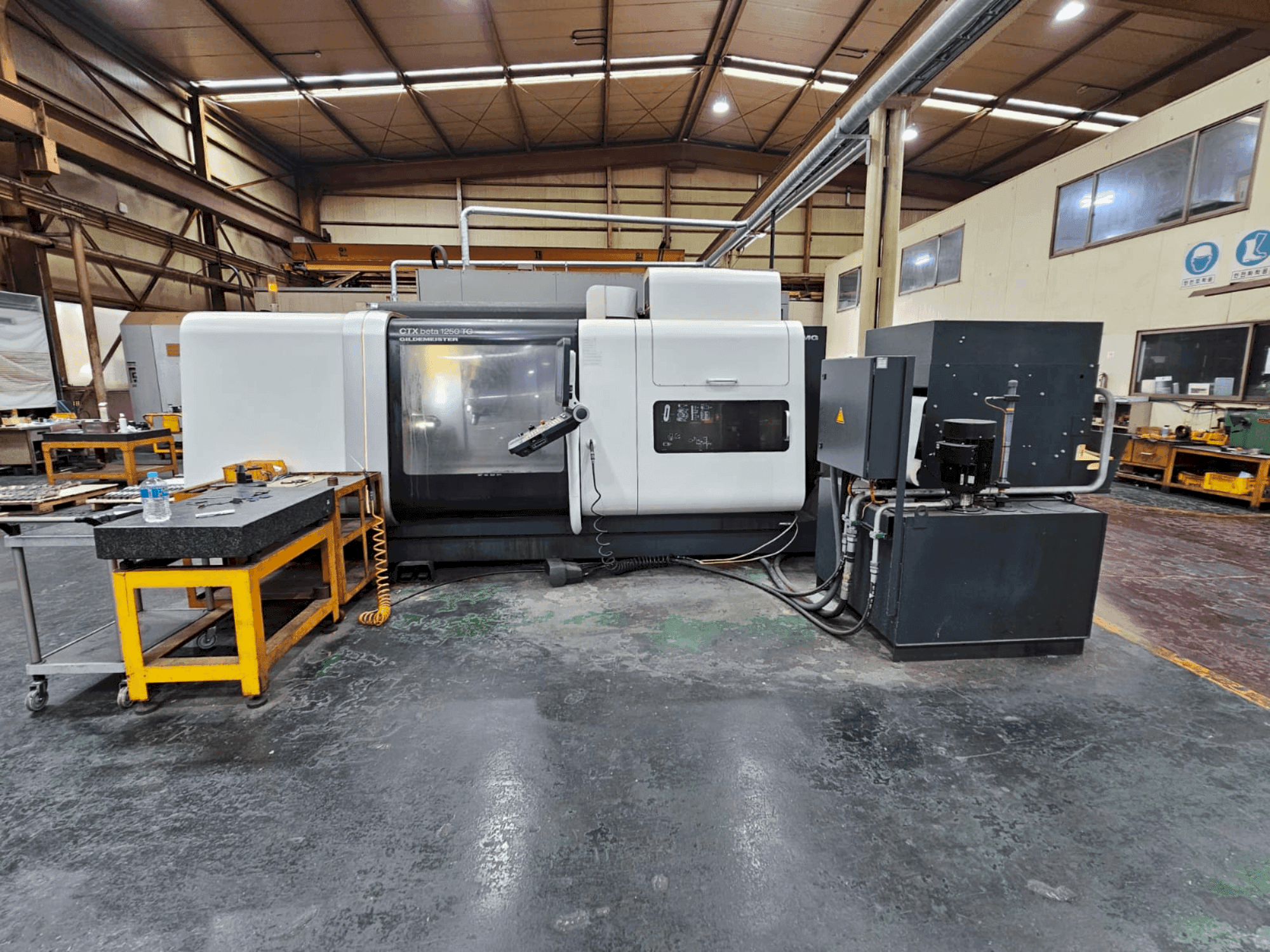

This 5-axis DMG MORI Gildemeister CTX 1250 TC was manufactured in 2012, featuring a turning length of 1250 mm and a main spindle speed up to 5000 min⁻¹. It includes a Y-axis travel of 100 mm, B-axis ±110°, and a tool magazine with 24 positions. Ideal for complex machining tasks, it also comes equipped with a Siemens SINUMERIK 840D control system. If you are looking to get high-quality turn-mill capabilities, consider the DMG MORI Gildemeister CTX 1250 TC machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2012
- MODEL: Gildemeister CTX 1250 TC
- application type: Turning
- Location: South Korea
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI Gildemeister CTX 1250 TC
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D Ergoline
Movement
- Number of Axes: 4
Additional Information
Additional equipment
- Coolant pump 6 bar, 201 l/min
- Chuck rinsing device outside at main spindle
- Coolant equipment external on turning/milling spindle
- Hinged type chip conveyor, discharge height 1200 mm
- Cooling system for spindle motor, turning/milling spindle, and B-axis torque motor
- Connection for oil mist extractor
- Machine prepared for workpiece handling robot WH3 (front loading)
- Environmental packages for unstable supply and increased ambient temperature
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
