DMG MORI - NHX 5000GB-MIL-DMG-2018-00002

Name: DMG MORI NHX 5000
Brand: DMG MORI
SKU: GB-MIL-DMG-2018-00002
Price: 15727750 INR
Availability: InStock

Rs. 15,727,750

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI NHX 5000 Horizontal Machining center

Show in original language

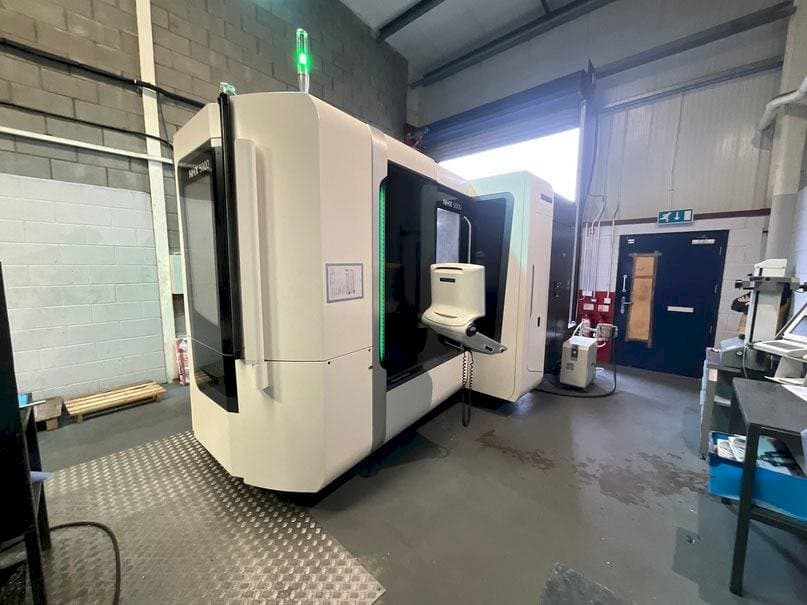

This DMG MORI NHX 5000 Horizontal Machining center was made in 2018. It is equipped with a CELOS M730UM control unit and has 4 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: DMG MORI
year: 2018
MODEL: NHX 5000
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
availability: Immediately

Technical Information - DMG MORI NHX 5000

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 30.7/ 26/ 18.5 kW
Number of axis: 4

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 730 mm
Z-AXIS Movement: 880 mm

Tools

Type of tool holder: No. 40 7/24 Taper (Two-Face Contact) /Grip MAS

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle option: center through-spindle coolant system
- - Spindle option: retention knob: special (center-through) (spindle no. 407/24 taper)
- - Table: full 4th axis rotary table
- - Pallet size : 500x500 mm
- - Options for table: pallet edge locator
- - Tool magazine: tool storage capacity 60 tools (spindle no. 40 7/24 taper
- - Coolant supply: usable coolant type: water-soluble, coolant supply: chip conveyor outside machine (rear discharge, drum filter type) (std coolant supply: through-spindle coolant system (mounted on coolant tank) (center through, 7. 0 mpa)
- - Coolant supply: coolant chiller (separate type), coolant supply: fixture washing coolant for setup station, coolant supply: mist collector interface (duct dia 200 mm (7. 875 in) + electric parts for hvs-220)
- - Measuring / monitoring: tool breakage detection system (magazine)
- - Automation: signal lamp 4 colors (red, yellow, green, blue) indicate machine status by the led color, automation: automatic door (setup station), automation: ethernet/ip interface, automation: robot interface (ethernet/ip)
Qualitative Machine Benefits:
- - General option: dry anchor,, general option: water-glycol chiller (chilling unit) (spindle cooling) general option: multi dry filter, general option: smc refrigerating type air dryer
- - General option: 10 external m-codes, general option: manual pulse generator (separate type), general option: setting unit mm, general option: mvc (machine vibration control)
- - Coolant supply: fixture washing coolant for setup station
- - Options for control: high-speed and high-precision function
- - Ii(high-precision contour control)
- - Options for control: installation of high-speed skip terminal
- - Option for control: additional workpiece coordinate systems 48 sets
- - Option for control: program restart
- - Option for control: manual handle interruption
- - Option for control: interruption type custom macro, option for control: custom macro common variables 600 in total (#100-#199, #500-#999) ,option for control: coordinate system rotation ,option for control: tool offsets 400 sets in total, option for control: screen display english

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
