DMG MORI - NHX6300PL-MIL-DMG-2018-00002

Name: DMG MORI NHX6300
Brand: DMG MORI
SKU: PL-MIL-DMG-2018-00002
Price: 33305800 INR
Availability: InStock

Rs. 33,305,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

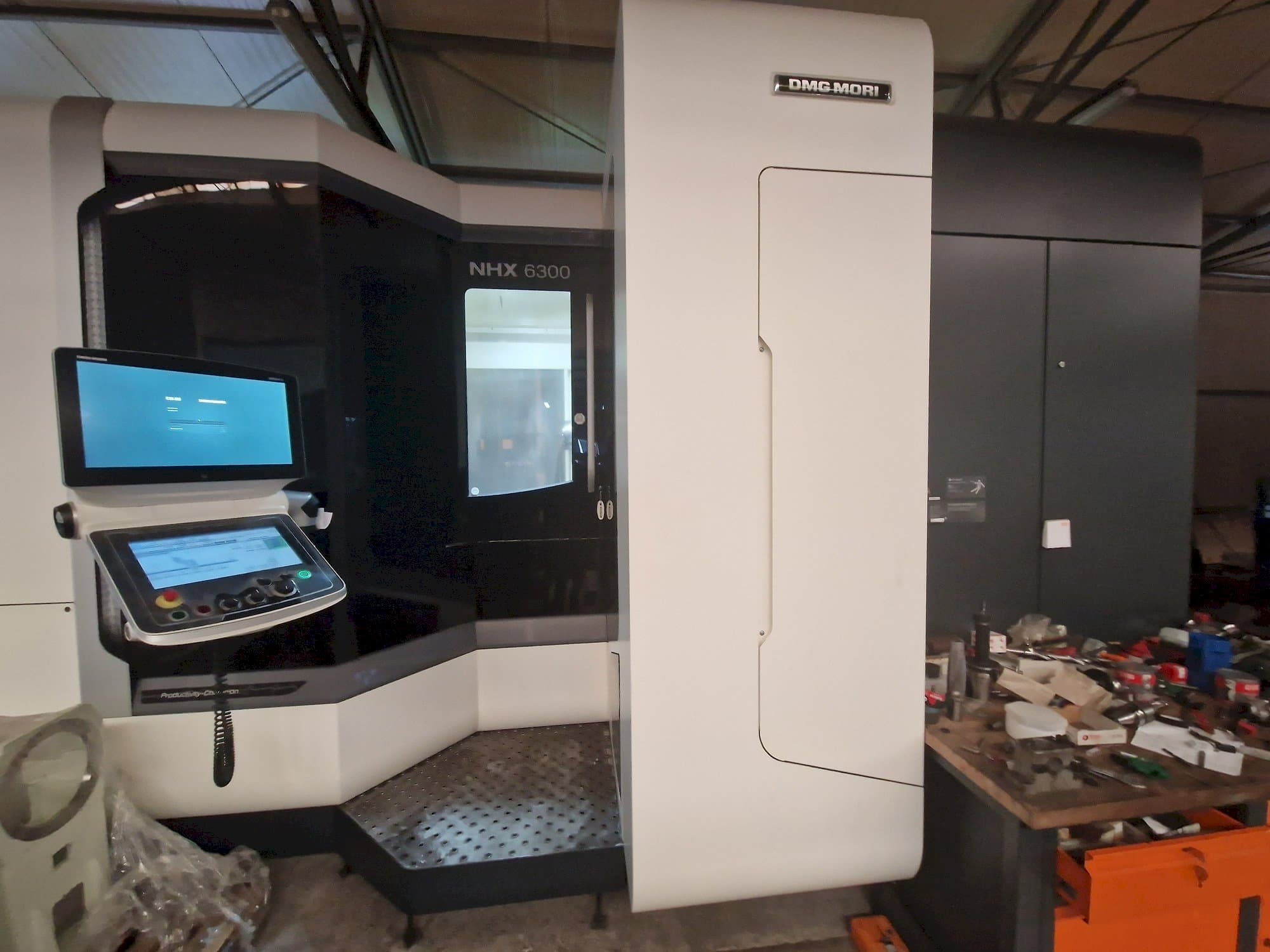

DMG MORI NHX6300 horizontal machining center

Show in original language

This DMG MORI NHX6300 horizontal machining center was made in the year 2018 in Japan and has 429 hours. It is equipped with a DMG MORI ERGOline, CELOS with FANUC control unit, and has 4 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: DMG MORI
year: 2018
MODEL: NHX6300
production hours: 429
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - DMG MORI NHX6300

General Data

Measurements width: 3930 mm
Measurements depth: 5823 mm
Measurements height: 3228 mm
Machine weight: 18750 kg

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 900 mm
Z-AXIS Movement: 1030 mm

Table

Outer length: 630 mm
Outer width: 630 mm
Table load: 1500 kg

Tools

Max weight: 30 kg
Max tool length: 630 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 cnc axes (x,y,z and b for rotation of the table)
- - Max workpiece dimensions: - dim. 1050 mm - height: 1300 mm - weight: 1500 kg
- - Two pallets and rotary pallet exchanger, pallet work surface each: 630 x 630 mm
- - Pallet changing time: 20 s
- - Tool storage capacity: 60 tools (ring type)
- - Tool change time from chip-to-chip: 4. 8 s
Qualitative Machine Benefits:
- - Machine in very good condition, full documentation available, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
