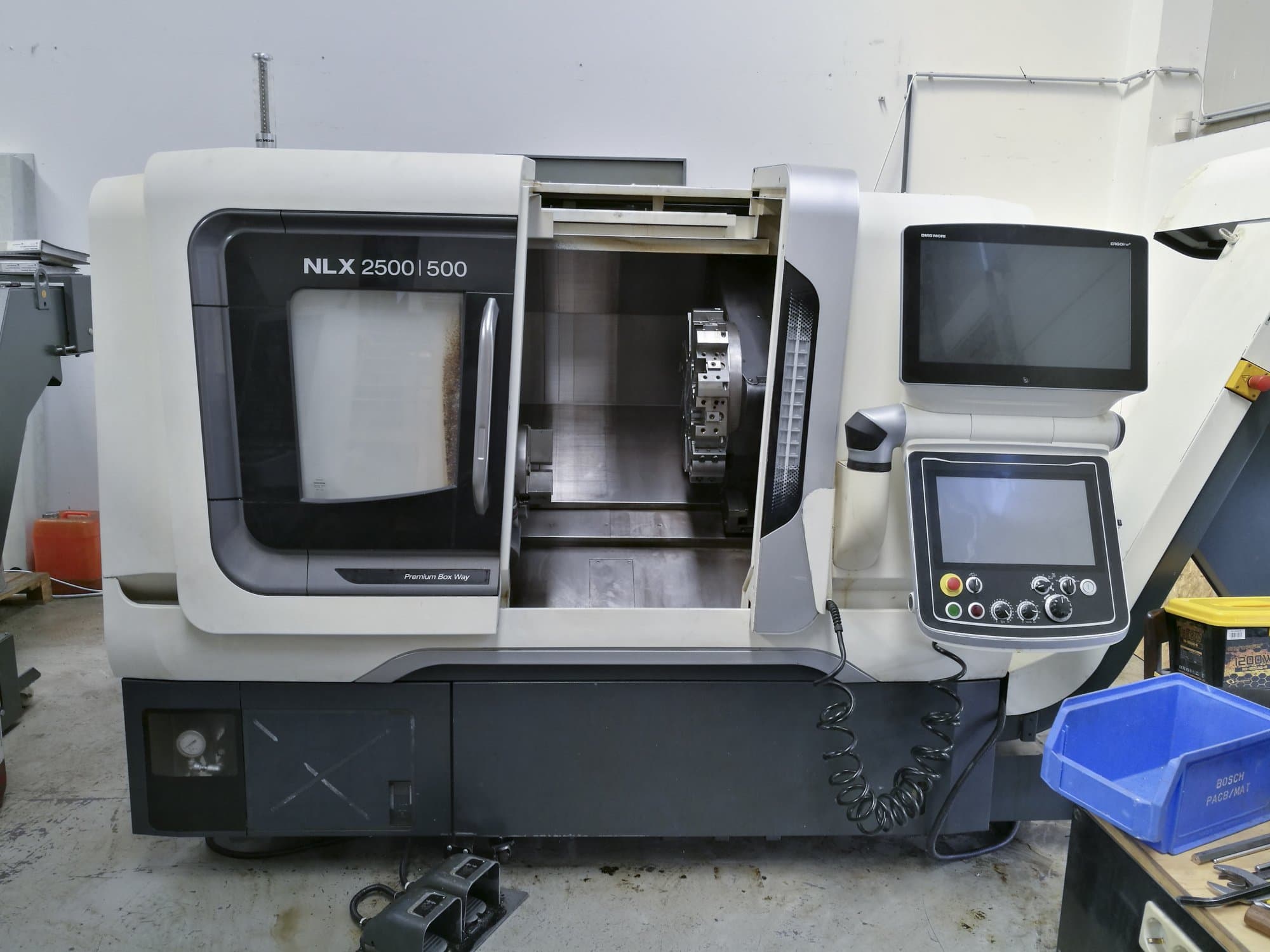

Front view of DMG MORI NLX 2500/500 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI NLX 2500/500

Photo Gallery

DMG MORI - NLX 2500/500HU-TUR-DMG-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI NLX 2500/500 Lathe

Show in original language

This Japanese DMG MORI NLX 2500/500 Lathe was built in 2014 and has 16310 hours, of which 5857 are spindle hours. Equipped with a DMG MORI ERGOLINE CELOS Control unit, this machine has mainly worked with steel in the past and comes with an additional power transformer as well as a tool setter.

Overview

brand: DMG MORI
year: 2014
MODEL: NLX 2500/500
production hours: 16310
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre
control unit brand: MITSUBISHI

Technical Information - DMG MORI NLX 2500/500

General Data

Measurements width: 2200 mm
Measurements depth: 1900 mm
Measurements height: 1826 mm
Machine weight: 4200 kg

Control Unit

Model: M-730UM
Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/min
Spindle motor power: STANDARD (18.5/15 KW)

Movement

X-AXIS Movement: 260 mm
Z-AXIS Movement: 500 mm

Turret

Number of turrets: 1

Media

Main electronic connection: 380 V - 50hz
Chip conveyor: Yes

Additional equipment

- Power transformer
- Tool setter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nominal bed length: 500 mm
- - Spindle (spindle 1) through-spindle hole dia. (mm): 91 mm dia.
- - Spindle (spindle 1) chuck type solid chuck (10")
- - Spindle (spindle 1) chuck manufacturer: kitagawa
- - Spindle (spindle 1) chuck cylinder stroke check: stroke end detection
- - Spindle (spindle 1) cooling unit: fan cooler
- - Spindle (spindle 1) orientation: provided (without lock)
- - Spindle rigid tapping: provided
- - Turret (turret 1) type of turret: 10
- - Stations turret (turret 1) tool mounting method: by bolts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Specificaitons.pdf
