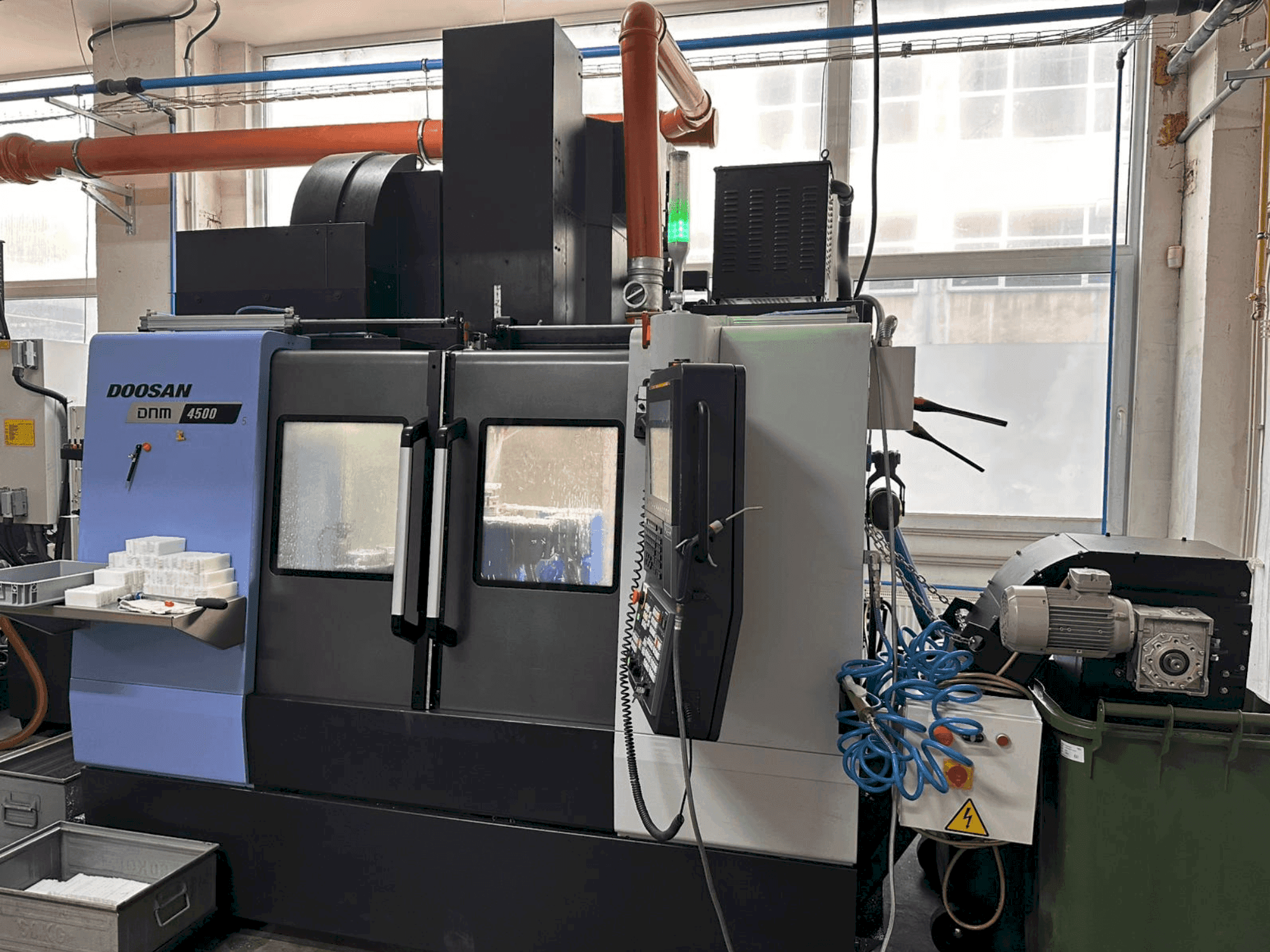

DOOSAN DNM 4500

Photo Gallery

DOOSAN - DNM 4500CZ-MIL-DOO-2020-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN DNM 4500 For Sale | gindumac.com

Show in original language

This 5-axis DOOSAN DNM 4500 was manufactured in 2020, featuring a robust 5000 kg weight and comprehensive control with a Fanuc i series Plus. It includes a Kitagawa TT200 2-axis rotary table for enhanced 5-axis machining, a Renishaw probe system, and a high-capacity chip conveyor. Ideal for complex machining tasks with a spindle speed of 8000 rpm and 30 tool positions. Contact us for more information about this machine.

Overview

brand: DOOSAN
year: 2020
MODEL: DNM 4500
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 4500

Control Unit

Brand: FANUC

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 450 MM
Z-AXIS Movement: 510 MM

Media

Chip conveyor: Yes

Additional equipment

- Tool Positions: 30 / Features: Renishaw tool and workpiece probe
- Chip Conveyor / LNS Chiblaster 70 bar Central Cooling / Automatic Door / Blow Gun / Rinse Gun / Kitagawa TT200 2-axis Rotary Table enables 5-axis Machining

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): 2158x2615x2985 mm / weight: 5000 kg
- - Spindle speed: 8000 rpm / main motor power (continuous / 15 min. ): 11/18. 5 kw / spindle taper: iso 40
- - Axes: 5 (3+2 axes)
- - Rapid traverse of axes (x/y/z): 36/36/30 m/min/ working feed of axes (x/y/z max. ): 15000 mm/min
- - Dimensions: 1000x450 mm / max. Table load: 600 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
