DOOSAN DNM 4500

Photo Gallery

DOOSAN - DNM 4500KR-MIL-DOO-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

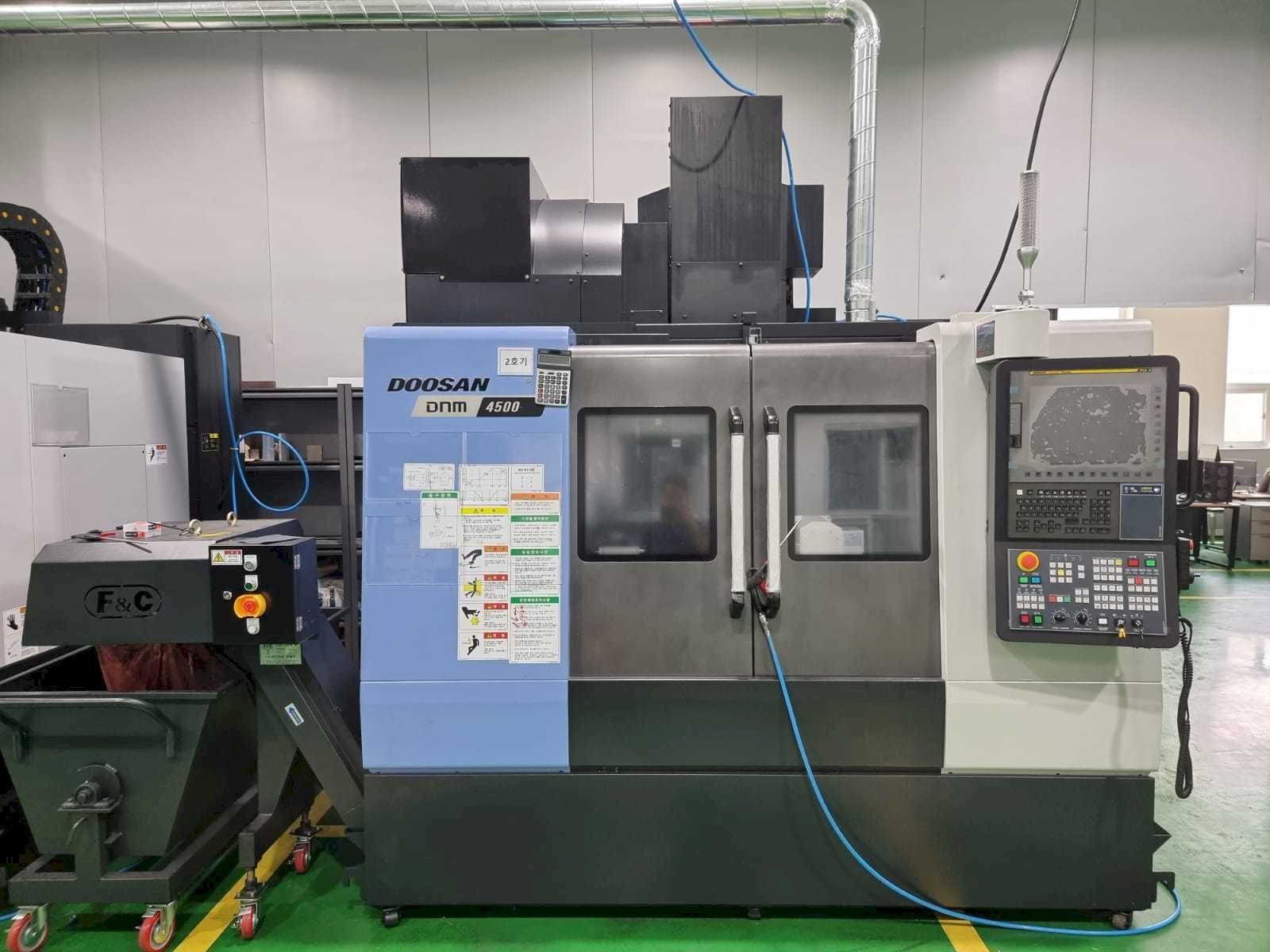

Doosan DNM 4500 Vertical Machining Center

Show in original language

This Doosan DNM 4500 Vertical Machining Center was made in 2020. This 4 axis machine operates through a DOOSAN - FANUC i Series control unit. It has a spindle speed up to 12000 rpm. The machine comes with a spindle head cooling system and manual books. 10 units are available.

Overview

brand: DOOSAN
year: 2020
MODEL: DNM 4500
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 4500

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1000 mm
Outer width: 450 mm

Tools

Type of tool holder: BT40

Media

Main electronic connection: 220V - 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Mpg handle
Manual books
Ce mark

Technical Machine Benefits

4 axis: nc rotary table. Model: rcd200 (brand:sankyo) made in japan
Magazine capacity : 30ea
Spindle direct type
Spindle head cooling system
Air blower
Data server 1gb
Aicc 200 blocks
Smooth surface package (ssp)
Lm guideway type
Call right(led 3 step)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

NC Rotary Table.pdf
