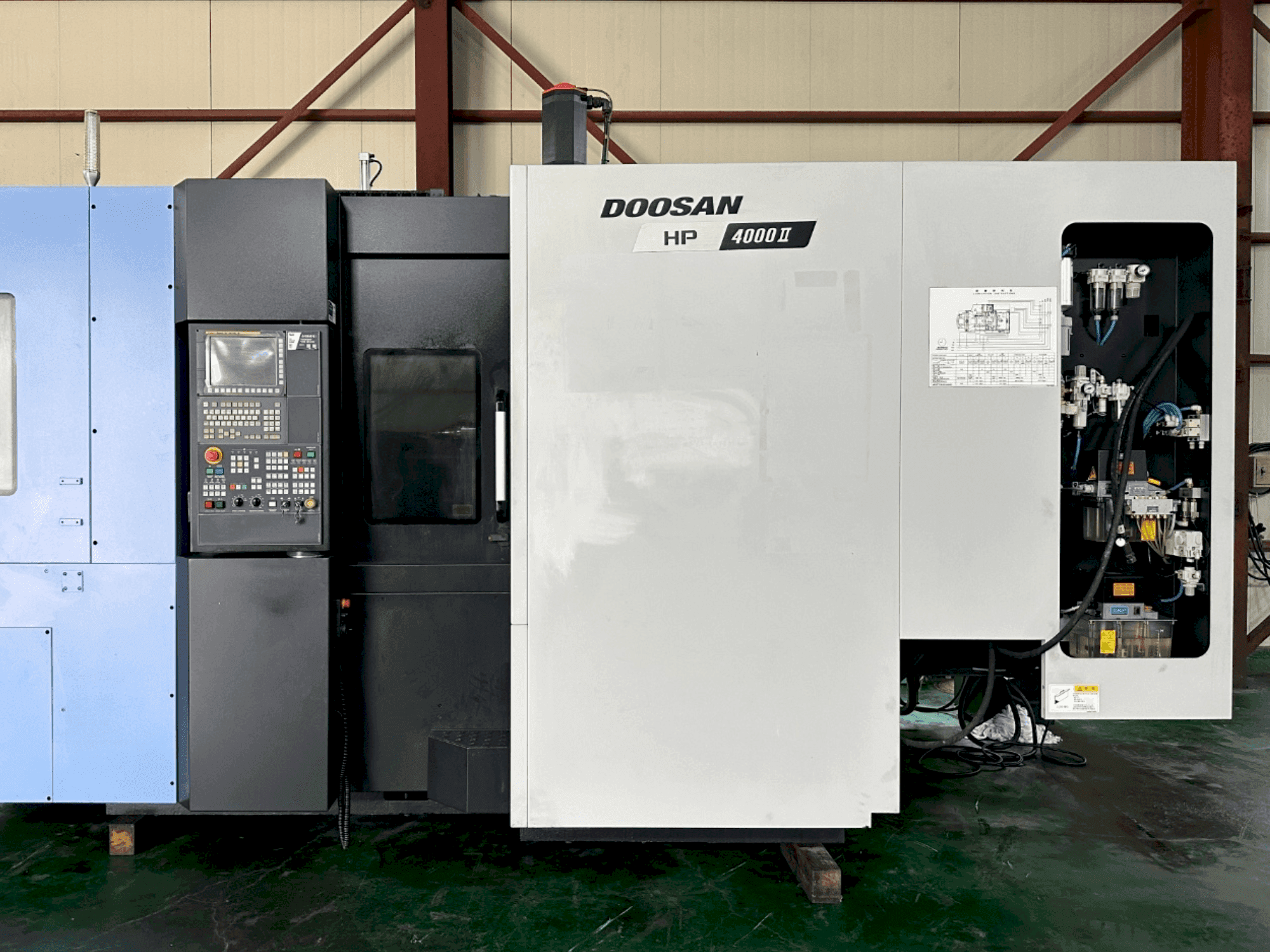

This horizontal machining center was manufactured in 2017. Equipped with a Fanuc 31i-B control, it features a spindle speed of 20,000 RPM and a through-spindle coolant system. The dual table setup, each measuring 400x400 mm, supports a load of up to 400 kg. Additional features include a 40 ATC, chip conveyor, and Doosan tool load monitoring. For more information about this horizontal machining center, please reach out to us.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: HP 4000 II
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN HP 4000 II
Control Unit
- Brand: FANUC
- Model: 31i-B
Main drive
- Spindle speed range: 20000 1/MIN
- Spindle motor power: 1.5 kW
- Tool taper: HSK-A63
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 560 mm
- Z-AXIS Movement: 600 mm
Table
- Outer length: 400 mm
- Outer width: 400 mm
- Table load: 400 kg
Additional equipment
- - Dual table
- - Bucket
- - Used HSK-A63 tools
- - Shower coolant
- - Air blower
- - Doosan tool load monitoring
- - Chip conveyor
- - Hydraulic jig line
- - Tower lamp
- - English manual books
Additional Information
- Technical Machine Benefits:
- - Aicc 200 blocks, high spindle rpm, through spindle coolant
- - Indexing c-axis: 1º
- Qualitative Machine Benefits:
- - High precision tool taper, dual table configuration
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
