DOOSAN HP 5100 II

Photo Gallery

DOOSAN - HP 5100 IISK-MIL-DOO-2016-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan HP 5100 II

Show in original language

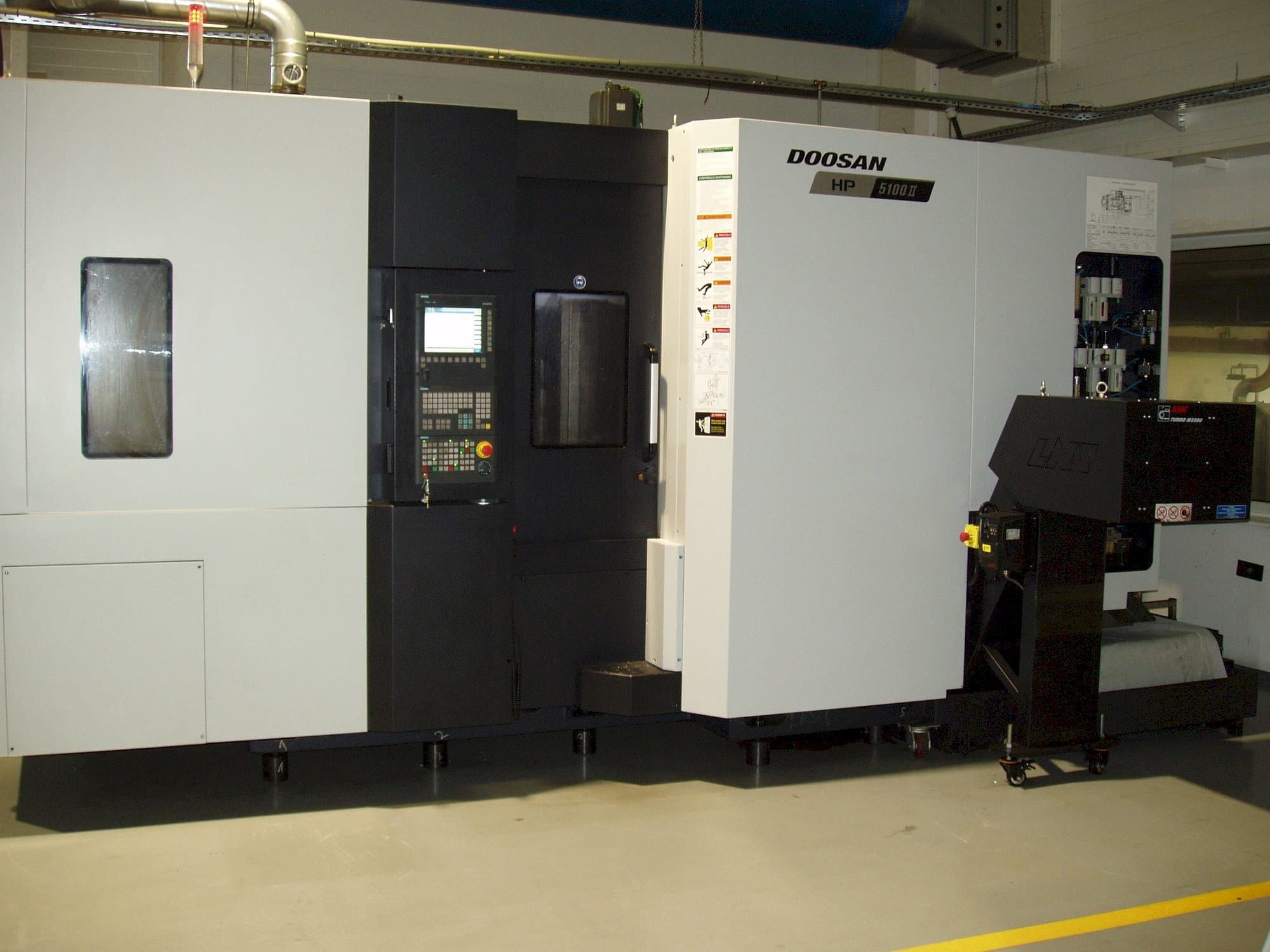

This Doosan HP 5100 II Horizontal Machining Center from 2016 was built in Korea. It has a record of only 3070 cutting hours. This 4 axis machine is operated through a SIEMENS Sinumerik 840 control unit. It stands out for its spindle speed up to 14000 rpm. This showroom machine was purchased as new in 2019 and is in very good condition.

Overview

brand: DOOSAN
year: 2016
MODEL: HP 5100 II
production hours: 3070
application type: Milling
Location: Slovakia
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - DOOSAN HP 5100 II

General Data

Machine weight: 15000 kg

Control Unit

Model: Sinumerik 840
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Spindle motor power: (30 min/cont.) 22/18.5 kW
Number of axis: 4

Movement

X-AXIS Movement: 850 MM
Y-AXIS Movement: 700 MM
Z-AXIS Movement: 750 MM

Workpiece

Workpiece weight: 500 KG

Table

Outer length: 500 MM
Outer width: 500 MM

Tools

Slots in storage: 40
Max weight: 10 KG
Max tool diameter: 75 MM
Max tool length: 400 MM
Type of tool holder: ISO 40

Media

Main electronic connection: 400 V 50/60 HZ
Power consumption: 60 KVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
Showroom machine purchased as new in 2019

Technical Machine Benefits

2 pallets
Paper band filtration

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
