DOOSAN Lynx 2100A

Photo Gallery

DOOSAN - Lynx 2100ACZ-TUR-DOO-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

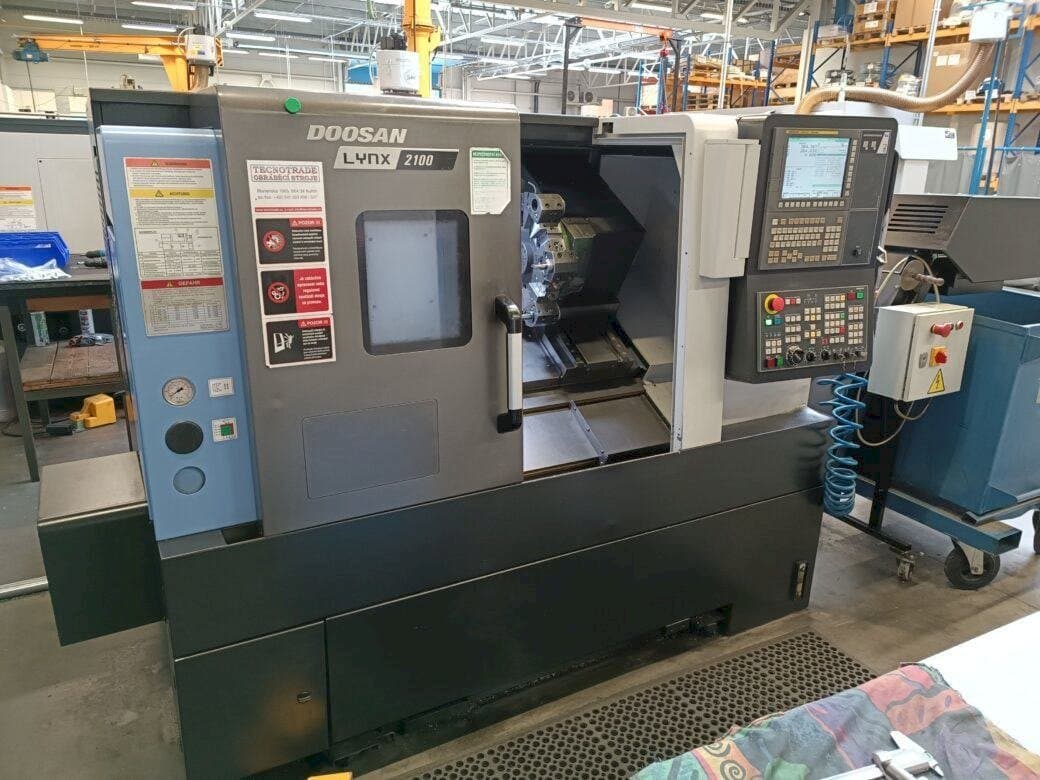

Doosan Lynx 2100A Lathe

Show in original language

This Doosan Lynx 2100A Lathe was made in 2017 in South Korea and has 5122 production hours. It is equipped with a Fanuc i-Series control unit and has 2 axis. The machine has a spindle speed of 6000 rpm, is in good condition, and is well maintained.

Overview

brand: DOOSAN
year: 2017
MODEL: Lynx 2100A
production hours: 5122
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100A

General Data

Measurements width: 2570 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 2700 kg

Control Unit

Model: i-Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 340 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 24,21 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 600 mm, over carriage 400 mm
- - Maximum machining diameter 350 mm
- - Maximum machining length 330 mm
- - Through hole diameter 52 mm
- - Main spindle motor power 15 kw
- - Rapid feedrates xz: 30 x 36m/minute
- - Spindle nose a2-6
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
