DOOSAN Lynx 300

Photo Gallery

DOOSAN - Lynx 300GB-TUR-DOO-2011-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

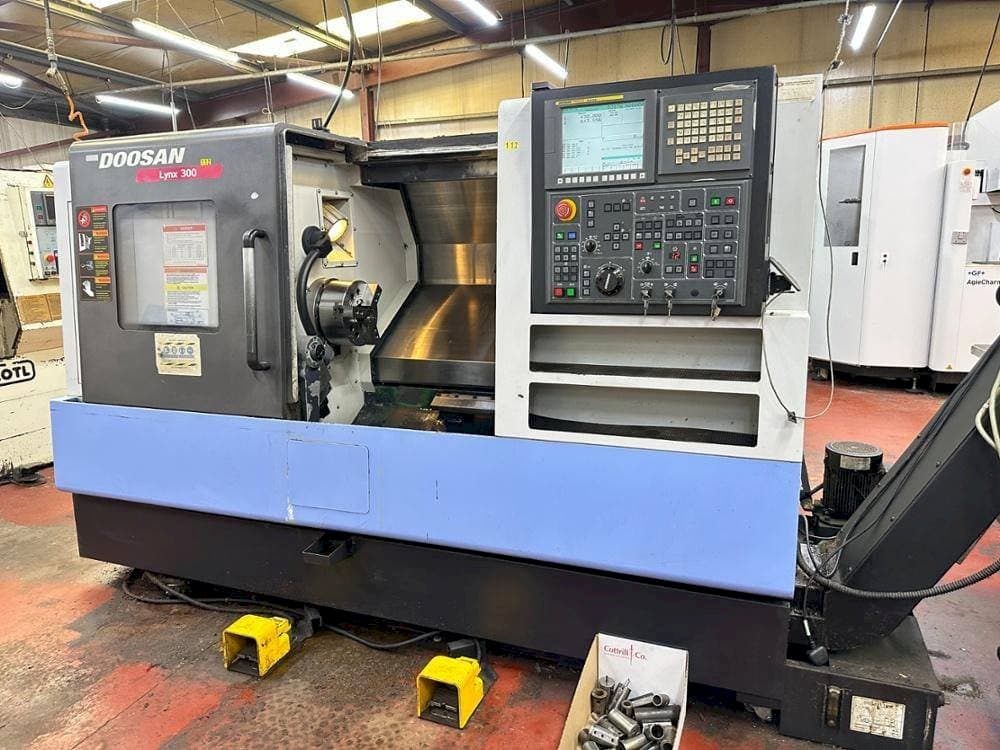

Doosan Lynx 300 Lathe

Show in original language

This Doosan Lynx 300 Lathe was manufactured in the year 2011 in South Korea. It is equipped with a Fanuc Series Oi control unit and has 2 axis. The machine has a spindle speed of 3500 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Lynx 300
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 300

General Data

Measurements width: 3035 mm
Measurements depth: 1785 mm
Measurements height: 1715 mm
Machine weight: 4000 kg

Control Unit

Model: Series Oi
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 255 mm
Z-AXIS Movement: 790 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 651 mm, over carriage 461 mm
- - Maximum cutting diameter: 450 mm
- - Maximum cutting length: 765 mm
- - Bar capacity 76 mm
- - Spindle motor power 15/11 kw
- - Spindle bore: 86 mm
- - Tailstock quill diameter: 80 mm, stroke 120 mm, taper mt #4
- - Rapid feedrates:xz: 24 x 30m/min
- - Swarf conveyor, tool setter, interlocked guards
- - 3 jaw chuck 12"
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
