Doosan Lynx 300M Lathe

Show in original language

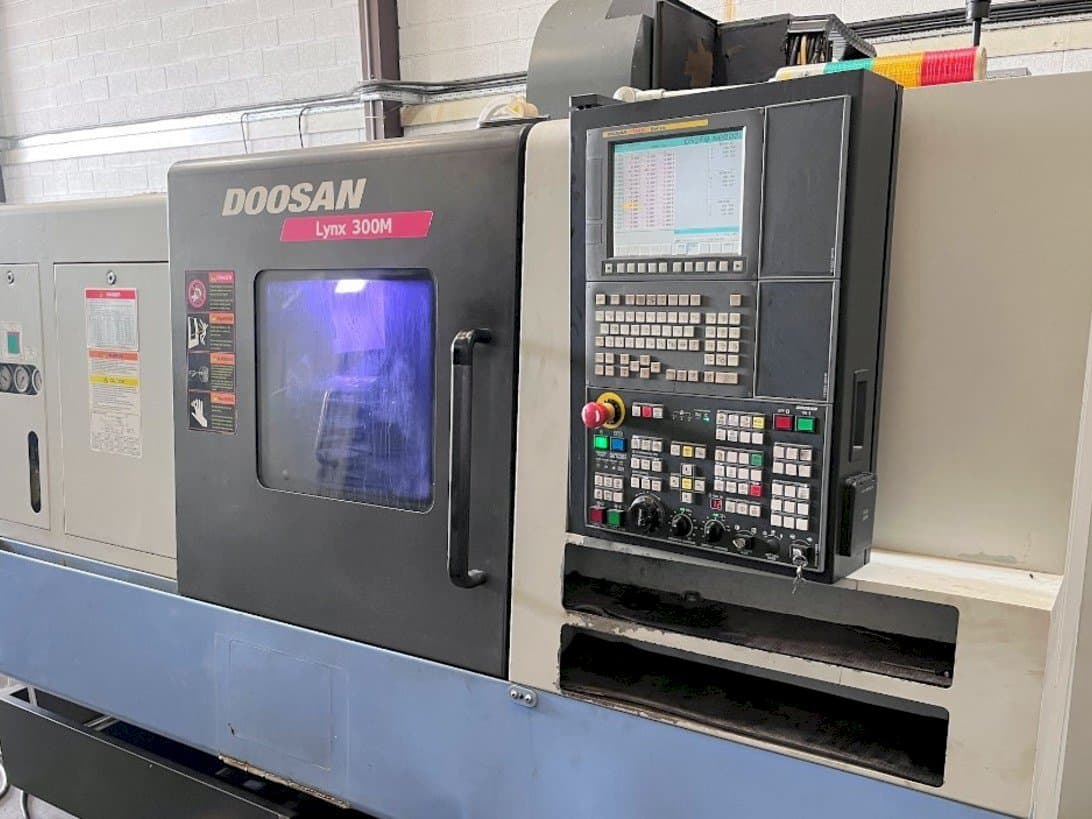

This Doosan Lynx 300M Lathe was manufactured in the year 2014 in South Korea. It is equipped with a FANUC OI WITH EZI GUIDE control unit and has 3 axis. It is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 300M
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 300M

General Data

Measurements width: 3035 mm
Measurements depth: 1785 mm
Measurements height: 1715 mm
Machine weight: 4050 kg

Control Unit

Brand: FANUC

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 255 mm
Z-AXIS Movement: 790 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: BMT 55

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 651 mm, over carriage 461 mm
- - Maximum machining diameter 370 mm
- - Maximum machining length 712 mm
- - Bar capacity 76 mm
- - Spindle motor power 15 kw
- - Turret milling power 5. 5/7. 5kw, speed 5000 rpm
- - 0. 001 degree c axis
- - Tool setter, tooling
- - "chuck size 305mm"
- - Tailstock (taper mt #4, quill dia. 80 mm, stroke 120 mm)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
