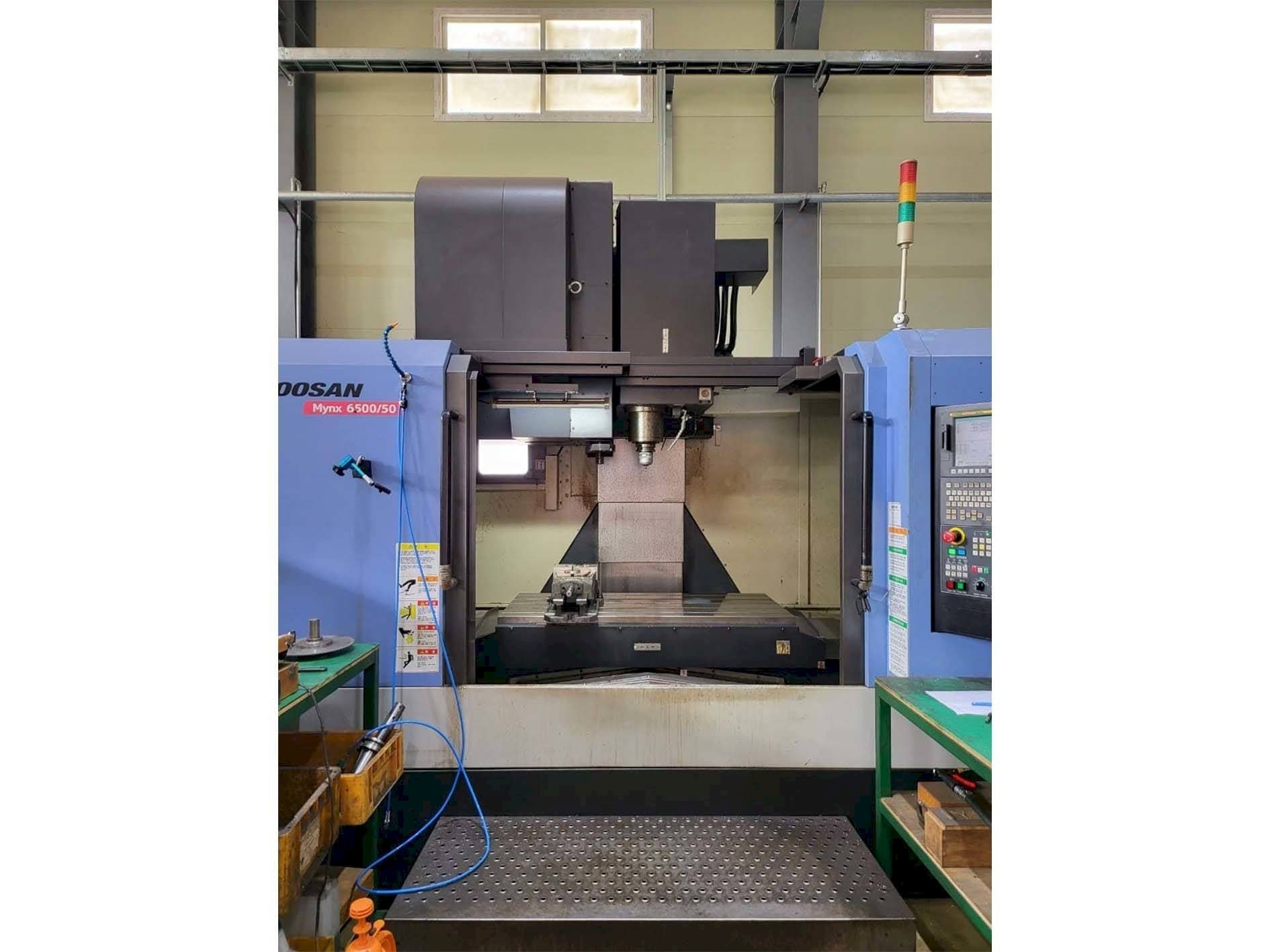

Front view of Doosan MYNX 6500/50 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN MYNX 6500/50

Photo Gallery

DOOSAN - MYNX 6500/50KR-MIL-DOO-2015-00005

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Doosan Mynx 6500/50 Vertical Machining Center

Show in original language

This Doosan MYNX 6500/50 Vertical Machining Center was manufactured in Korea in the year 2015. This 3 axis machine counts with a Fanuc-i control unit. It incorporates a spindle speed up to 6000 rpm and a table size of 1400 x 670 mm.

Overview

brand: DOOSAN
year: 2015
MODEL: MYNX 6500/50
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre

Technical Information - DOOSAN MYNX 6500/50

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 670 mm
Z-AXIS Movement: 625 mm

Table

Outer length: 1400 mm
Outer width: 670 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

Tsc 20bar
Chip bucket
Spindle belt type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
