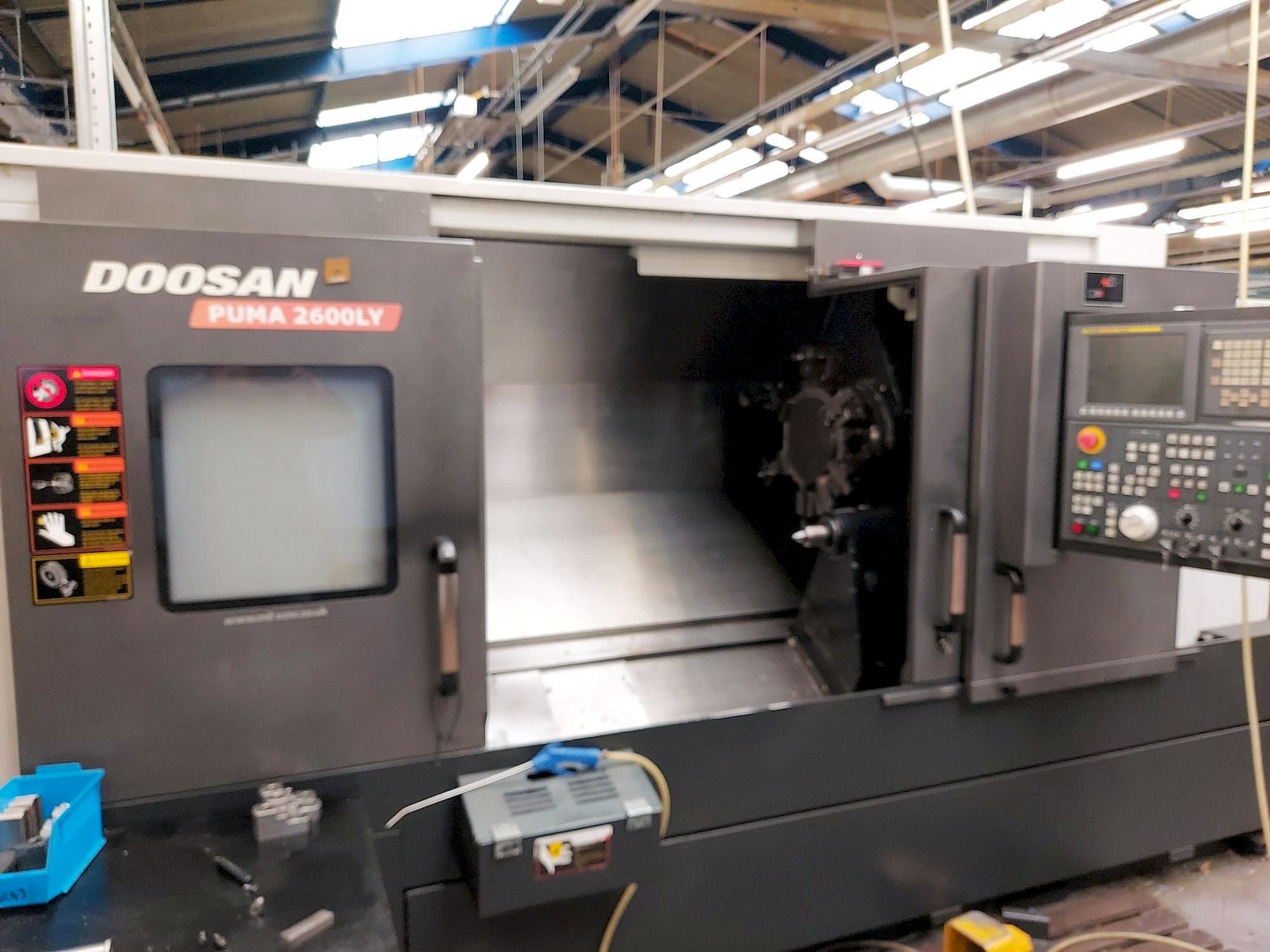

Front view of Doosan Puma 2600LY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma 2600LY

Photo Gallery

DOOSAN - Puma 2600LYGB-TUR-DOO-2011-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma 2600LY lathe machine

Show in original language

This Doosan 2600LY lathe machine was manufactured in South Korea in the year 2011. This 4 axis machine operates through a DOOSAN - FANUC i Series control unit. The machine has a spindle speed of to 3500 rpm. This machine is in very good condition.

Overview

brand: DOOSAN
year: 2011
MODEL: Puma 2600LY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600LY

General Data

Measurements width: 5389 mm
Measurements depth: 1965 mm
Measurements height: 1863 mm
Machine weight: 7300 KG

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 260 MM
Y-AXIS Movement: 52.5 MM
Z-AXIS Movement: 1350 MM

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional equipment

- Bar feeder IEMCA KID80

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 780 mm, over carriage 630 mm
- - Maximum machining diameter 376 mm
- - Maximum machining length 1280 mm
- - Bar capacity 76 mm
- - Main spindle motor power 22/15 kw
- - Turret milling power 5. 5 kw; speed 5000 rpm
- - 0. 001 degree c axis
- - Tool setter, parts catcher, coolant, barfeed
- - Collet chuck, 3 jaw chuck
- - Tailstock (taper mt #5, quill diameter & stroke 100 mm)

Extra information

- 4 controlled axes (X, Z, C, Y)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
