➤ Used Doosan Puma 2600Y | Lathe For Sale

Show in original language

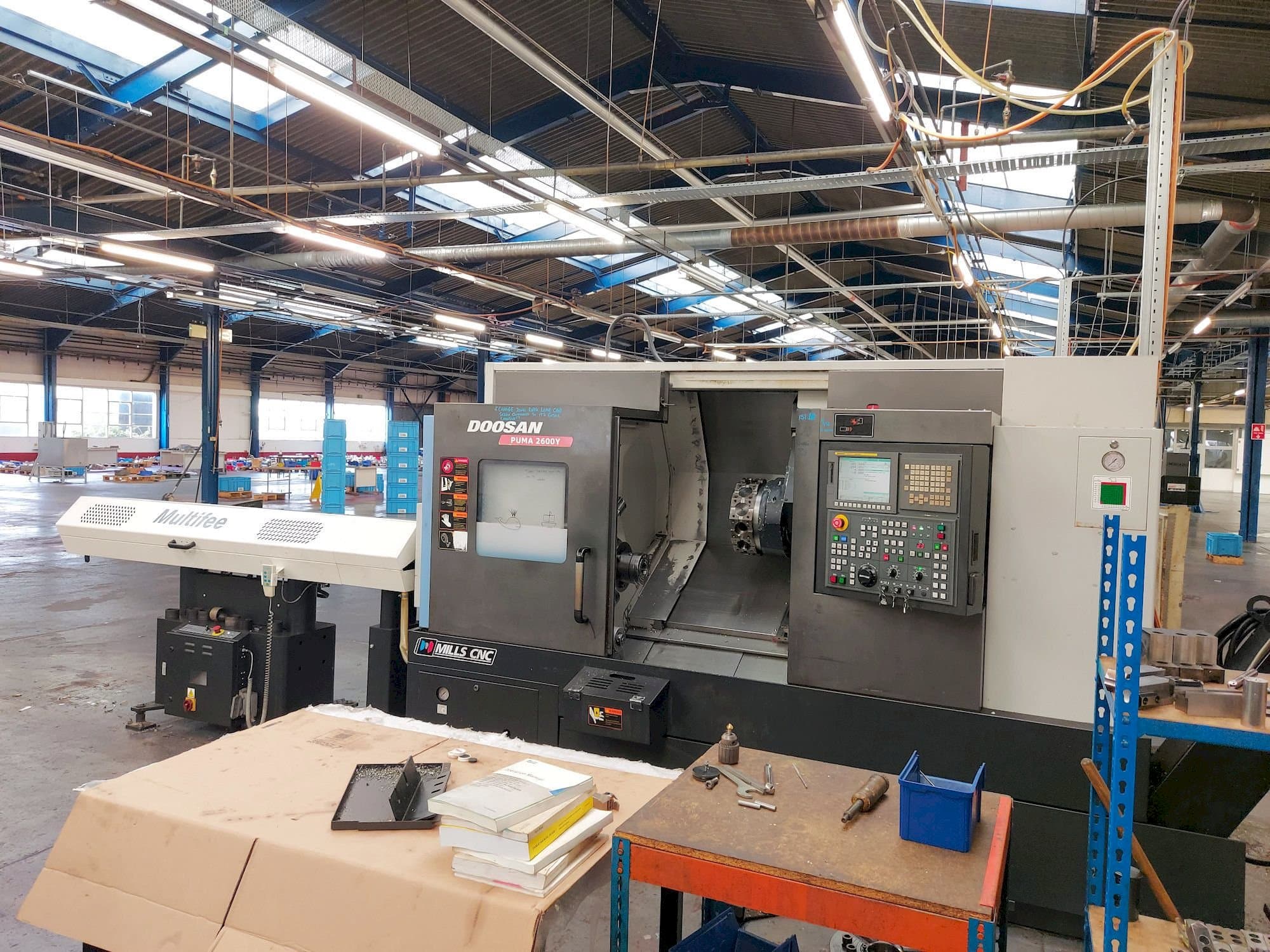

This Doosan 2600Y Lathe Machine was manufactured in 2012 in South Korea. It operates through a Fanuc i Series control unit. This 4 axis machine has a spindle speed up to 3500 rpm. It is in very good condition.

Overview

brand: DOOSAN
year: 2012
MODEL: Puma 2600Y
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600Y

General Data

Measurements width: 4600 mm
Measurements depth: 1965 mm
Measurements height: 1863 mm
Machine weight: 6000 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: +/- 52.5 mm
Z-AXIS Movement: 830 mm

Turret

Number of turrets: 1

Media

Chip conveyor: Yes

Additional equipment

- Bar feeder HYDRAFEED MX-1B

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Slots in storage: 24
- - Swing over bed 780 mm, over carriage 630 mm
- - Maximum machining diameter: 376 mm
- - Bar capacity: 76 mm
- - Maximum machining length: 760 mm
- - Main spindle motor power 15/22 kw
- - Turret milling power 7. 5 kw; speed 5000 rpm
- - 0. 001 degree c axis
- - Tool setter, parts catcher, coolant
- - Collet chuck, collets
Qualitative Machine Benefits:
- - Tailstock (taper mt #5, quill dia. 100 mm)
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
