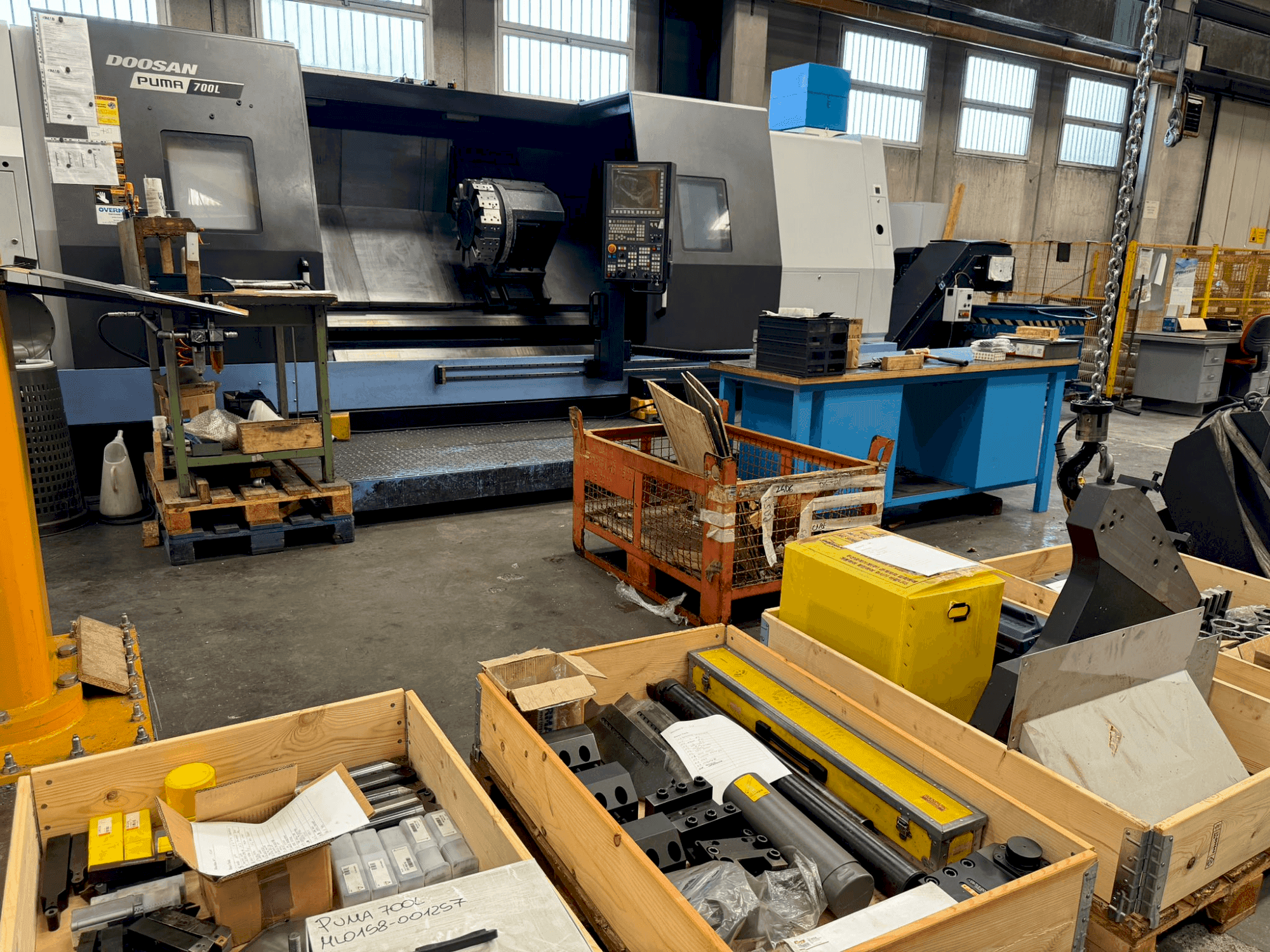

Front view of DOOSAN PUMA 700L (2020) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA 700L

Photo Gallery

DOOSAN - PUMA 700LIT-TUR-DOO-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN PUMA 700L - 2020 - Lathe For sale

Show in original language

This DOOSAN PUMA 700L lathe was manufactured in 2020. It features a FANUC control unit, maximum swing of 1030 mm, and a cutting length up to 3200 mm. The machine is equipped with a chip conveyor and a steady rest, enhancing its robust turning capabilities. With a bar capacity of 164 mm and chuck size of 609 mm, it efficiently handles substantial workpieces. Consider buying this DOOSAN PUMA 700L lathe. Reach out for more information.

Overview

brand: DOOSAN
year: 2020
MODEL: PUMA 700L
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA 700L

General Data

Measurements width: 2770 mm
Measurements depth: 8510 mm
Measurements height: 2590 mm
Machine weight: 21800 kg

Control Unit

Brand: FANUC

Main drive

Number of axis: 2

Movement

X-AXIS Movement: 470 mm
Z-AXIS Movement: 3235 mm

Workpiece

Workpiece drm: 900 mm

Media

Chip conveyor: Yes

Additional equipment

- STEADY REST

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 1030 mm
- - Swing over the cross-slide: 800mm
- - Maximum cutting diameter : 900mm
- - Maximum cutting length: 3200mm
- - Bar capacity: 164mm
- - Chuck size: 609mm
- - Large swing and maximum cutting diameter, extensive cutting length capability
Qualitative Machine Benefits:
- - Precision control with fanuc, robust construction for stability

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
