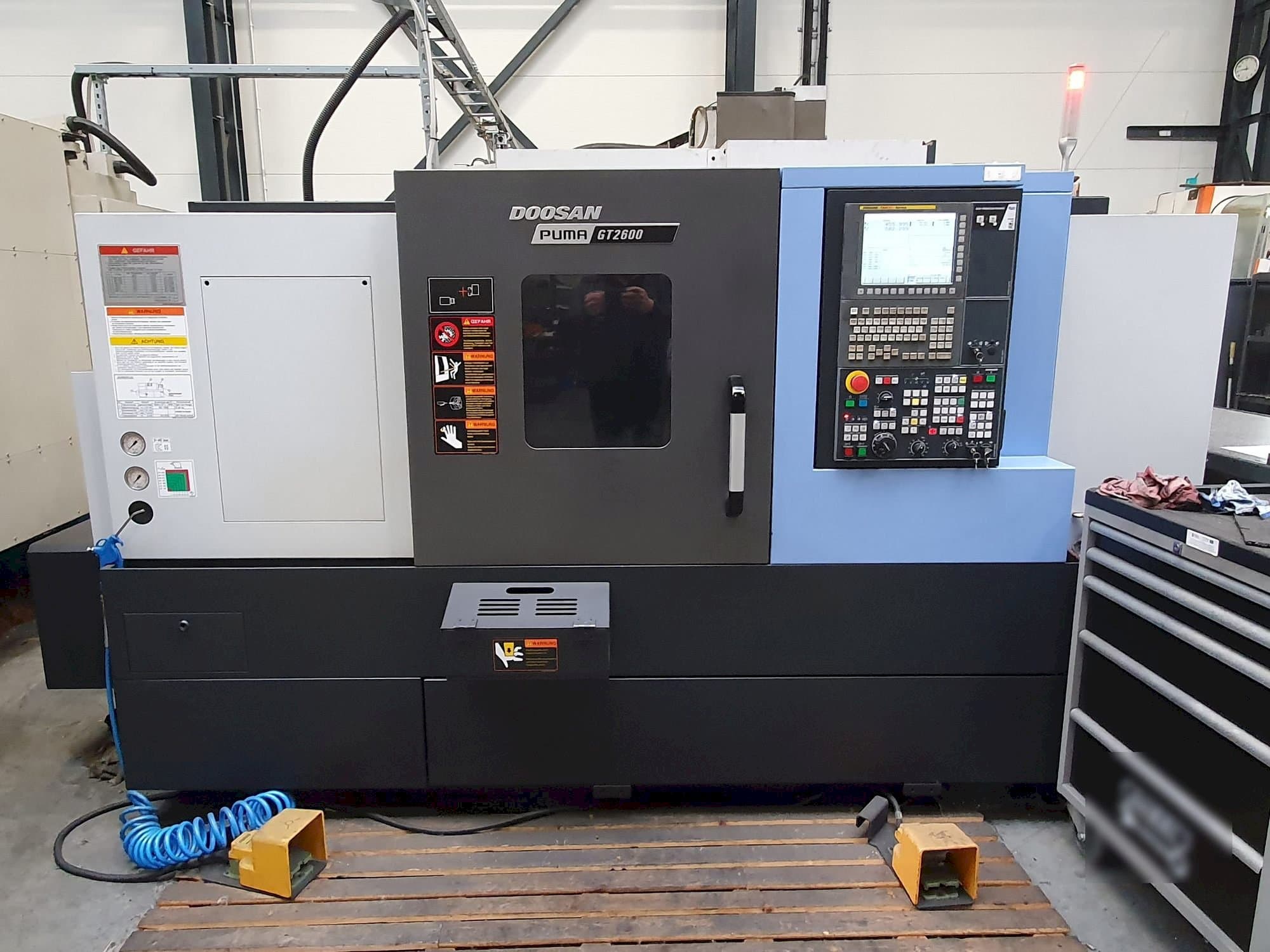

Front view of Doosan PUMA GT2600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN PUMA GT2600

Photo Gallery

DOOSAN - PUMA GT2600PL-TUR-DOO-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan PUMA GT2600 Lathe

Show in original language

This Doosan GT2600 Lathe was manufactured in Korea in 2017. It shows 226 production hours. This 2 axis machine is equipped with a FANUC i Plus control unit. It operates with a spindle speed of 3500 rpm. It comes with some accessories and full documentation. The machine is in perfect condition, not used at the production. Ready for tests.

Overview

brand: DOOSAN
year: 2017
MODEL: PUMA GT2600
production hours: 226
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN PUMA GT2600

General Data

Measurements width: 3290 mm
Measurements depth: 1632 mm
Measurements height: 1700 mm
Machine weight: 4700 KG

Control Unit

Model: i Plus
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22 / 158.5 kW
Number of axis: 2

Movement

X-AXIS Movement: 265 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 620 mm
Z-AXIS Rapid traverse: 30 m/min

Tools

Number of stations: 10 pcs

Media

Main electronic connection: 380V - 50/60 Hz
Power consumption: 35 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Quill di. : 100 mm
Quill bore taper: mt5
Cooler tank capacity: 268 liters
Machine is in perfect condition, not used at the production
Full documentation available
Ready for tests
Some accessories included
There are no tooling included

Technical Machine Benefits

Swing over bed: 630 mm
Swing over saddle: 460 mm
Max turning dia. : 460 mm
Max turning length: 658 mm
Max. Torque: 622 nm
Chuck size: 10 inch
Tail stock travel: 680 mm
Bar working dia. : 81 mm
Spindle through hole: 91 mm
Spindle bearing dia. : 140 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
