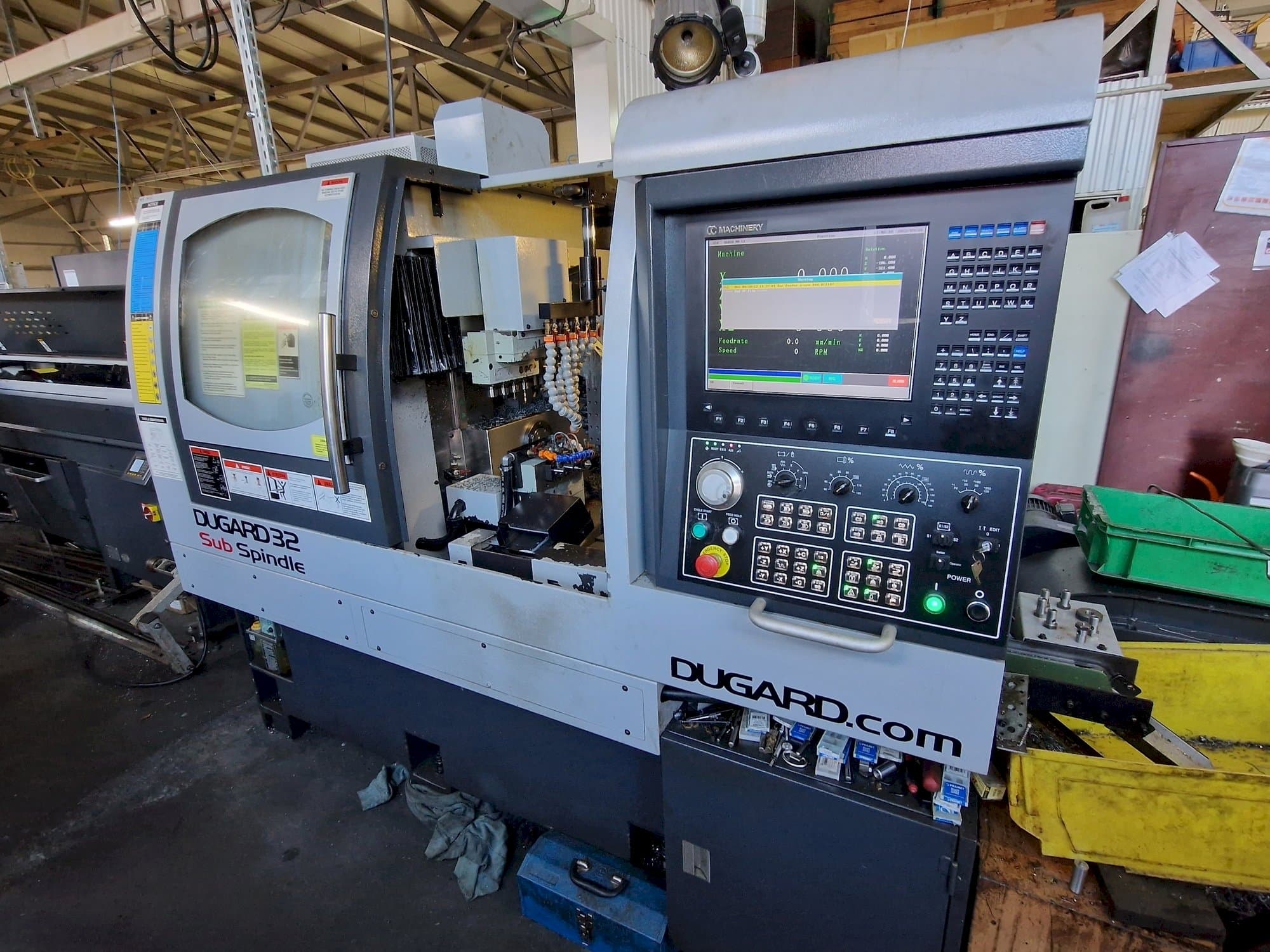

Dugard 32 Sub Spindle Automatic Lathe

Show in original language

This Dugard 32 Sub Spindle Automatic Lathe was manufactured in the year 2014. It is equipped with a CC Machinery control unit. The machine has a spindle speed of 4000 rpm, and includes a Bar feeder BARLOAD VITO – 4 meters and a Set of collets as additional equipment.

Overview

brand: Dugard
year: 2014
MODEL: 32 Sub Spindle
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Dugard 32 Sub Spindle

General Data

Measurements width: 1500 mm
Measurements depth: 2420 mm
Measurements height: 1935 mm
Machine weight: 3800 kg

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 185 mm
Y-AXIS Movement: 490 mm
Z-AXIS Movement: 165 mm

Additional equipment

- Bar feeder BARLOAD VITO – 4 meters
- Set of collets

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning dia. 32mm
- - Max bar feeding dia. : 32mm
- - Rapid travel speed (x, y, z axis) 30 m/min
- - Spindle servo motor 5kw
- - X axis servo motor 1. 5kw
- - Y, z axis servo motor 1. 0kw
- - Centre height: 965mm
- - Number of radial live tooling – 4 pcs
- - Radial tooling size er-20
- - Radial live tooling servo motor 1,5 kw
Qualitative Machine Benefits:
- - Radial live tooling max speed 6000 rpm
- - Number of axial live tooling 3
- - Axial tooling size er-20 axial live tooling servo motor 0,75 kw axial live tooling max speed 6000 rpm
- - Maximum turning dia. : 32mm sub spindle max rpm 4000rpm
- - X, z axis rapid travel 30 m/min minimum input unit 0. 001mm
- - Number of turning tools 4
- - Sub spindle servo motor 3. 5kw y, z axis servo motor 1kw
- - Number of axial live tooling 4 axial live tooling servo motor 0. 75kw axial live tooling maximum speed 6000rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
