Dugard LUNAN 500A

Show in original language

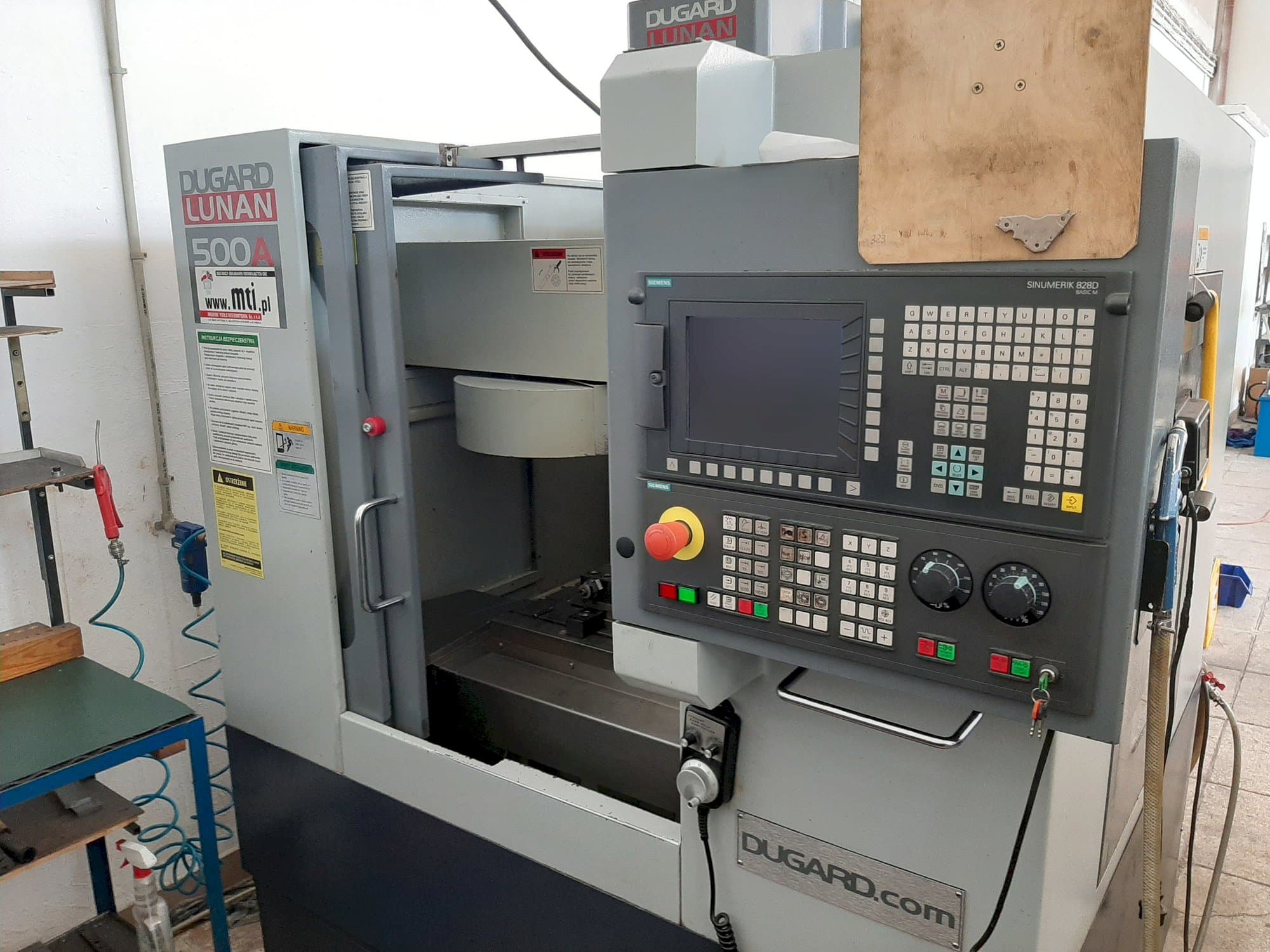

This Dugard LUNAN 500A vertical machine center was made in 2013. It is operated through a SIEMENS Sinumerik 828D control unit. This 3 axis machine has a spindle center to column of 360 mm and a table size of 800 x 320 mm. It is in very good working condition and with its full documentation available.

Overview

brand: Dugard
year: 2013
MODEL: LUNAN 500A
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Dugard LUNAN 500A

General Data

Measurements width: 1600 MM
Measurements depth: 1840 MM
Measurements height: 2110 mm
Machine weight: 2500 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle motor power: 5.5 kW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 18000 mm/min
Y-AXIS Movement: 320 mm
Y-AXIS Rapid traverse: 18000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 18000 mm/min

Table

Outer length: 800 MM
Outer width: 320 mm
Table load: 300 kg

Tools

Max weight: 5 kg
Max tool diameter: 100 mm
Max tool length: 200 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 25 KVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is in very good working condition.
Today it is out of the production.
Full documentation available.

Technical Machine Benefits

Spindle nose to table 120-520 mm
Spindle center to column 360 mm
Umbrella type atc 10 tools
Tool change time 6 secs (umbrella)
Positioning accuracy x/y/z axis 0. 02 mm, 0. 012 mm
Re-positioning accuracy x/y/z axis 0. 012 mm, 0. 008 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
