DYE FB-3600 Milling machine

Show in original language

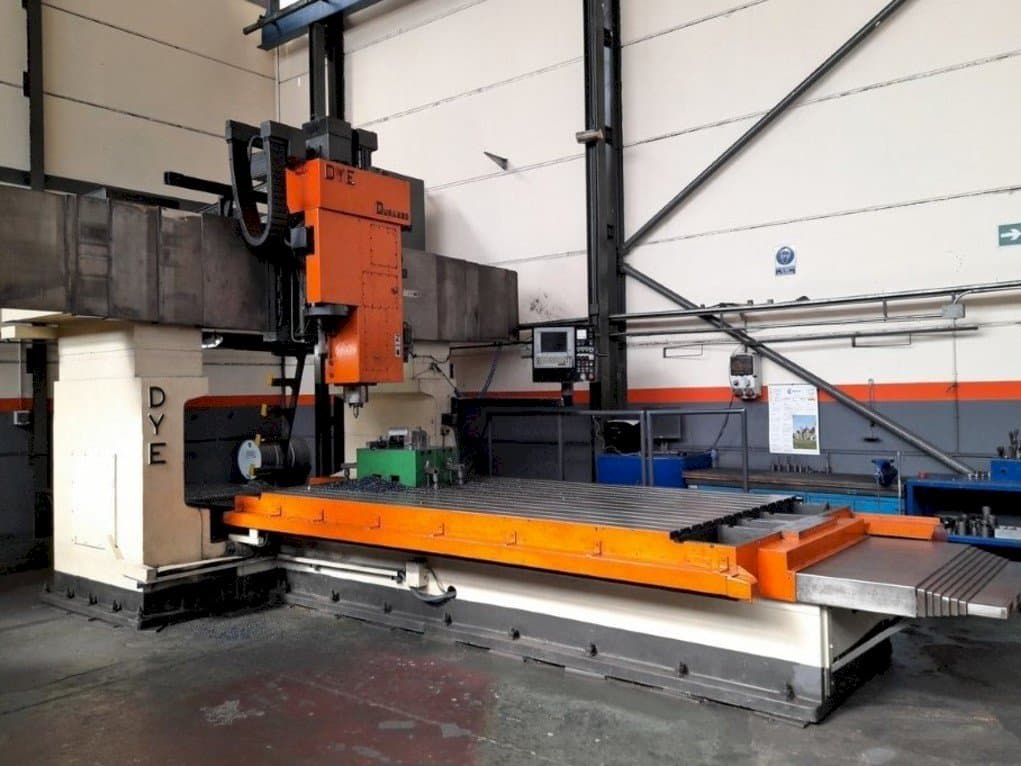

This DYE FB-3600 Milling machine was built in 1999 and has been retrofitted in 2017. It operated through a Selca S3040L control unit, replaced in 2007. This 3 axis machine has a spindle speed up to 2000 rpm, a table dimension of 4350 x 1850 mm and a double chip conveyor. Always good maintenance.

Overview

brand: DYE
year: 1999
MODEL: FB-3600
application type: Milling
Location: Spain
machine type: CNC Milling Machine
availability: Sold
control unit brand: SELCA

Technical Information - DYE FB-3600

General Data

Measurements width: 9700 mm
Measurements depth: 6000 mm
Measurements height: 5600 mm

Control Unit

Model: S3040L
Brand: SELCA

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3600 mm
Y-AXIS Movement: 2800 mm
Z-AXIS Movement: 1570 mm

Workpiece

Workpiece weight: 12000 KG

Table

Outer length: 4350 mm
Outer width: 1850 mm

Tools

Type of tool holder: ISO 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns: 2800 mm
- - Max. Milling width: 2800 mm
- - Double chip conveyor
- - Range of tools and accesories
Qualitative Machine Benefits:
- - Control unit replace in 2007
- - Retrofitting in 2017
- - Always good maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
