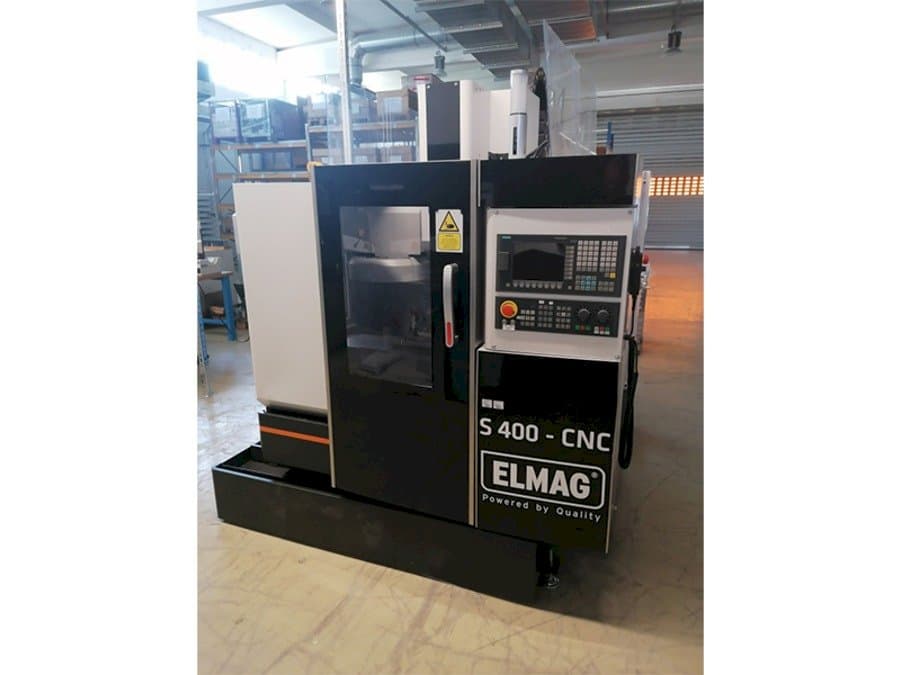

ELMAG S400-CNC Vertical Machining Center

Show in original language

This ELMAG S400-CNC Vertical Machining Center was manufactured in Austria in the year 2019. It counts with approximately 500 working hours. This 3 axis machine operates through a Siemens SINUMERIK 808D control unit. It incorporates a spindle speed range between 60 - 6000 rpm.

Overview

brand: ELMAG
year: 2019
MODEL: S400-CNC
production hours: 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - ELMAG S400-CNC

General Data

Measurements width: 1870 mm
Measurements depth: 1520 mm
Measurements height: 2000 mm
Machine weight: 1450 kg

Control Unit

Model: Sinumerik 808D
Brand: SIEMENS

Main drive

Spindle speed range: 60 - 6000 1/MIN
Tool taper: BT 30
Main motor power: 3.7 kW
Number of axis: 3

Movement

X-AXIS Movement: 8000 mm
Y-AXIS Movement: 8000 mm
Z-AXIS Movement: 6000 mm

Table

Outer length: 600 mm
Outer width: 250 mm

Tools

Type of tool holder: BT 30

Media

Main electronic connection: 400 V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from spindle end to table top: 60 - 460 mm
- - Distance from spindle center to column guide way: 315 mm
- - Table travel: 400 x 250 mm
- - T - slot: 3 - 14 mm - 75 mm
- - Feed motor: 1. 5 kw
- - Coolant pump: 40 w

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
